Home > Products> Multi Gas Detector> Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection

Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection

Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection
Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX
Model Number: SG100-D
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase Packing
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 100 pieces/day
Get Best Price Contact Now
Detail Information
Gas Detected: O2, NH3, CO2 Measure Range And Resolution: O2: 0-25%VOL, NH3: 0-200PPM, CO2 0-5000PPM
Accuracy: ≤±2%FS Or ±10%（Depends On Sensor） Protection Grade: IP66/68
Wireless: Optional LORA, 4G Working Temperature: -20℃～50℃
Size: 178*129*70mm Weight: 1.4kg
Relay: 3 Relays, Including Low/high/fault Alarm Relay（Optional） Explosion-proof Grade：: IECEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb ； ATEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb
Highlight:

IP66/68 multi gas detector

,

fixed O2 NH3 CO2 detector

,

multi gas detector with protection

Product Description

Fixed Multi Gas Detector for Mine Industry - CO and LEL Concentration Monitoring
Key Features
  • Simultaneous detection of O₂, NH₃, CO₂ gases
  • IP66/68 protection rating for harsh environments
  • Optional wireless connectivity (LORA, 4G)
  • Hot-swappable sensor design for easy maintenance
  • Magnetic wand operation for safe use in explosive areas
  • IECEx and ATEX certified for hazardous locations
Technical Specifications
Attribute Value
Gas Detected O₂, NH₃, CO₂
Measurement Range O₂: 0-25%VOL, NH₃: 0-200PPM, CO₂: 0-5000PPM
Accuracy ≤±2%FS or ±10% (sensor dependent)
Protection Grade IP66/68
Working Temperature -20℃ to 50℃
Dimensions 178 × 129 × 70mm
Weight 1.4kg
Explosion-proof Rating IECEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb
ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb
Product Overview

The SG100-D series is an intelligent fixed multi-gas detector with hot-swappable sensors for easy maintenance. Designed for continuous monitoring of up to 4 gases in a single unit, it features magnetic wand operation for safe menu navigation in explosive areas.

Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 0

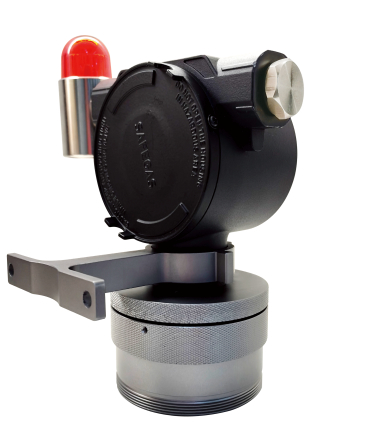

SG100-D Multi Gas Detector
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 1

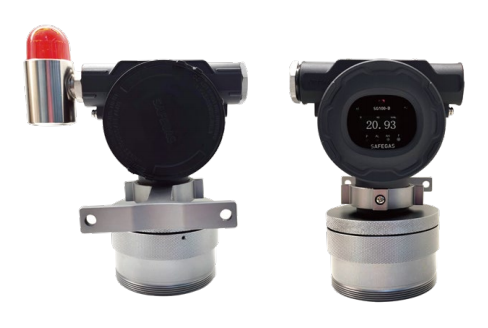

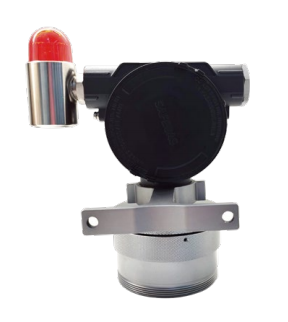

SG100-D Side View
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 2

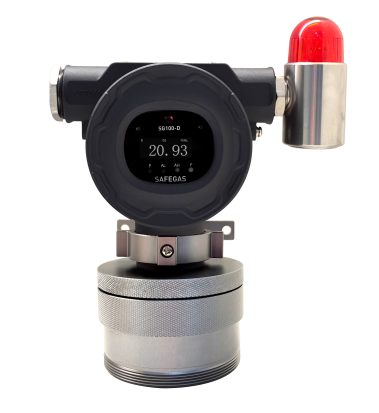

SG100-D Front View
Product Advantages
  • Modular design: Replace sensor chamber without disassembling entire unit
  • Easy calibration: One-person operation using calibration cap
  • Quick installation: Mounting plate accessory for fast deployment
  • Multiple outputs: Standard 4-20mA, RS485 Modbus, and relay signals
  • Wireless options: LORA and 4G transmission available
  • Dust resistant: Effective filtration of 3μm particles
Standard Configuration
  • Gas detector (1 piece)
  • Magnetic wand (1 piece)
  • User manual (1 piece)
  • Certificate/Warranty card (1 piece)
  • Mounting plate with hardware kit
Application Case: Shipyard Gas Detection

Solution for confined space monitoring in shipyards requiring simultaneous detection of oxygen and combustible gases with dust filtration and wireless data transmission:

  • SG100-D-A model with imported O₂ and combustible gas sensors
  • Built-in Lora wireless module for data transmission
  • Added PM2.5 dust filter for heavy dust environments
  • Sound and light alarm system
Fixed Multi Gas Detector for O2 NH3 CO2 with IP66/68 Protection 3
SG100-D Application in Shipyard Environment
Quality Assurance
  • 25+ years R&D experience in gas detection
  • ISO9001 and ISO45001 certified manufacturing
  • IECEx and ATEX certified products
  • 80,000 units annual production capacity
  • 7×24 professional technical support
Frequently Asked Questions
Q: What gases can this detector monitor?
A: The SG100-D can detect oxygen (O₂), ammonia (NH₃), carbon dioxide (CO₂), and combustible gases (LEL) depending on configuration.
Q: What does the ppm unit mean?
A: ppm (parts per million) indicates gas concentration volume. For example, 30ppm NH₃ means 30 volumes of ammonia per million volumes of air.
Q: How often does the detector need calibration?
A: Calibration frequency depends on usage and environment, but the hot-swappable sensor design makes calibration quick and easy.
