Name: Portable 6-Gas Detector for LEL CO2 CO H2S O2 SO2 Wireless TransmitSolution
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SKY3000
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Type:	LEL, CO2, CO, H2S, O2, SO2	Sampling Method:	Pump Suction
Measure Range:	LEL 0-100%LEL, CO2 0-50000PPM, CO 0-500PPM, H2S 0-100PPM, O2 0-30%VOL, SO2 0-20PPM	Resolution:	1%LEL(LEL), 100PPM(CO2), 1PPM(CO), 0.1PPM(H2S, SO2), 0.1%VOL(O2)
Certification:	CE,ATEX,IECEx,ISO	Language:	Chinese/English/ Russian /Customized
Alarm Mode:	Alarm By Buzzer , LED And Vibration	Power:	With 3.7V Rechargeable Lithium Battery
Working Hour:	More Than 15 Hours(with Pump On)	Data Record:	Can Store 100000 Sets Data
Single Package Size::	34cm24cm14cm	Single Gross Weight::	1.64kg
Highlight:	6-gas portable detector with 15H battery , multi gas detector for LEL CO2 CO , H2S O2 SO2 gas detector portable

Product Description

Portable LEL, CO2, CO, H2S, O2, SO2 Gas Detector 6 In 1 Analyzer

IECEX and ATEX certified multi-gas detector with comprehensive safety features and advanced detection capabilities.

Technical Specifications

Feature	Specification
Sampling method	Pump suction
Gas type	LEL, CO2, CO, H2S, O2, SO2
Measure range	LEL 0-100%LEL, CO2 0-50000PPM, CO 0-500PPM, H2S 0-100PPM, O2 0-30%VOL, SO2 0-20PPM
Resolution	1%LEL(LEL), 100PPM(CO2), 1PPM(CO),0.1PPM(H2S, SO2), 0.1%VOL(O2)
Response time	≤10 seconds
Precision	≤±1%F.S
Language	English (Other languages can be customized)
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched
Display	Monochrome graphics (160 x96), screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Protection grade	IP67/IP68
Working temperature	-20ºC~+50ºC
Humidity	0~90%RH(no condensation)
Environmental pressure	86~106Kpa
Size	15784.559.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)
Bluetooth function (Optional)	Gas Concentration can be transmitted to the mobile phone or PC in real time

Product Overview

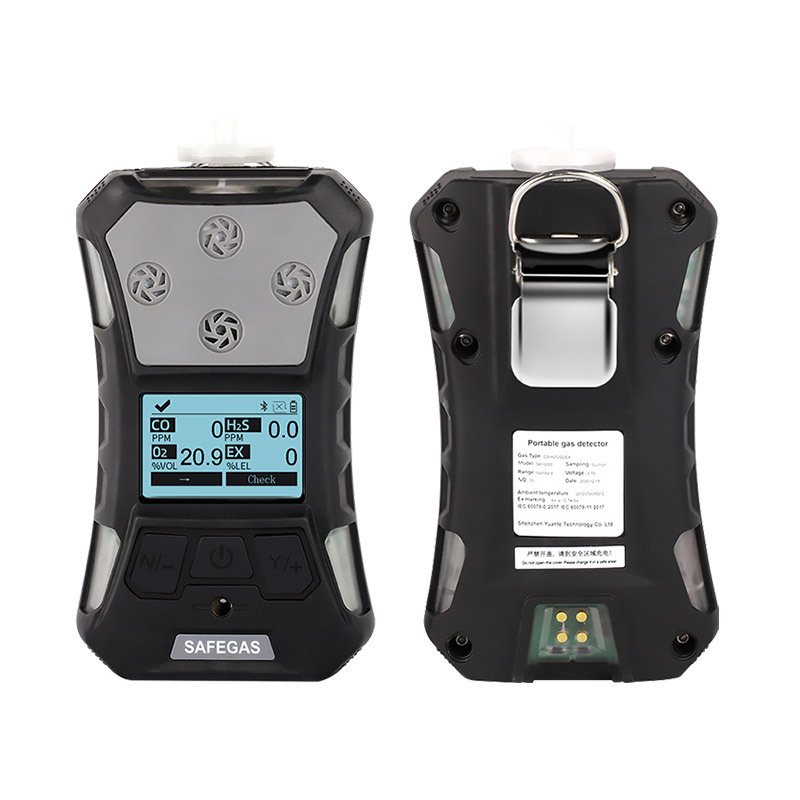

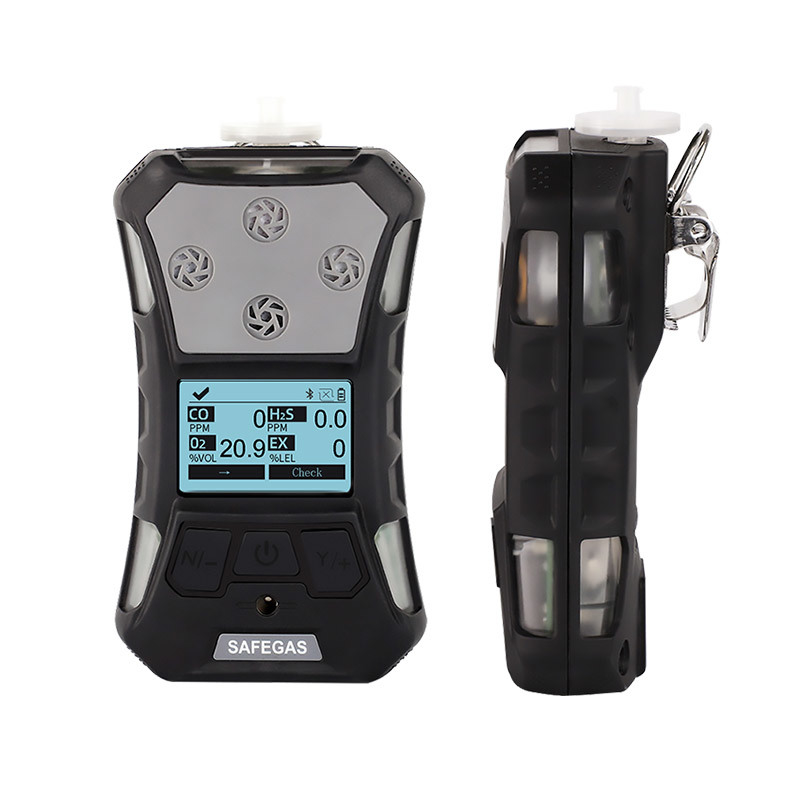

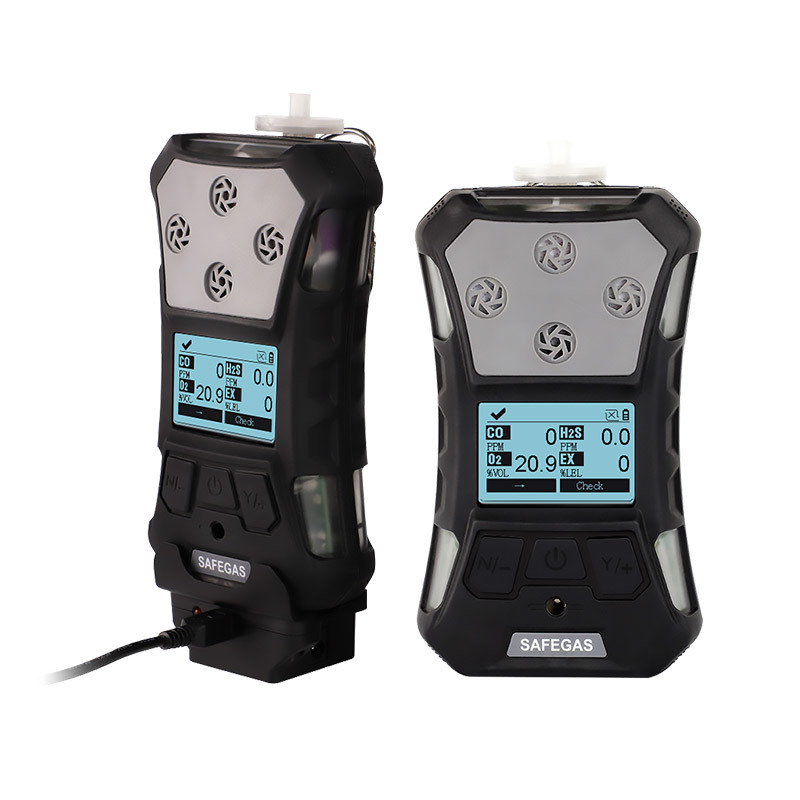

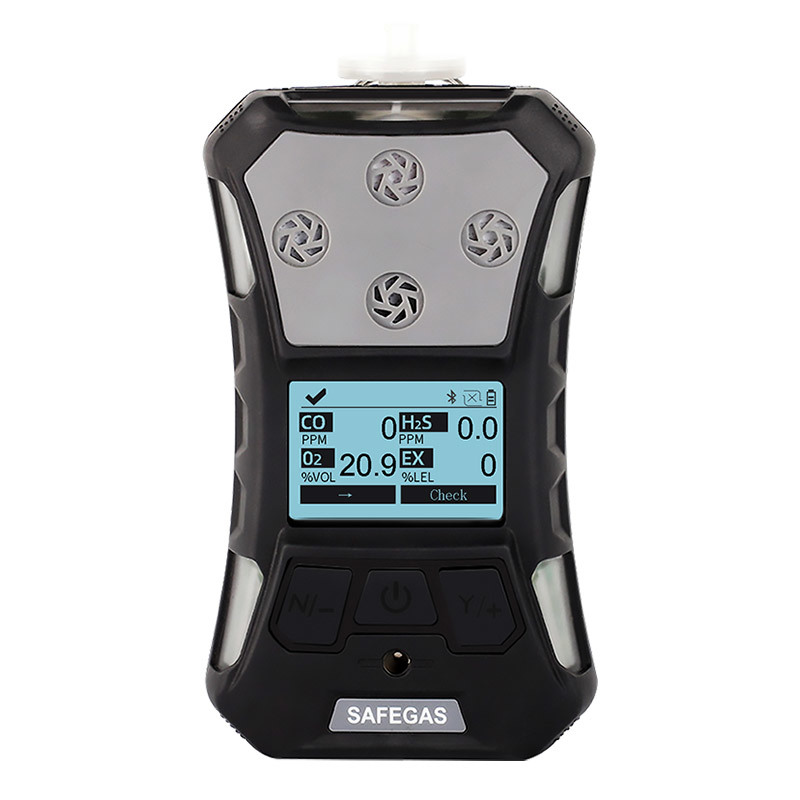

SKY3000 Portable Gas Detector

The SKY3000 series is a high-performance portable gas detector capable of simultaneously detecting multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) with man down alarm functionality.

This device features user-friendly operation including one-key security detection, one-key storage, automatic image flipping, and man down alarm functionality. With optional Bluetooth transmission, safety personnel can obtain real-time data and alarm status.

Certified with international IECEX, ATEX explosion-proof standards and Chinese explosion-proof certification, the SKY3000 has passed antistatic tests with protection level reaching IP67. Its modular design enables faster detection while the compact ergonomic design ensures easy portability.

The instrument primarily operates in suction mode, but can automatically switch to diffusion sampling when the air pump fails or in emergency situations, providing enhanced protection.

With an explosion-proof grade of Ex ia IIC T4 Ga, the SKY3000 is suitable for explosive gas mixture zones 0, 1, and 2 in factories with grades ⅡA, ⅡB, and ⅡC and temperature groups T1~T4.

Key Advantages

Rugged and durable construction
Explosion-proof circuit design for safety and reliability
Multiple security protection features
Large screen display with flexible detection system
Multiple filtering devices

Product Images

Applications

This device is widely used in these fields:

Petrochemical & Chemical Industry
Municipal Engineering & Utilities
Agricultural & Environmental Protection
Electronics
Food & Pharmaceutical Industry

Application Photos

Standard Accessories

Gas detector - 1 piece
12V/1A DC power adapter - 1 piece
USB cable - 1 piece
User manual - 1 piece
Warranty card - 1 piece
Filter - 1 piece
Aluminum suitcase - 1 piece

Application Case Study

Thailand XX Bottling Company Detects Toxic and Harmful Gases in Confined Spaces of Tank Pipelines

SKY3000-M4 Application Case

Detection Requirements:

The customer needed to detect toxic and harmful gases in confined spaces of tank pipelines, primarily CO/H2S/EX/O2, to prevent personnel hypoxia, poisoning, and gas explosions.
Required equipment with high explosion-proof and protection level.
Equipment needed to be pump-suction type with optional hose for extended sampling.
Required imported sensors with high detection accuracy.

Solution:

Gas detector: SKY3000 equipped with imported CO/O2/H2S/EX sensors.

Solution Features:

All recommended devices met the customer's needs.
Device has international IECEx and ATEX certifications, reaching Ex da ia IIC T4 Ga explosion-proof grade with IP67 protection level.
Provided 3-meter hose for extended detection before entering confined spaces.
Device includes data storage, recording, and export functionality for easy data management and synchronization with inspection records.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/EMC/IECEX
Model Number:	SKY3000

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Aluminum Suitcase
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	1000 pieces per month
