CO NH3 H2S 3 in 1 Detector IECEx Certified Multi Gas Detector with IP66/IP68 Protection Grade and Back Clip
Product Specification
| Feature |
Description |
| Sampling method |
Diffusion suction |
| Gas type |
CO, NH3, H2S |
| Measure range |
CO 0-1000PPM, NH3 0-100PPM, H2S 0-100PPM |
| Resolution |
CO 1PPM, NH3 0.1PPM, H2S 0.1PPM |
| Response time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (depends on the specific sensor) |
| Language |
Chinese/English |
| Automatically test and calibrate after power-on |
Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Display |
Segment code LCD display |
| Calibration platform |
Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record |
1000 sets data records and 100 sets events records |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red bar, as well as on-screen alarm status indication, alarm lock; Diagnostic alarms and battery undervoltage alarms, man down alarms, all sensor alarm value is settable. |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours |
Standby time 18h, charging time <6h |
| Wireless transmission |
Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade |
IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma
(EU regulations): 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade |
IP66/IP68 |
| Working temperature |
-20°C~55°C |
| Humidity |
0-95%RH (non-condensing) |
| Environmental pressure |
86～106Kpa |
| Size |
113*60*32mm (length * width * height) |
| Weight |
200g (with lithium battery) |
Product Overview
MicMeta is a multi-gas detector with IP66/IP68 protection level. Under normal circumstances, Micmeta can detect 1-4 gases simultaneously. In the case of two conventional range gases CO and H2S, if the gases contain CO and H2S, then Micmeta can detect a total of 5 gases.
Micmeta has obtained explosion-proof certifications from IECEX, ATEX, and China Explosion-proof, with an explosion-proof level of Ex ia IICT4 Ga/Ex ia I Ma, and can be used in both Zone 0 and Zone 1.
Micmeta features an LCD screen with display interface supporting Chinese/English language switching and gas unit conversion. It includes two-level sound and light alarm with user-settable alarm points. Optional docking station enables easy bump test, calibration, configuration and data recording.

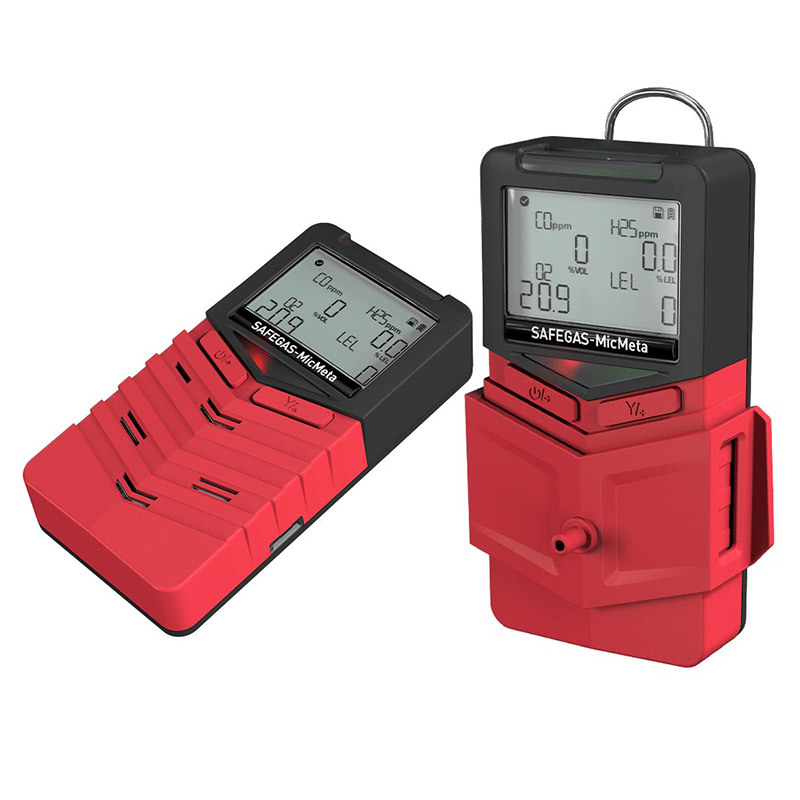

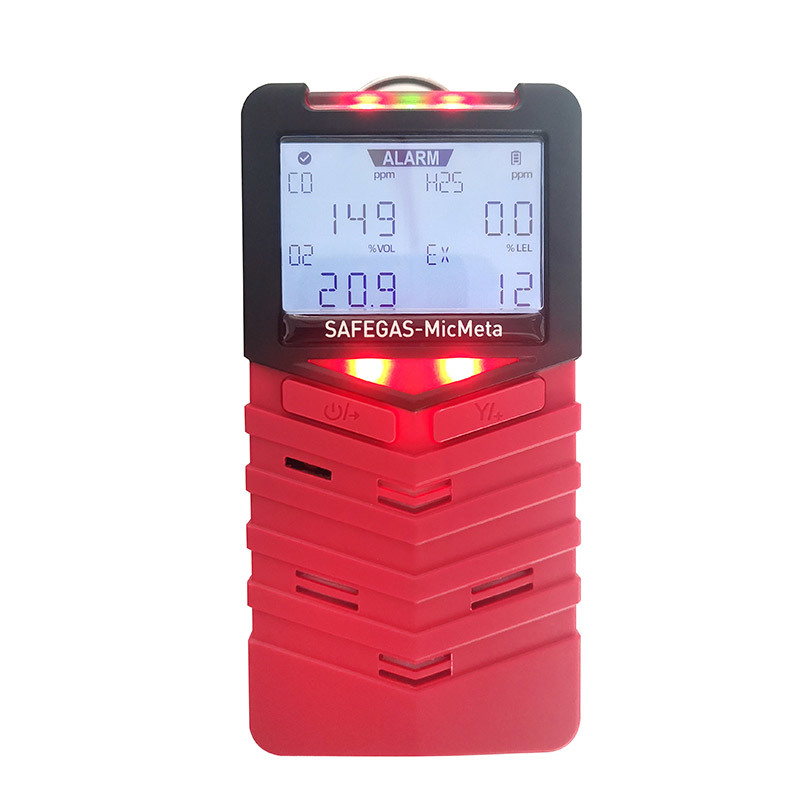

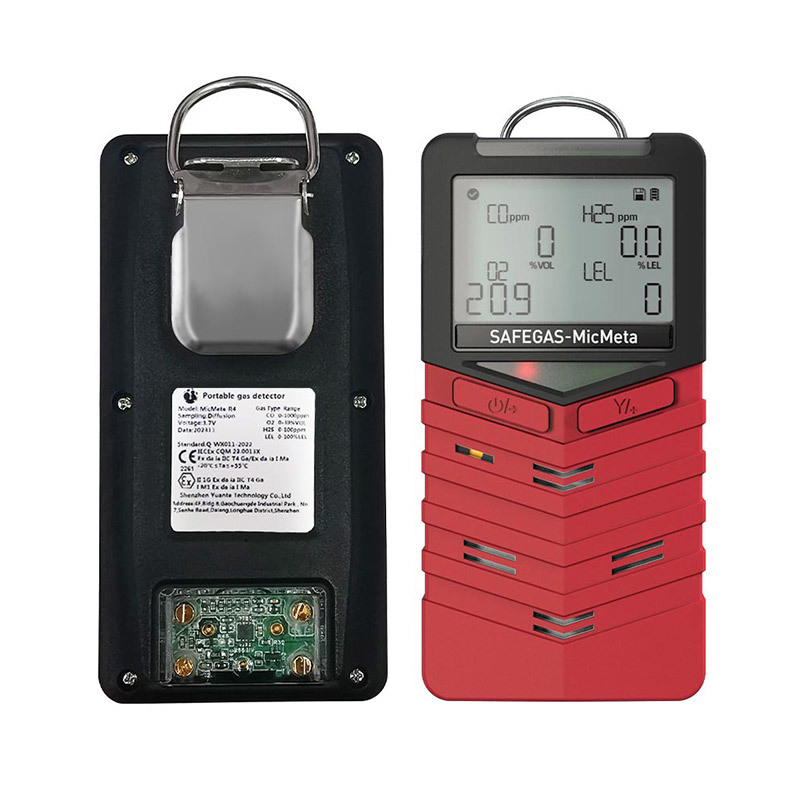

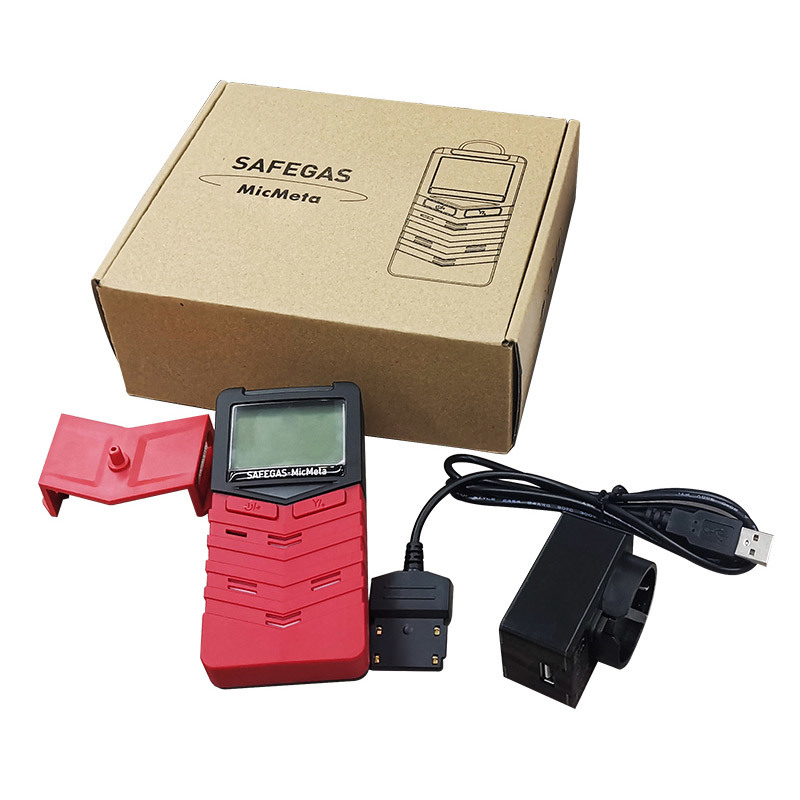

Product Images
Detectable Gases
Micmeta can detect 1-5 gases, including:
Why Choose Us?
- R&D team experience: Over 25 years
- Company certification: ISO9001, ISO45001
- Product certification: IECEx (the only one in China), ATEX, CE
- Delivery: 5-7 days
- Yearly capacity: 80,000 units
- Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product Line
Our products contain portable types, fixed types and controller panels:
- Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
- Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
- Controller panels: YT-1100H, YT-1600H
Certifications
IECEX
ATEX
CE
TEST Report
ISO 9001
ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands like Honeywell, MSA, RAE, but with competitive pricing.
Company Partners
Huawei, Cocacola, Samsung, Nestel and more.
Frequently Asked Questions
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.
Q2: What does a gas detector detect?
A2:
- Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
- Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
