Build in Pump Fixed CO Detector RS485 Optional Cloud Platform Wireless Transmit
Product Overview
The YT-98H is a high-end fixed gas detector designed for critical gas monitoring applications, particularly in the oil and gas industry.
Specifications
| Parameter | Specification |
| Gas Detected | CO |
| Detection principle | Electrochemical |
| Install method | Wall-mounted, piping type, flow-type |
| Measure Range | 0-100PPM |
| Resolution | 0.1PPM |
| Accuracy | ≤±2-5%FS |
| Signal Output | 4-20MA, RS485, relay |
| Response Time(T90) | 15-30s |
| Recovery Time | ≤10S |
| Repeatability | ≤±1% |
| Display | 2.4-inch color display, resolution 320*240 |
| Operating language | English/Chinese |
| Temperature | -20ºC~55ºC |
| Humidity | 0-95%RH |
| Explosion-Proof | IECEX: Ex db IIC T6 Gb
ATEX: Ex db IIC T6 Gb |
| Degree of protection | IP66 |
| Alarm mode | Sound, light |
| Operating time | 24h |
| Dimensions | 43*27*15cm |
| Weight | 4.6kg |
Key Features
1. Safety Certifications
Certified under IECEx and ATEX standards, the YT-98H series is approved for deployment in explosive atmospheres, ensuring safe operation in hazardous zones.
2. Detection Capabilities
Multi-Gas Detection: Supports simultaneous monitoring of up to 6 toxic gases (e.g., carbon monoxide, hydrogen sulfide) through configurable single- or multi-gas sensing.
High-Efficiency Pump: Equipped with a 12,000+ hour lifespan vacuum pump for rapid gas sampling. Enables swift response in open or confined spaces, enhancing personnel safety by detecting gas concentration changes in real time.
3. Connectivity & Integration
Wired Protocols: Supports 4-20mA, relays, HART, and Modbus for seamless compatibility with existing and modern control systems.
Wireless Capability: Optional wireless modules enable remote data access via mobile devices, laptops, or cloud platforms, empowering real-time decision-making.
4. User-Centric Features
Intuitive Interface: 2.4-inch HD color screen with bilingual (Chinese/English) menus and visual icons ensures clear status monitoring.
Customizable Alerts: Adjustable alarm thresholds and unit conversions for individual gases.
Safe Remote Control: Infrared remote operation eliminates the need to open the enclosure, maintaining system integrity.
5. Robust Protection & Accessories
Environmental Resilience: Rated IP65 with explosion-proof, lightning-resistant, anti-static, and surge-protected housing for harsh conditions.
Optional Add-Ons: Audible/visual alarms, high-temperature flue gas pretreatment systems, 2-8km wireless transceivers or 2G/4G cloud-enabled modules for remote data management.

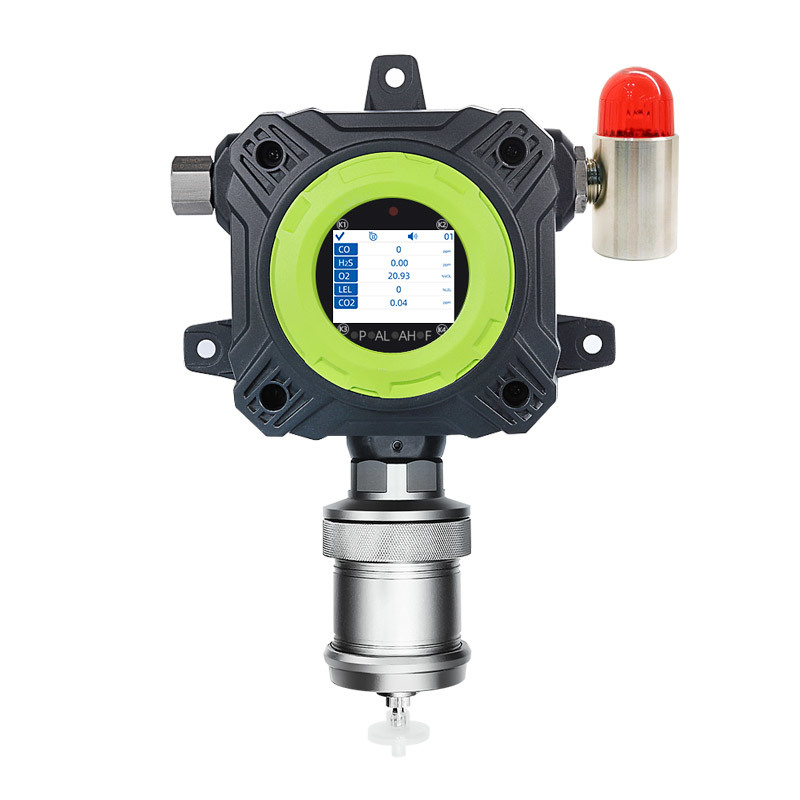

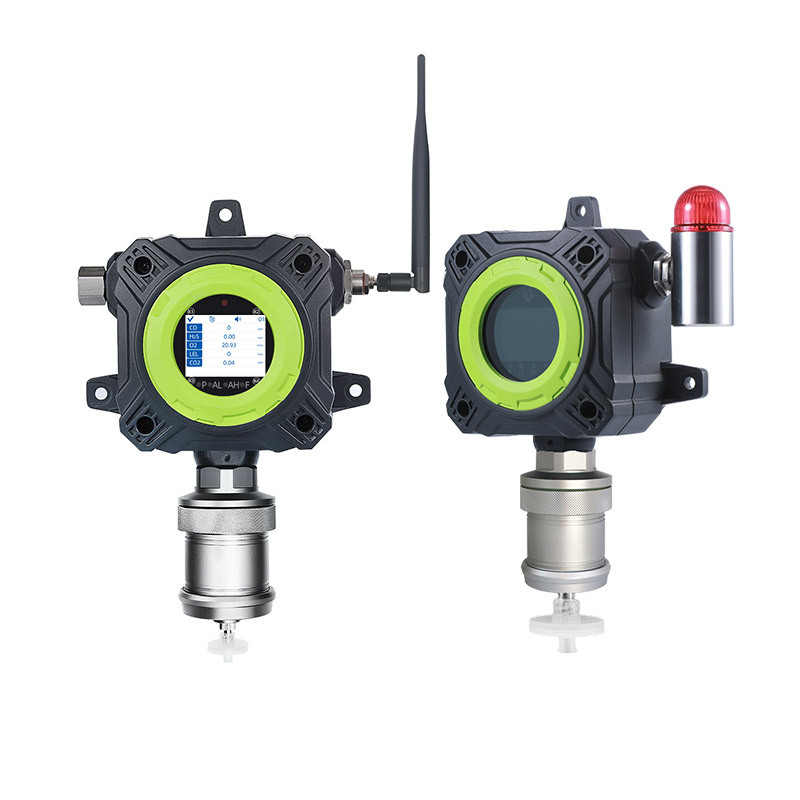

Product Images - YT-98H (with display)

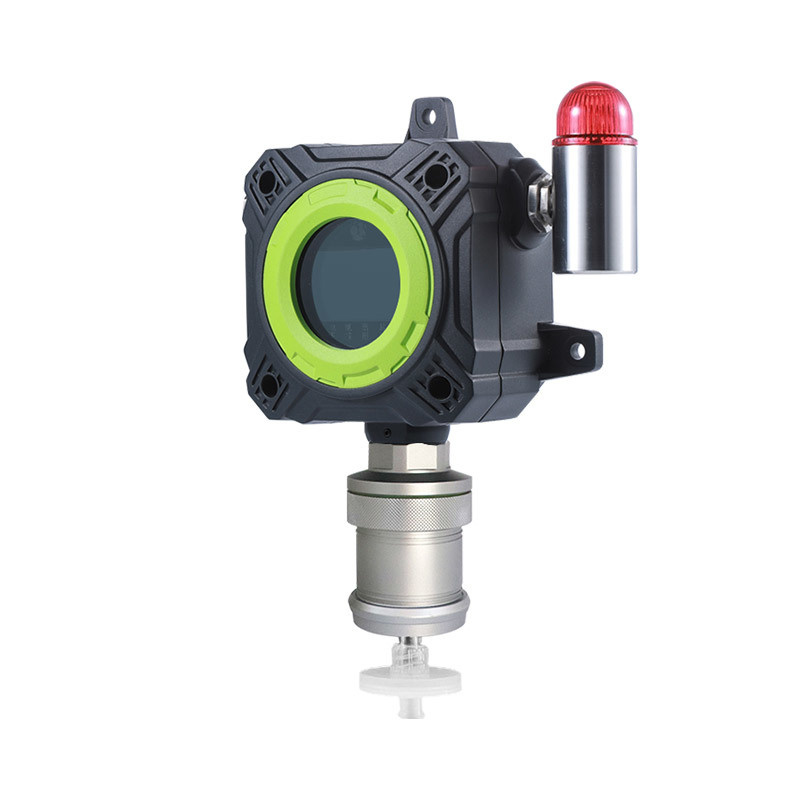

Product Images - YT-98H-A (with display and alarm light)
Applications
- Petrochemical & Chemical Industry
- Municipal Engineering & Utilities
- Agricultural & Environmental Protection
- Electronic
- Food & Pharmaceutical Industry
Why Choose Us?
- R&D team experience: over 25 years
- Company certification: ISO9001, ISO45001
- Product certification: IECEx (the only one in China), ATEX, CE
- Delivery: 5-7 days
- Yearly capacity: 80,000 units
- Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product Line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEx and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company Partners
Huawei, Cocacola, Samsung, Nestel and so on.
