Gas Detected: | O2, CO2, CO, NO, NO2, SO2, VOC, Etc To Be Specified According To Application | Detection Principle: | Depend On Gas Type And Application |
---|---|---|---|
Measure Range: | Specified According To Application | Resolution: | Specified According To Application |
Display: | Gas Formula, Real-time Data, Real-time Curve, Battery, Time, Pump Condition, Wireless Status, Printer Status | Alarm: | Buzzer, Red LED And Alarm Status On The Display, Fault Alarm, Low Battery Alarm |
Data Storage: | Independent SD Memory Card, Standard 32G, Measurement Data Can Be Record Automatically, Customizable Record Time Interval | Data Transmission (Optional): | RS485 Signal Output, USB Interface Data Transmission, With PC Software, Can Download Storage, Analyze And Print Data |
Print Function (Optional): | Optional With Internal Portable Printer Or External Bluetooth Printer | Print Content (Optional): | Date, Time, Gas, Concentration, Stat, Unit |
Warranty: | 12 Months | ||
Highlight: | built-in pump gas detector,multi-layer filtering gas detector,fast response gas detector |
Parameter | Details |
---|---|
Gas Detected | O2, CO2, CO, NO, NO2, SO2, VOC, etc to be specified according to application |
Detection Principle | Depend on gas type and application |
Measure range | Specified according to application |
Resolution | Specified according to application |

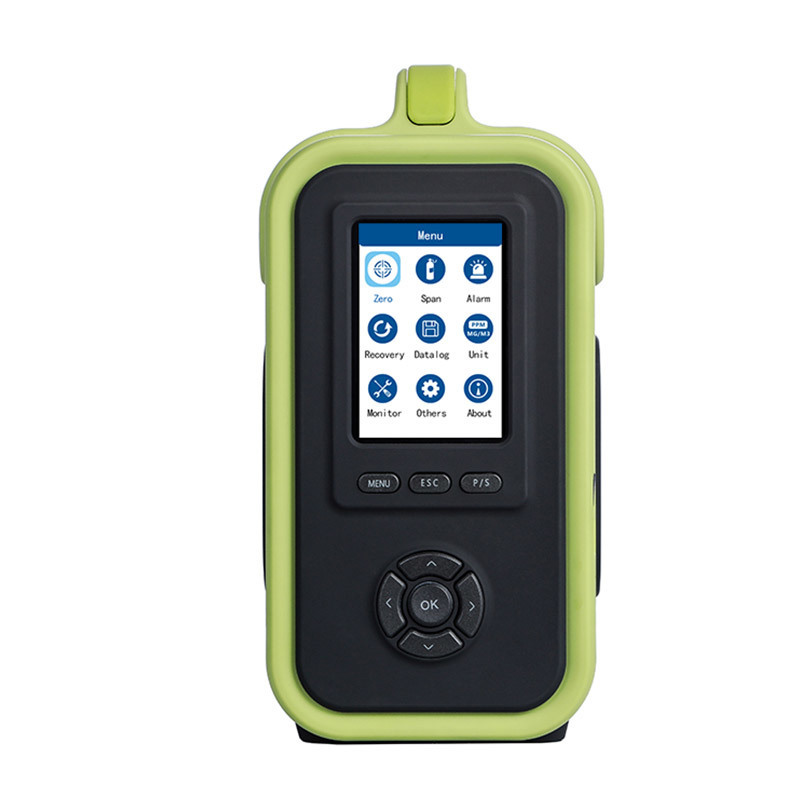

Display | Gas formula, real-time data, real-time curve, battery, time, pump condition, wireless status, printer status |
Alarm | Buzzer, red LED and alarm status on the display, fault alarm, low battery alarm |
Data storage | Independent SD memory card, standard 32G, measurement data can be record automatically, customizable record time interval |
Data transmission (Optional) | RS485 signal output, USB interface data transmission, with PC software, can download storage, analyze and print data |

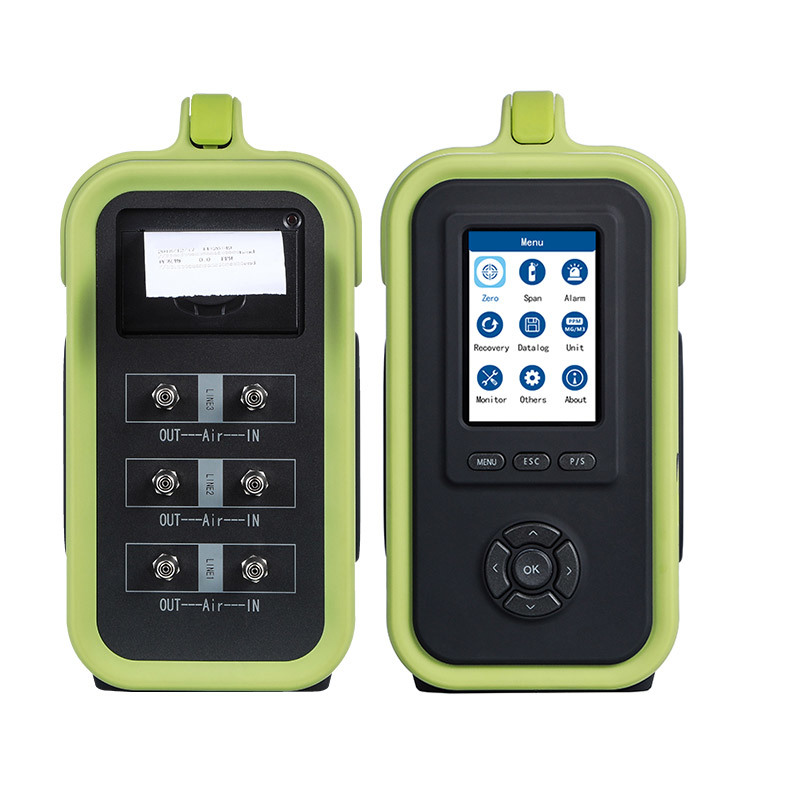

Print function (Optional) | Optional with internal portable printer or external bluetooth printer |
Print content (Optional) | Date, Time, Gas, Concentration, Stat, Unit |
Charger | Standard Micro-USB charging port. With 9V/2A charger |
Language | Chinese/English |
Network frequency | 2.4G high frequency |
Wireless transmission distance | Bluetooth is less than 10m, and WIFI outdoor single point is less than 500m |
Battery | Large capacity rechargeable lithium battery, 5200mAh working hours are more than 32h with single gas and 24h with six gases together |
Precision | ≤±2%F.S (Higher precision can be customized) |
Pump flow rate | 500ML/Min |
Working Humidity | 0~95%RH (no condensation) (optional filter device is available if high humidity) |
Temperature | -40℃~+70℃, Optional gas sampling gun, can detect up to 1200 degrees gas concentration |
Screen | 3.5-inch hd LCD screen with resolution 320*480 |
IP grade | IP66 |
Explosion-proof | Ex ic IIC T3 Gc |
Warranty | 12 months |
Size | (H*W*D) 260*230*120mm |
Weight | 3700g |
Established in 2010, Shenzhen Yuante Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
For years, Yuante always insists on the management concept: Market is orientation; Innovation is motivation; Quality to survival; Development to growth. With friendly, open and strict corporate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team.
The essence of a detector is the accuracy and faster response. Depending on years of measurement experience and unique solutions, through independent research and development, cooperative development and learning overseas latest technology, Yuante's products are advanced beyond the domestic brands and ahead of the global brands.
