Name: 4 In 1 Fixed Gas Detector Explosion-Proof Continuous Monitoring with IP66/68 Protection for Industrial Use
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SG100-D
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Detected:	CO/H2S/O2/LEL	Measure Range And Resolution:	LEL:0-100%LEL，O2:0-30%vol,CO:0-1000ppm,H2S:0-100ppm
Accuracy:	≤±2%FS Or ±10%（Depends On Sensor）	Protection Grade:	IP66/68
Wireless:	LORA, 4G(Optional)	Working Temperature:	0℃～70℃（Catalytic Sensor）， -20℃～50℃（Electrochemistry Sensor）
Size:	17812970mm	Weight:	1.4kg (No Mounting Bracket ,alarm Light)
Relay:	3 Relays, Including Low/high/fault Alarm Relay（Optional）	Explosion-proof Grade：:	IECEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb ； ATEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb
Highlight:	Explosion-Proof Multi Gas Detector , Continuous Monitoring Fixed Gas Detector , IP66/68 4 In 1 Gas Detector

Product Description

SG100-D Series 4-in-1 Fixed Gas Detector

Intelligent hot-swappable fixed multi-gas detector for continuous monitoring of LEL, CO, H2S, and O2 gases in industrial environments.

Product Overview

The SG100-D series is an intelligent hot-swappable fixed multi-gas detector designed for easy maintenance after installation. This single unit continuously monitors four different gases simultaneously. Certified with IECEx and ATEX certifications, it achieves explosion level Ex db IIC T6 intrinsically safe grade. Featuring a magnetic wand design, it enables safe and convenient menu navigation in explosion-prone areas.

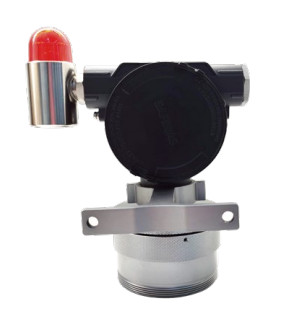

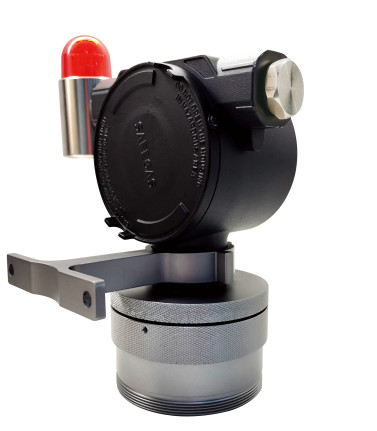

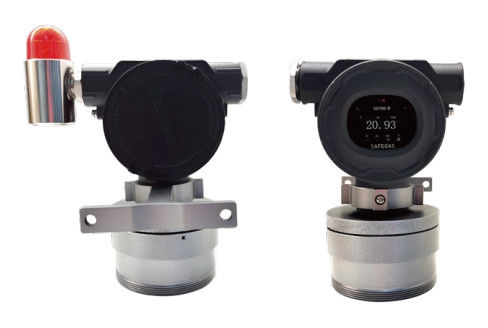

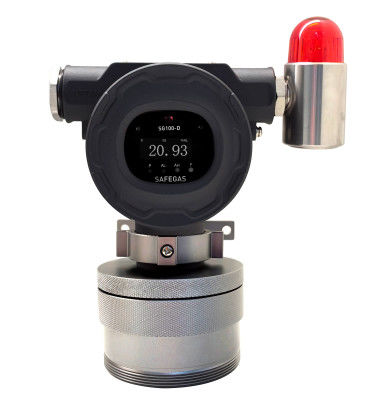

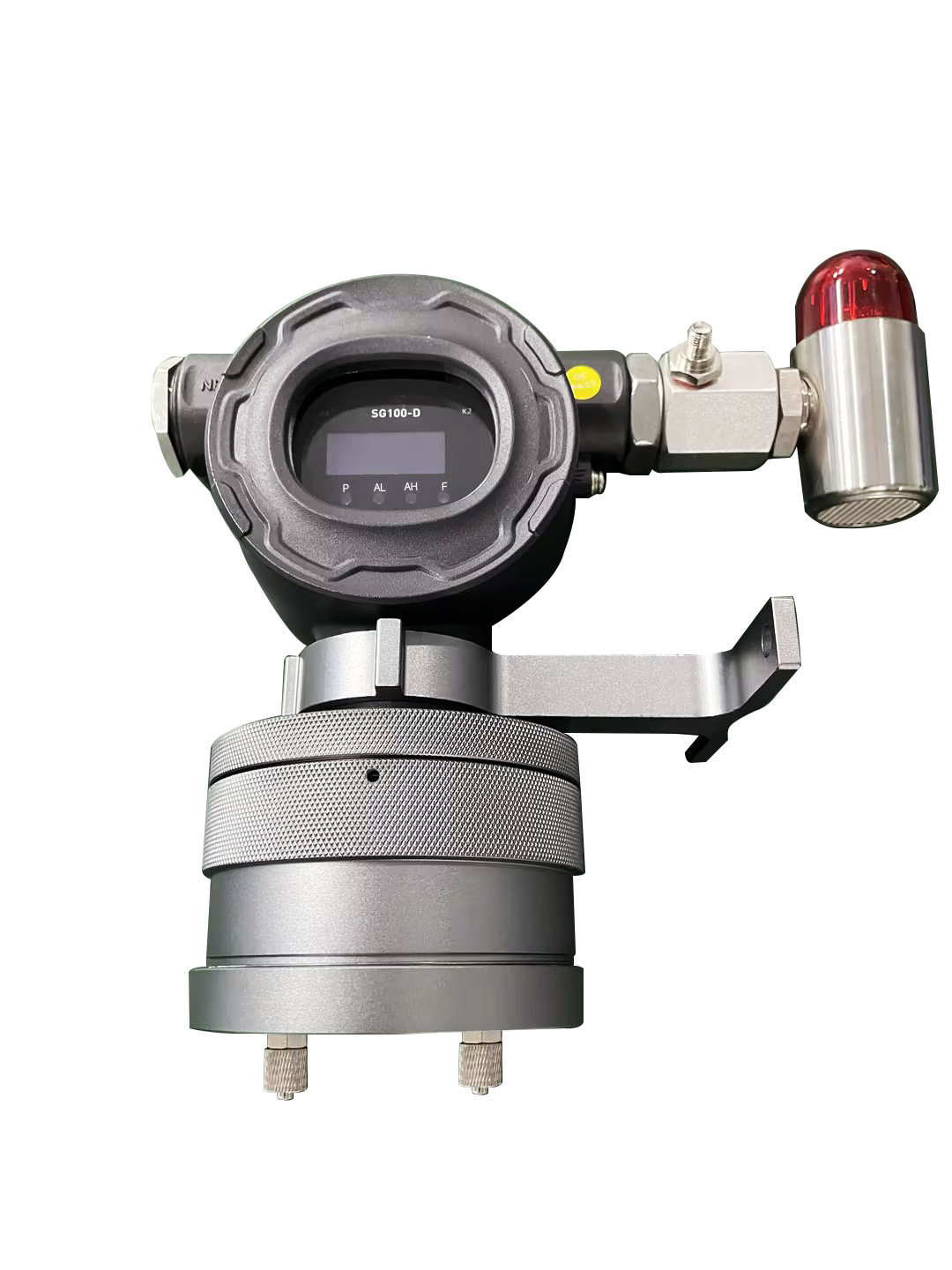

Product Images

Key Advantages

IP66/IP68 water and dust resistant rating
Standard 4-20 mA current signal (3 wires), RS485 Modbus, and 2 sets of relay signal output
Optional 4 sets of 4-20 mA current signal (3 wires)
Optional LORA and 4G wireless transmission modes
Modular chamber design - no need to disassemble entire unit or return for calibration
One-person calibration using calibration cap
Quick site installation with mounting plate accessory

Technical Specifications

Parameter	Specification
Detected Gases	CO / H2S / O2 / LEL
Detection Principle	Catalytic (LEL) / Electrochemical (O2/CO/H2S)
Measurement Range	LEL: 0-100%LEL, O2: 0-30%vol, CO: 0-1000ppm, H2S: 0-100ppm
Resolution	LEL: 1%LEL, O2: 0.1%vol, CO: 1ppm, H2S: 0.1ppm
Installation Method	Wall-mounted
Data Storage	1000 sets per channel, downloadable via GPC
Precision	≤±2%FS or ±10% (sensor dependent)
Response Time	T90 < 60s (sensor dependent)
Repeatability	±2% F.S
Operating Temperature	-40℃ to 70℃ (catalytic sensor), -20℃ to 50℃ (electrochemical sensor)
Operating Humidity	10-95% RH (non-condensing)
Explosion-Proof Rating	IECEx: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb
Protection Degree	IP66/IP68
Power Supply	12-30V DC
Dimensions	178 × 129 × 70mm
Weight	1.4kg (without mounting bracket and alarm light)
Certifications	CE, CNEX explosion proof certificate, CMC, IECEx, ATEX
Warranty	12 months

Standard Configuration

Gas detector: 1 piece
Magnetic wand: 1 piece
User manual: 1 piece
Certificate of Conformity/Warranty Card: 1 piece
Mounting plate: 1 piece
M4 bolt: 3 pieces
M4 nut: 3 pieces
M4 screw pad: 3 pieces
M4 flat mat: 3 pieces

Why Choose Safegas?

R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx (the only one in China), ATEX, CE
Fast delivery: 5-7 days
Annual production capacity: 80,000 units
Professional support: 24/7 customer service

Safegas specializes in environmental monitoring equipment and systems with 16 years of industry experience. Our core gas detector products serve multiple industries including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances. Through continuous development, Safegas has become a leading supplier of environmental monitoring solutions in domestic and international markets.

For years, Safegas has maintained the management philosophy: "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." Our corporate culture emphasizes collaboration, talent development, and customer-centric service to earn trust and support from clients worldwide.
