Portable Multi Gas Detector for Flue Gas Analysis
Professional-grade portable gas analysis instrument for detecting CO, H2S, NO, NO2, NOX, SO2 and other gases with high accuracy in flue gas environments.
Environmental Impact of Flue Gas
Flue gas, a complex mixture of gases and smoke, represents a significant source of air pollution in residential and industrial areas. Its composition includes water vapor, sulfur dioxide, nitrogen, oxygen, carbon monoxide, carbon dioxide, hydrocarbons, and nitrogen oxides.
Harmful gases and particulate matter in flue gas contribute to reduced air quality, smog formation, and increased incidence of respiratory and cardiovascular diseases. Regular detection and analysis of flue gas emissions are essential for environmental protection and regulatory compliance.
Product Overview: SKY8000 Portable Gas Analyzer
The SKY8000 is a versatile portable gas analysis instrument designed for industrial waste gas monitoring, air pollution source detection, boiler flue gas analysis, automotive exhaust testing, and indoor air quality assessment.
Key Features
- Flexible detection of 1-18 different gases
- Modular design with 1-3 selectable modules
- Independent air intake systems to prevent cross-gas interference
- 3.5-inch high-definition IPS LCD color screen with 150° viewing angle
- Chinese and English operation interface
- Advanced safety features: fall alarm, password protection, safety reminders
- Optional high-temperature probe for harsh environments
- Long-lasting lithium battery with extended standby time
- High-strength engineering material casing with ergonomic design
Product Advantages
- Modern exterior with 3.5-inch high-definition color display
- Modular internal structure for easy maintenance
- High customizability to meet specific requirements
- Flexible multi-pump system
- Multiple display modes for comprehensive data visualization
- Extensive data storage capabilities
- Multiple security protection features
- User-friendly interface and operation

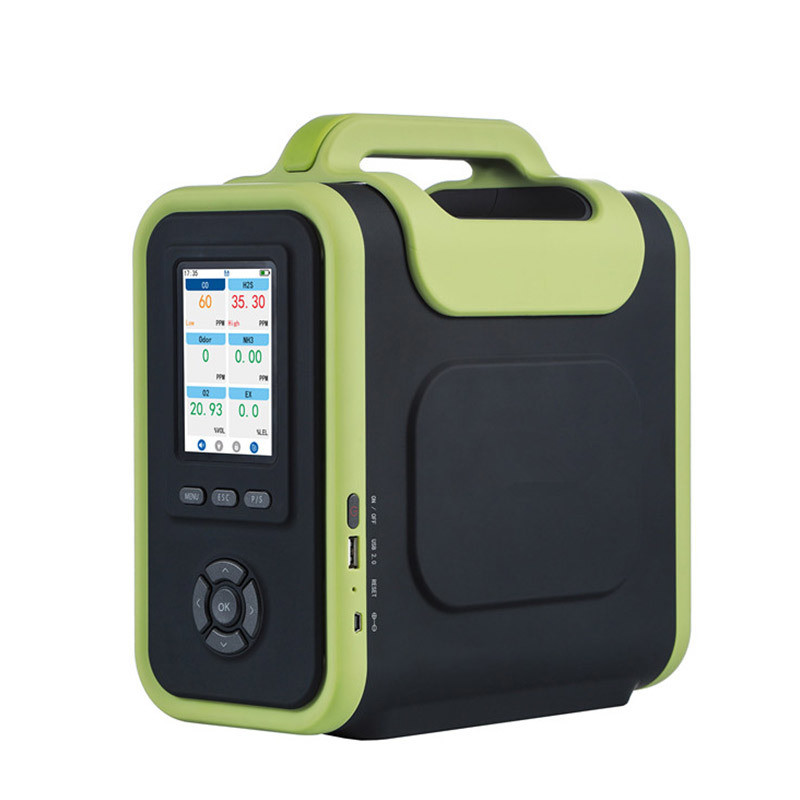

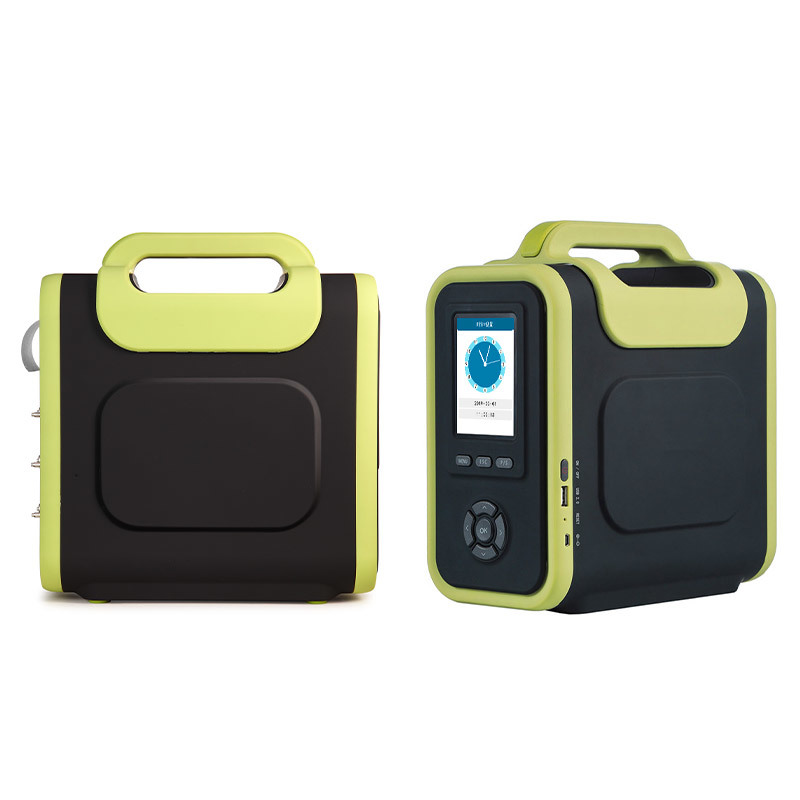

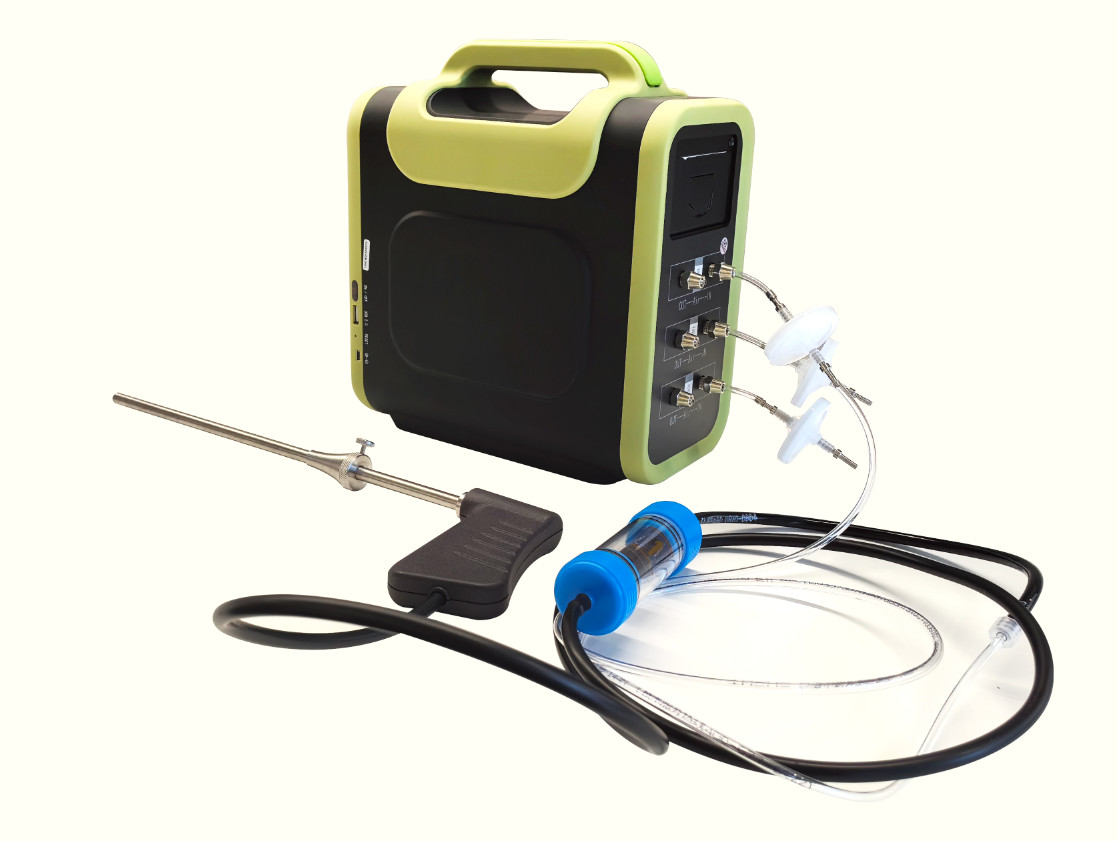

Product Images
Technical Specifications
| Sensors |
PID, Electrochemistry & Infrared Ray |
| Gas Detection |
CO, H2S, NO, NO2, NOX, SO2 and other gases (customizable) |
| Measurement Range |
Customizable |
| Resolution |
Customizable |
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screenshot status |
| Alarm System |
Buzzer, red LED and alarm status on display, fault alarm, pump abnormal alarm, low battery alarm |
| Data Storage |
Independent SD memory card (Max. 32GB), automatic measurement data recording with customizable time intervals |
| Data Transmission |
RS485 signal output, USB interface data transmission, compatible with upper computer software for data download, analysis and printing |
| Print Function (Optional) |
Internal portable printer or external Bluetooth printer |
| Charging |
Standard Mini-USB charging port with 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer) |
| Language |
Chinese/English |
| Wireless Network (Optional) |
Bluetooth |
| Probe Specifications |
High temperature probe gun required for flue gas environments, resistant to 600°C or 1000°C temperatures. Available lengths: 0.3m, 0.7m and 1m. |
Standard Accessories
- User manual
- Certificate/warranty card
- 8G SD card (larger capacity available by customization)
- Charging adapter
- Water trap filter
- Intake sampling probe
- 1000mm hose
- Protective suitcase (non-toxic, odorless, explosion-proof, waterproof, heat-resistant, corrosion-resistant)
Optional Accessories
- Built-in thermal printer
- High temperature flue gas detector set
Why Choose Our Products
- R&D team experience: Over 25 years in gas detection technology
- Company certifications: ISO9001, ISO45001
- Product certifications: IECEx (the only one in China), ATEX, CE
- Fast delivery: 5-7 days
- Production capacity: 80,000 units annually
- Professional support: 7*24 hours service from experienced sales staff
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.
Product Line
Our comprehensive product range includes portable detectors, fixed systems, and controller panels to meet diverse industrial needs.
Portable Types
Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed Types
YT-95H, YT-98H, YT-96H, SG100, SG200
Controller Panels
YT-1100H, YT-1600H
Certifications
Our products meet international standards with certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. We offer quality comparable to international brands like Honeywell, MSA, and RAE at competitive prices.
Our Clients
We are proud to serve leading companies including Huawei, Coca-Cola, Samsung, Nestlé and many others.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the minimum order quantity (MOQ)?
Typically 1 piece.
How about the quality of your products?
Our products utilize imported sensors and components and are fully certified to meet international standards.
How long is the warranty period?
The warranty period is 1 year from factory date, with lifetime maintenance support provided.
