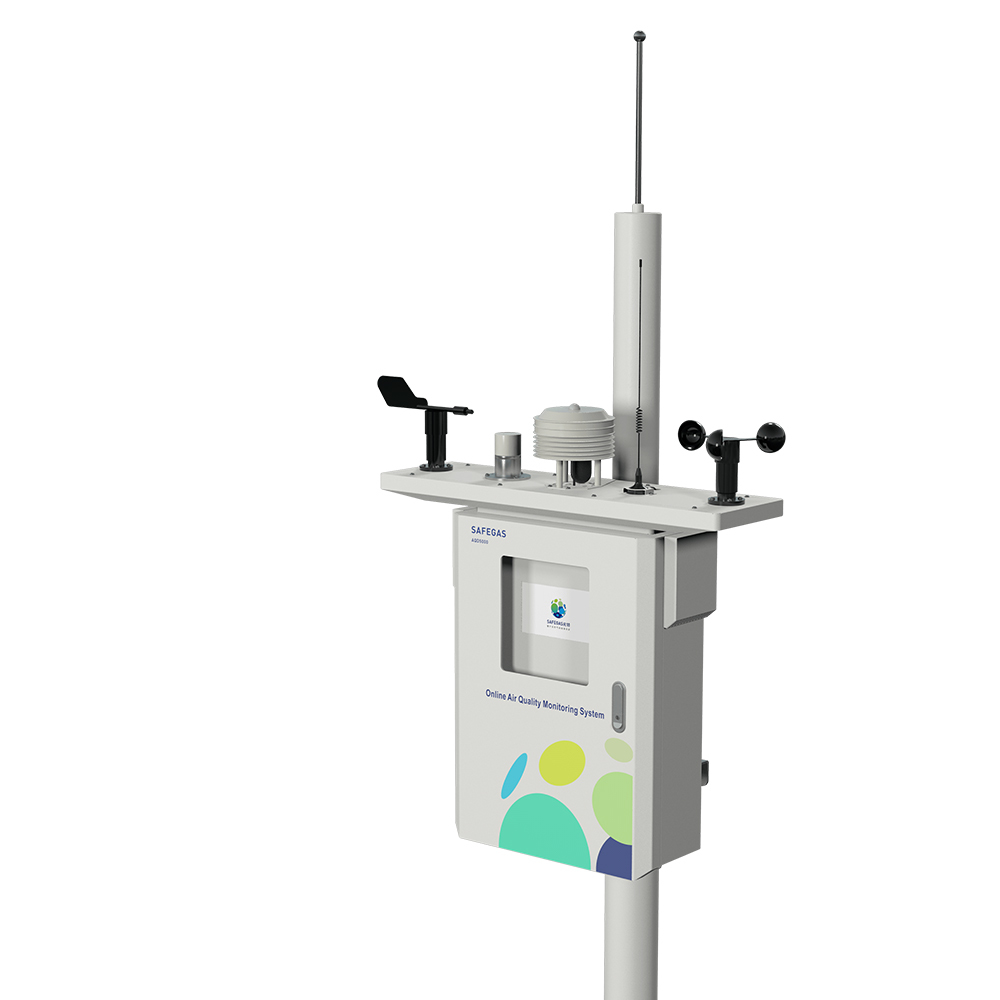

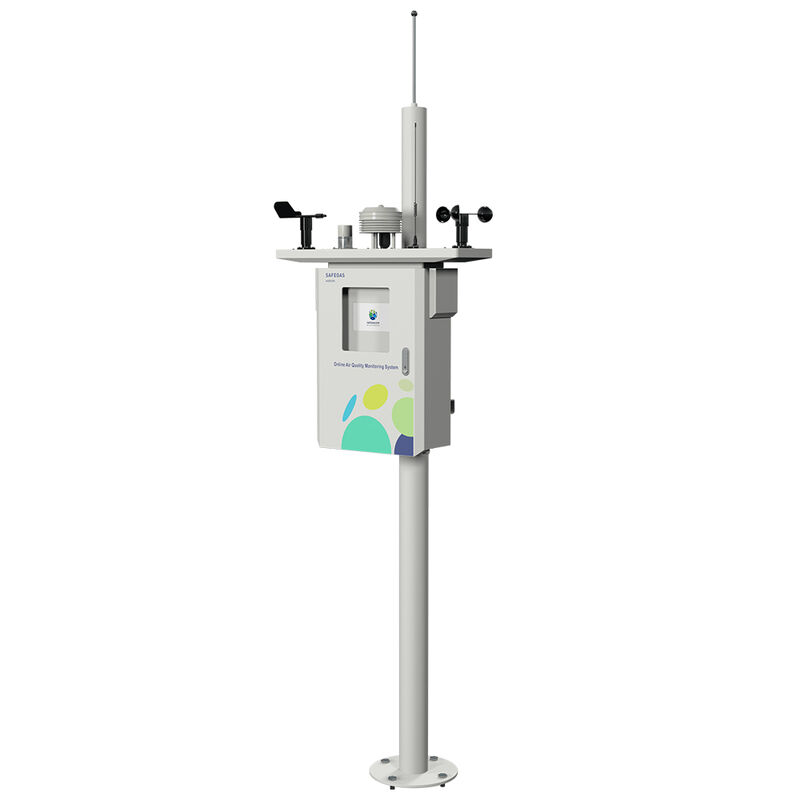

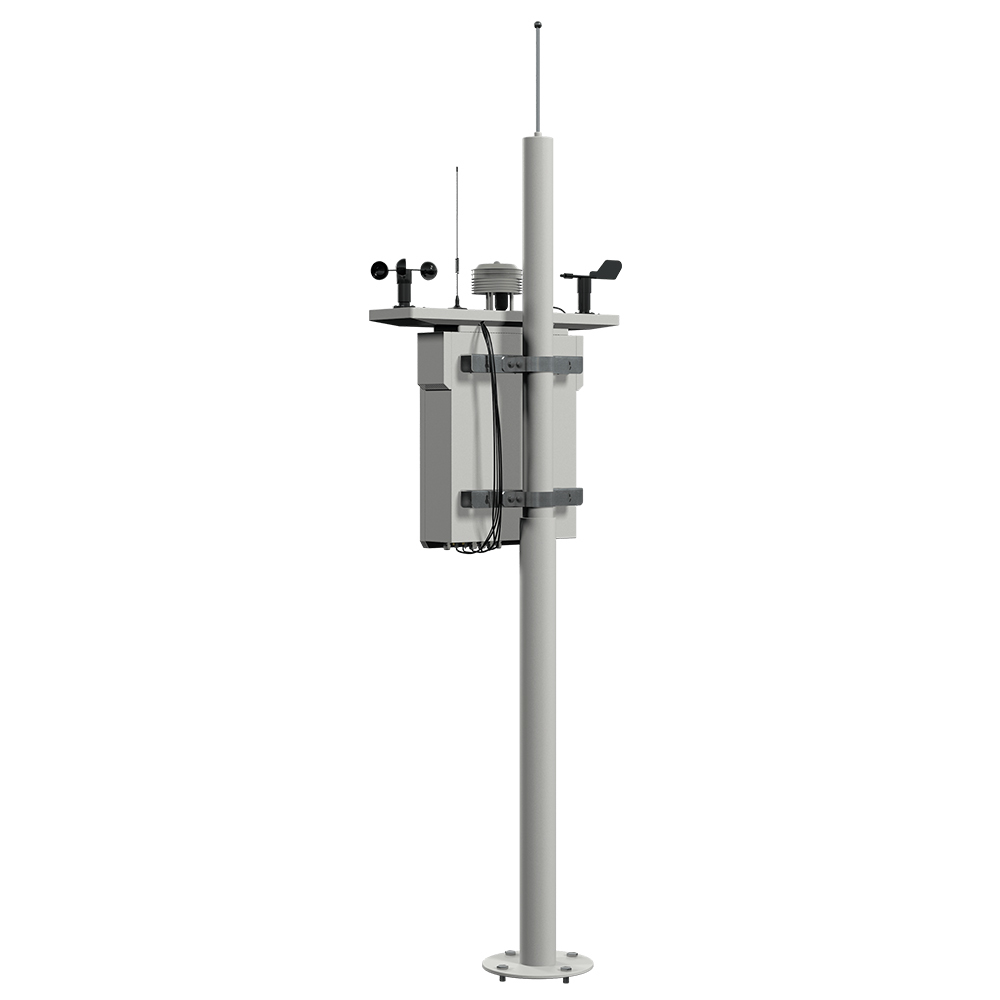

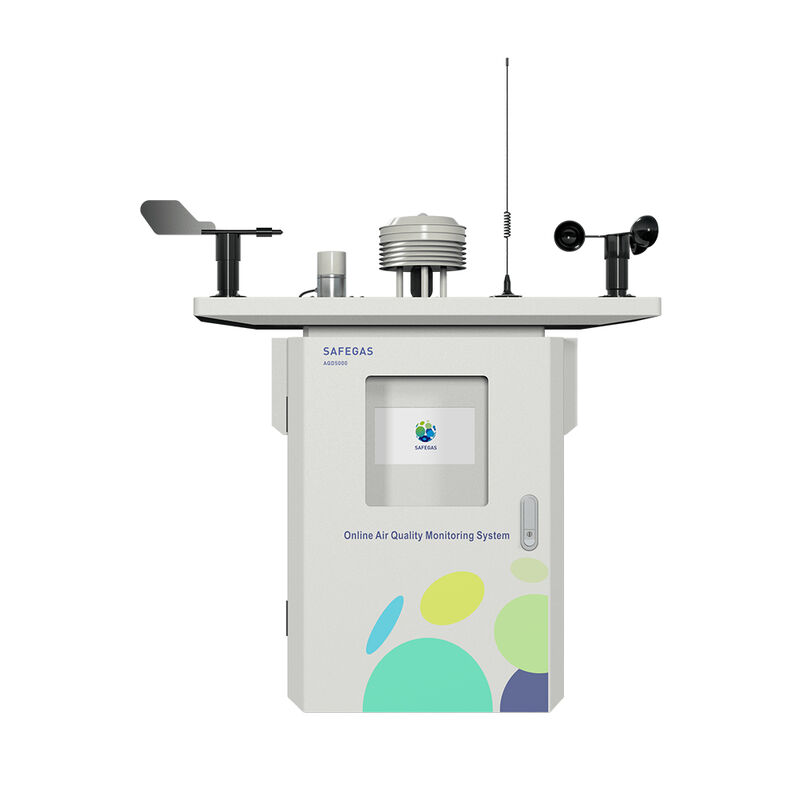

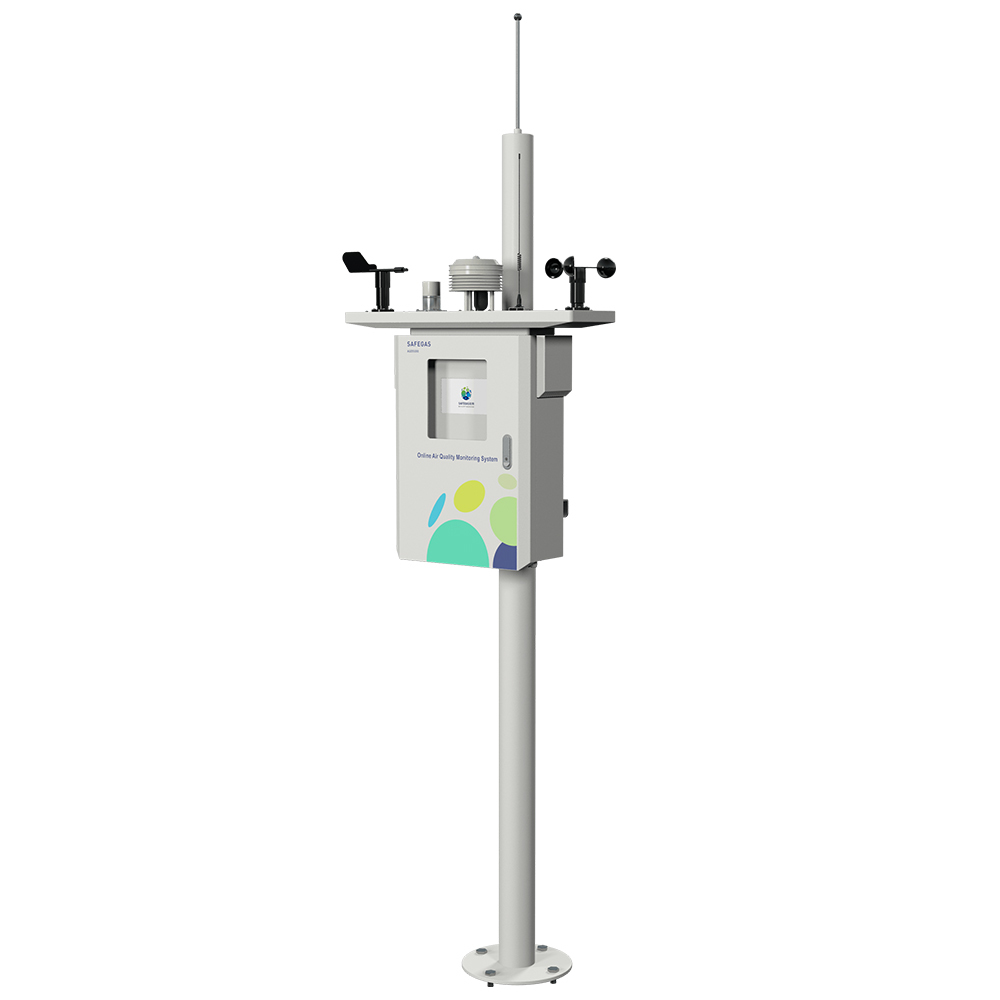

SAFEGAS AQD5000 Ambient Air Quality Monitoring System
The AQD5000 is an advanced low-cost intelligent monitoring system designed for environmental monitoring departments to track air quality with high resolution and industrial outdoor durability.
System Overview
The AQD5000 air quality monitoring system is widely deployed for urban air quality monitoring and industrial emission pollution tracking. It simultaneously measures multiple environmental pollution gases, particulate matter, and meteorological parameters. The system features RS485 signal transmission, data storage and export capabilities, and real-time cloud platform connectivity via wireless acquisition terminals for remote control and monitoring.
Key Advantages
- Multi-Parameter Monitoring: Simultaneously monitors 1-9 gas parameters with optional particle and meteorological modules
- Rugged Outdoor Design: Professional outdoor shield provides dust-proof and rain-proof protection for stable operation in extreme temperatures
- Extended Data Logging: Standard storage function maintains at least two years of monitoring data
- Continuous Operation: 7×24 hours uninterrupted operation with real-time data upload, fault self-diagnosis, and automatic restart
- Standard Connectivity: RS485 signal output with relay signal support
- High Accuracy & Reliability: 15 years of gas detection expertise using world-class sensors with third-party verified results
Optional Features
- Outdoor LED display for real-time data visibility
- Solar power supply panel for mains-free operation
- Adapter card and PC software for computer-based monitoring
- 4G DTU and Lora wireless modules for real-time data transmission
- Camera integration for remote visual monitoring and image collection
Technical Specifications
| Gas Parameters |
Measurement Parameters: Ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC
Measuring Range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm
Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm
Measuring Principle: Electrochemical, infrared, PID photo ionization
Detection Accuracy: ±3%
Response Time: ≤30S
|
| Particle Parameters |
Measurement Parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP
Measuring Range: 0-1000ug/m³, 0-5000ug/m³
Resolution: 1ug/m³
Measuring Principle: Laser principle
Response Time: ≤30S
|
| Meteorological Parameters |
Measurement Parameters: Temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise
Measuring Range: -40°C to +120°C, 0-99%RH, 0-20m/s, 8 directions, 0-120Kpa, 0-200,000 Lux, 30dB-130dB
Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 Kpa, 1Lux, 1dB
Measuring Principle: Thermocouple, mechanical principles
|
| Output Signal |
RS485, relay, 4G DTU (optional), LORA (optional) |
| Sampling Method |
Pump suction |
| Pump Flow Rate |
0.5L/min (gas); 1.8L/min (particles/dust) |
| Display |
7-inch color touch screen |
| Power Supply |
220VAC, 0.1A |
| Working Current |
<100mA (Max) |
| Operating Temperature |
-10℃ to 55℃ |
| Operating Humidity |
0-95%RH (non-condensing) |
| Alarm Type |
Sound and light alarm (optional) |
| Product Shell |
Anti-corrosion, sun protection, anti-collision |
| Product Size |
480×580×163mm (Excluding external sensors, rainproof beams, and mounting brackets) |
| Installation |
Ceiling, wall-mounted |
| Product Weight |
18kg |
| Product Composition |
Pre-processing system and monitoring factor analysis system |
| Oil Water Dust Filter |
Glass fiber material, PE material (varies by monitoring factor) |
| Warranty |
12 months |
| Packaging |
Carton |
Detectable Gases
The AQD5000 model can detect 1-9 different gases with flexible configuration options.
Applications
- Urban air quality monitoring and trend analysis
- Grid monitoring by environmental management departments
- Air quality monitoring in populated areas (communities, schools, hospitals)
- Industrial area monitoring (petrochemical plants, power stations, landfills)
- Infrastructure monitoring (roads, airports, ports, construction sites)
- Environmental research in parks, woodlands, and agricultural areas
- Particulate matter and pollution source emission monitoring
- Comprehensive environmental quality assessment
Manufacturing Excellence
As a professional gas detector manufacturer, we maintain complete control from design and R&D through production and sales, ensuring consistent product quality. Our company holds more than 100 independent intellectual property patents and operates with skilled technical workers on a complete industrial production line.
Our professional R&D department brings 25 years of gas detection industry expertise, providing comprehensive technical support and after-sales service. We maintain a strict quality management system focused on quality-first principles, certified by ISO9001 and ISO14001 for safe and environmentally friendly products.
Our products carry IECEx and ATEX explosion-proof certifications, making them suitable for hazardous environments including mines, underground facilities, and oil plants. We are the first and currently only manufacturer in China to obtain these critical certifications.
Core components including ICs and sensors utilize imported brands such as Honeywell, CITY, and Alpha, ensuring detection accuracy, product stability, extended service life, and customer safety protection.
Our complete product line and stable inventory enable fast delivery: 3 days for orders under 10 units and half a month for quantities exceeding 100 units.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the minimum order quantity?
Typically 1 piece.
How about the quality of your products?
Our products use imported sensors and components and are fully certified for quality and safety.
How long is the warranty period?
1-year warranty from factory date with lifetime maintenance support.
