Name: SAFEGAS AQD5000 High Resolution Ambient Air Quality Monitoring System for Industrial Outdoor Use with Real-time Monitoring
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: AQD5000
Price: 2,210.00 USD
Availability: InStock

Detail Information

Sampling Method:	Pump Suction	Pump Flow Rate:	0.5L/min (gas); 1.8L/min (particles/dust)
Monitoring Way:	Continuous Automatic Real-time Monitoring	Display Screen:	7 Inch Color Touch Screen
Display Mode:	Adaptive Display Channel Number, Automatic Page Turning	Signal Output:	RS485、relay、4G DTU（optional）、LORA（optional）,etc
Working Temperature:	-10℃～55℃	Working Humidity:	0-95%RH，Relative Humidity
Alarm Type:	Sound And Light Alarm (optional)	Product Weight:	18kg
Highlight:	High Resolution Ambient Air Quality Monitoring System , Real-time Monitoring Multi Gas Detector , Outdoor Use Industrial Air Quality Monitor

Product Description

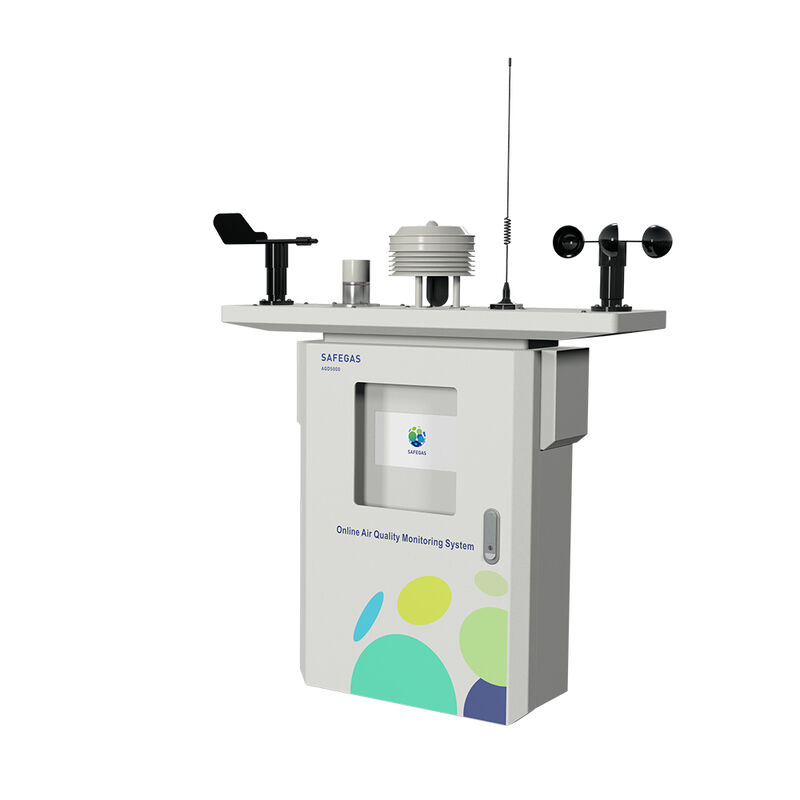

SAFEGAS AQD5000 High Resolution Ambient Air Quality Monitoring System

The AQD5000 is an advanced low-cost intelligent monitoring system designed for environmental monitoring departments to track air quality. This comprehensive system is widely used for urban air quality monitoring and industrial emission pollution monitoring, capable of simultaneously measuring various environmental pollution gases, particulate matter, and meteorological parameters.

The system features RS485 signal transmission with data storage and export capabilities. Through wireless acquisition terminals, measurement data can be transmitted to cloud platforms in real-time, enabling remote control and monitoring via cloud-based interfaces.

Product Advantages

Multi-module gas monitoring: Simultaneously monitors 1-9 gas parameters with optional particle and meteorological parameter modules
High protection rating: Professional outdoor shield provides excellent dust and rain protection, stable operation in extreme temperatures
Extended data logging: Standard storage function maintains at least two years of monitoring data
Continuous operation: 7*24 hour uninterrupted operation with real-time data upload, self-diagnosis, and automatic restart
Standard transmission: RS485 signal output with relay signal capability
High accuracy & reliability: 15 years gas detection expertise using world-class sensors with third-party verified results

Optional Features

Outdoor LED display for real-time data viewing
Solar power supply panel for operation without mains power
Adapter card and PC software for computer-based monitoring
4G DTU and Lora wireless modules for data transmission to environmental protection bureaus
Camera integration for remote visual monitoring and image collection

Technical Specifications

Gas Parameters	Measurement Parameters: Ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC Measuring Range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm Measuring Principle: Electrochemical, infrared, PID photo ionization Detection Accuracy: ±3% Response Time: ≤30S
Particle Parameters (Optional)	Measurement Parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP Measuring Range: 0-1000ug/m³, 0-5000ug/m³ Resolution: 1ug/m³ Measuring Principle: Laser principle Response Time: ≤30S
Meteorological Parameters (Optional)	Measurement Parameters: Temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise Measuring Range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 Kpa, 1Lux, 1dB Measuring Principle: Thermocouple, mechanical principles
Output Signal	RS485, relay, 4G DTU (optional), LORA (optional)
Sampling Method	Pump suction
Pump Flow Rate	0.5L/min (gas); 1.8L/min (particles/dust)
Display	7-inch color touch screen
Power Supply	220VAC, 0.1A
Working Current	<100mA (Max)
Operating Temperature	-10℃～55℃
Operating Humidity	0-95%RH (non-condensing)
Alarm Type	Sound and light alarm (optional)
Product Shell	Anti-corrosion, sun protection, anti-collision
Product Size	480580163mm (Excluding external sensors, rainproof beams, and mounting brackets)
Installation	Ceiling, wall-mounted
Product Weight	18kg
Product Composition	Pre-processing system and monitoring factor analysis system
Oil Water Dust Filter	Glass fiber material, PE material (varies by monitoring factor)
Warranty	12 months
Product Casing	Carton

Detectable Gases

The AQD5000 model can detect 1-9 different gases simultaneously, providing comprehensive air quality analysis.

Application Areas

Urban air quality monitoring and trend analysis
Grid monitoring by environmental management departments
Air quality monitoring in populated areas (communities, schools, hospitals)
Industrial area monitoring (petrochemical plants, power plants, landfills)
Transportation infrastructure monitoring (roads, airports, ports, tunnels)
Open area monitoring (parks, woodlands, agricultural research)
Particulate matter and pollution source emission monitoring
Environmental quality assessment programs

Why Choose Our Products

As a professional gas detector manufacturer, we control the entire process from design and R&D to production and sales, ensuring consistent product quality.

We hold more than 100 independent intellectual property patents and provide 7*24h customer support
Our R&D department has 25 years of experience in gas detection technology, offering professional technical support
We maintain strict quality management systems with ISO9001 and ISO14001 certifications for safe, environmentally friendly products
Our products feature IECEx and ATEX explosion-proof certifications for use in hazardous areas
We use imported components from brands like Honeywell, CITY and Alpha for enhanced accuracy and reliability
Fast delivery: 3 days for orders under 10 units, half a month for orders over 100 units

Frequently Asked Questions

Are you a manufacturer or trading company?

We are a professional manufacturer specializing in gas detectors for more than 10 years.

What is the minimum order quantity?

Usually 1 piece.

How about the quality of your products?

Our products use imported sensors and components and are fully certified for quality and safety.

How long is the warranty period?

1-year warranty from factory date with lifetime maintenance support.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	CEP
Model Number:	AQD5000

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Carton
Delivery Time:	10 work days
Payment Terms:	T/T
Supply Ability:	300 pieces per month
