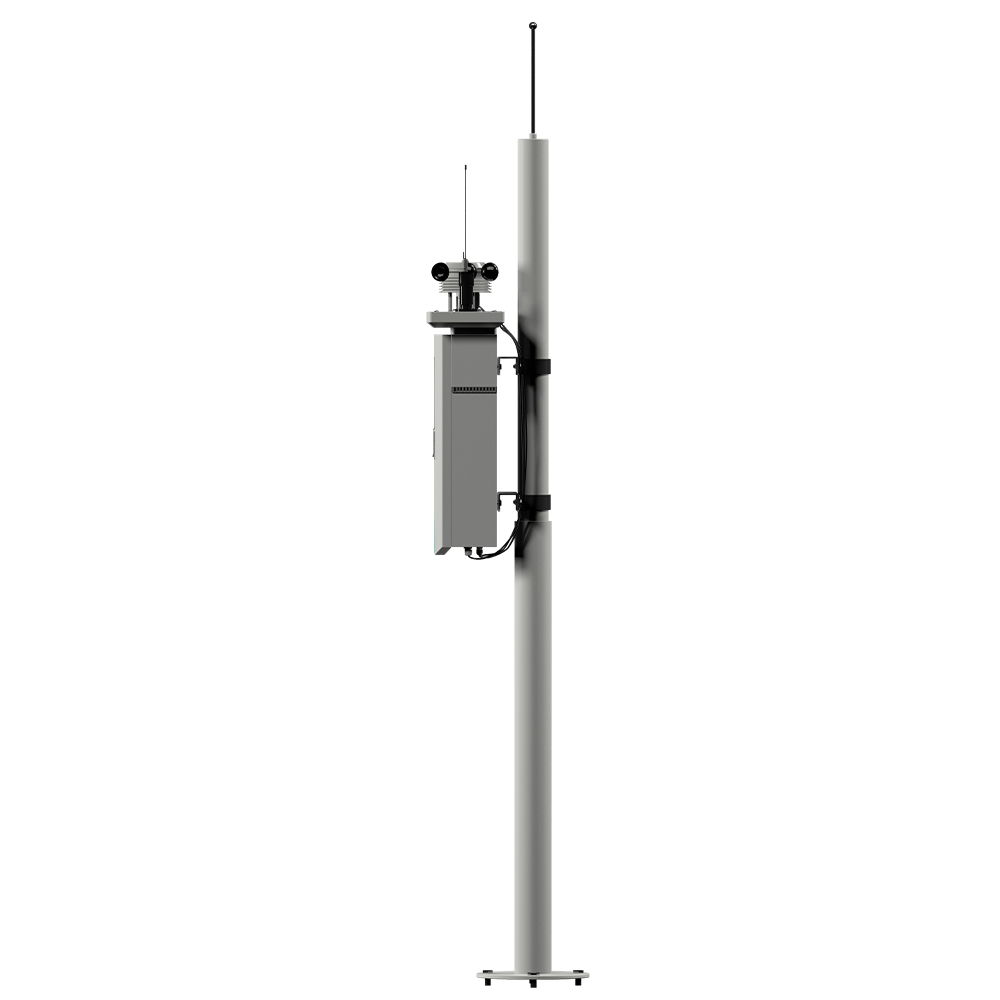

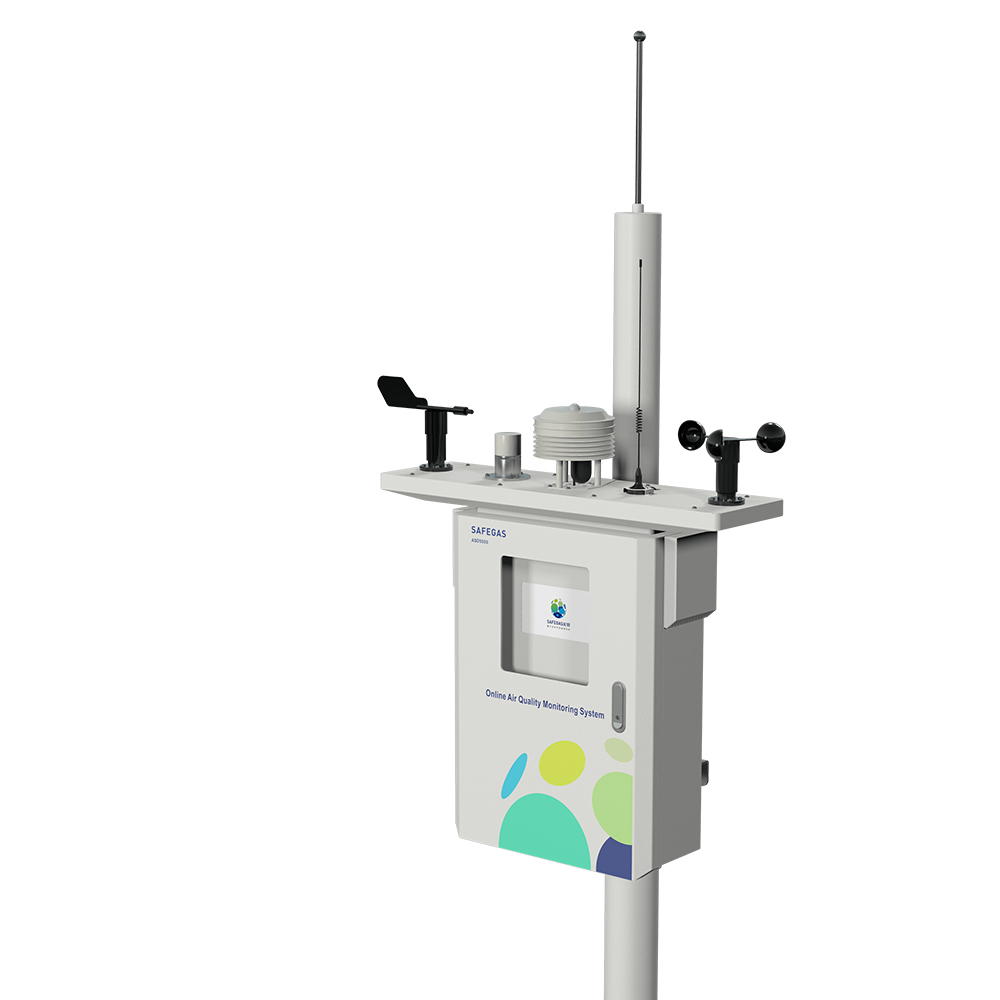

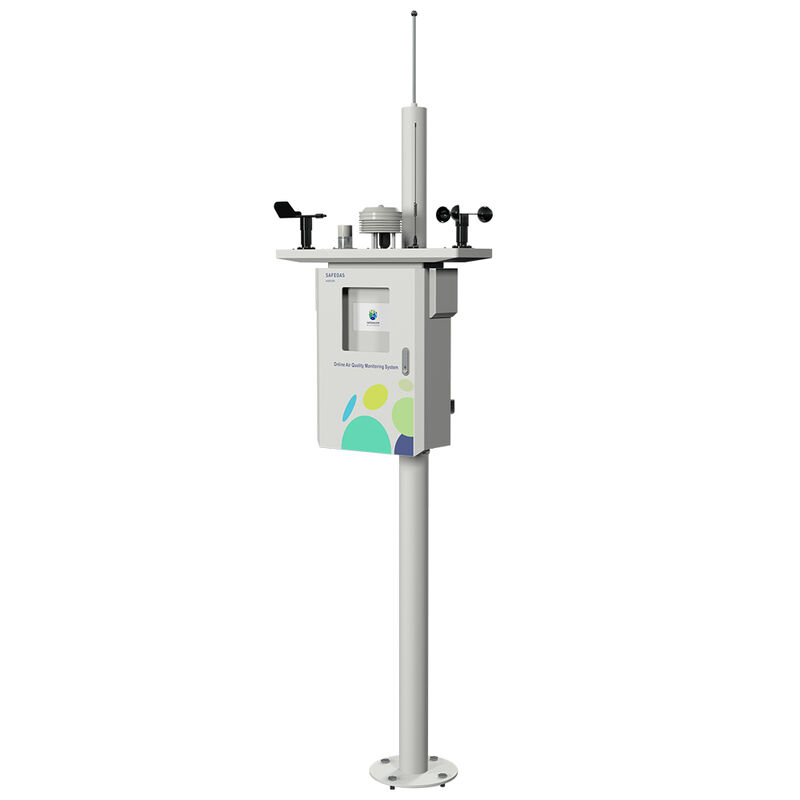

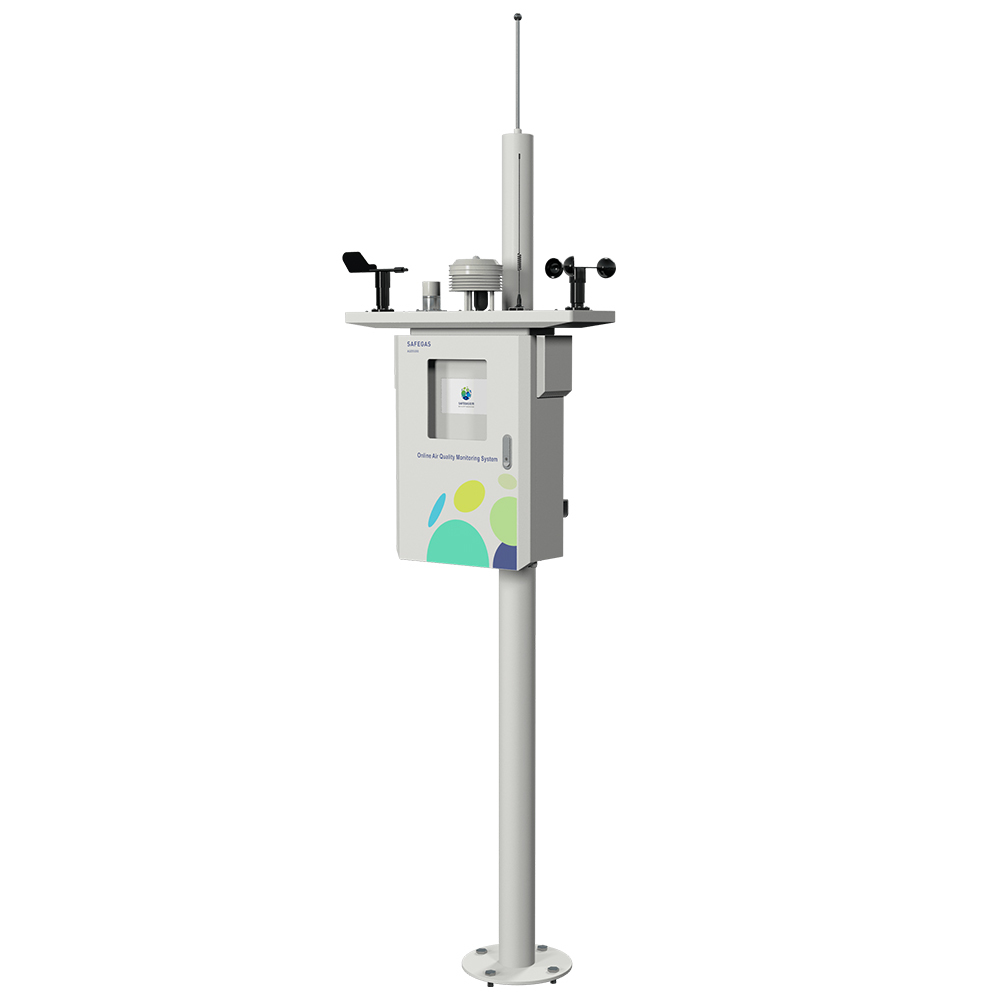

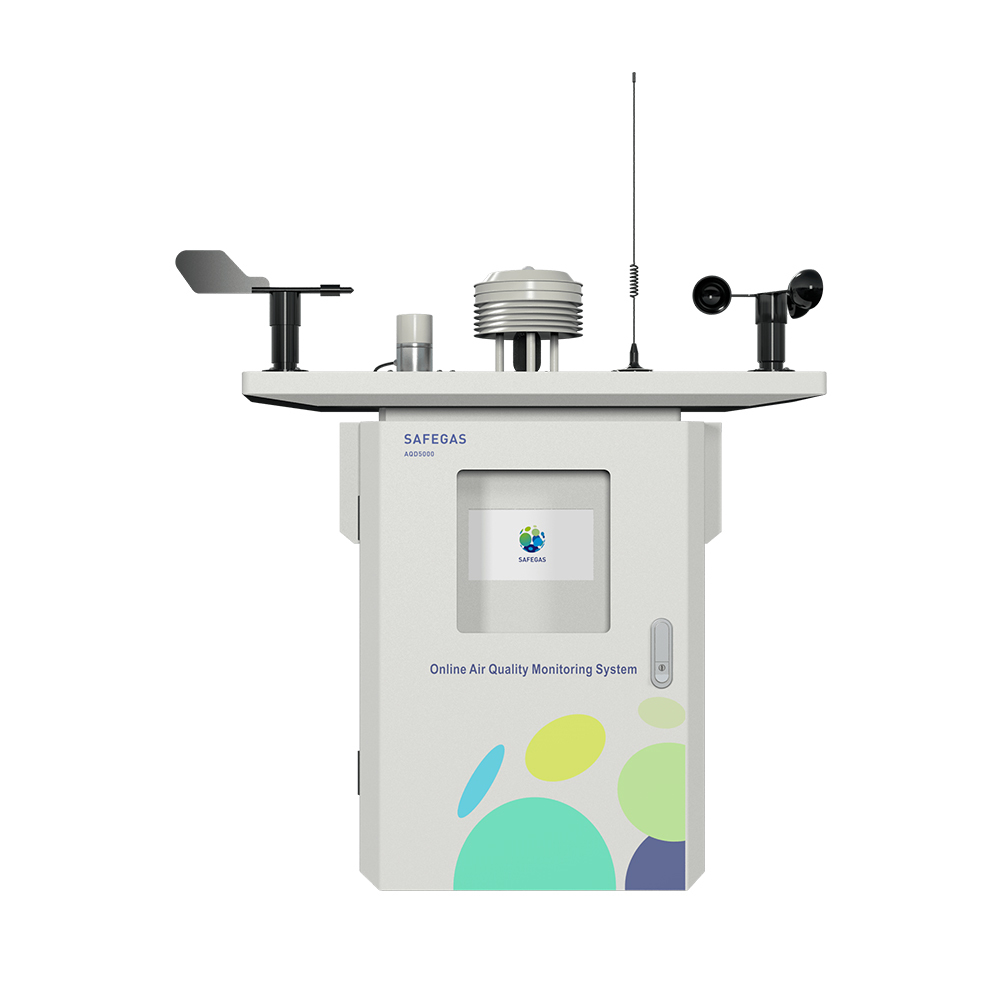

SAFEGAS AQD5000 High Resolution Ambient Air Quality Monitoring System
The AQD5000 is an advanced low-cost intelligent monitoring system designed for environmental monitoring departments to track air quality. This comprehensive system is widely used for urban air quality monitoring and industrial emission pollution monitoring, capable of simultaneously measuring various environmental pollution gases, particulate matter, and meteorological parameters.
The system features RS485 signal transmission with data storage and export capabilities. Through wireless acquisition terminals, measurement data can be transmitted to cloud platforms in real-time, enabling remote control and monitoring via cloud-based interfaces.
Product Advantages
- Multi-module gas monitoring: Simultaneously monitors 1-9 gas parameters with optional particle and meteorological parameter modules
- High protection rating: Professional outdoor shield provides excellent dust and rain protection, stable operation in extreme temperatures
- Extended data logging: Standard storage function maintains at least two years of monitoring data
- Continuous operation: 7*24 hour uninterrupted operation with real-time data upload, self-diagnosis, and automatic restart
- Standard transmission: RS485 signal output with relay signal capability
- High accuracy & reliability: 15 years gas detection expertise using world-class sensors with third-party verified results
Optional Features
- Outdoor LED display for real-time data viewing
- Solar power supply panel for operation without mains power
- Adapter card and PC software for computer-based monitoring
- 4G DTU and Lora wireless modules for data transmission to environmental protection bureaus
- Camera integration for remote visual monitoring and image collection
Technical Specifications
| Gas Parameters | Measurement Parameters: Ozone, sulfur dioxide, nitrogen dioxide, formaldehyde, carbon monoxide, TVOC
Measuring Range: 0-1000ppb, 0-1000ppb, 0-1000ppb, 0-5ppm, 0-20ppm, 0-5ppm
Resolution: 1 ppb, 1 ppb, 1 ppb, 0.01ppm, 0.001ppm, 0.001ppm
Measuring Principle: Electrochemical, infrared, PID photo ionization
Detection Accuracy: ±3%
Response Time: ≤30S |
|---|
| Particle Parameters (Optional) | Measurement Parameters: PM2.5, PM10, PM0.3, PM1.0, PM10.0, TSP
Measuring Range: 0-1000ug/m³, 0-5000ug/m³
Resolution: 1ug/m³
Measuring Principle: Laser principle
Response Time: ≤30S |
|---|
| Meteorological Parameters (Optional) | Measurement Parameters: Temperature, humidity, wind speed, wind direction, air pressure, light intensity, noise
Measuring Range: -40°C~+120°C, 0~99%RH, 0~20m/s, 8 directions, 0~120Kpa, 0~200,000 Lux, 30dB~130dB
Resolution: 0.1℃, 1%RH, 0.1 m/s, 1 Kpa, 1Lux, 1dB
Measuring Principle: Thermocouple, mechanical principles |
|---|
| Output Signal | RS485, relay, 4G DTU (optional), LORA (optional) |
|---|
| Sampling Method | Pump suction |
|---|
| Pump Flow Rate | 0.5L/min (gas); 1.8L/min (particles/dust) |
|---|
| Display | 7-inch color touch screen |
|---|
| Power Supply | 220VAC, 0.1A |
|---|
| Working Current | <100mA (Max) |
|---|
| Operating Temperature | -10℃～55℃ |
|---|
| Operating Humidity | 0-95%RH (non-condensing) |
|---|
| Alarm Type | Sound and light alarm (optional) |
|---|
| Product Shell | Anti-corrosion, sun protection, anti-collision |
|---|
| Product Size | 480*580*163mm (Excluding external sensors, rainproof beams, and mounting brackets) |
|---|
| Installation | Ceiling, wall-mounted |
|---|
| Product Weight | 18kg |
|---|
| Product Composition | Pre-processing system and monitoring factor analysis system |
|---|
| Oil Water Dust Filter | Glass fiber material, PE material (varies by monitoring factor) |
|---|
| Warranty | 12 months |
|---|
| Product Casing | Carton |
|---|
Detectable Gases
The AQD5000 model can detect 1-9 different gases simultaneously, providing comprehensive air quality analysis.
Application Areas
- Urban air quality monitoring and trend analysis
- Grid monitoring by environmental management departments
- Air quality monitoring in populated areas (communities, schools, hospitals)
- Industrial area monitoring (petrochemical plants, power plants, landfills)
- Transportation infrastructure monitoring (roads, airports, ports, tunnels)
- Open area monitoring (parks, woodlands, agricultural research)
- Particulate matter and pollution source emission monitoring
- Environmental quality assessment programs
Why Choose Our Products
As a professional gas detector manufacturer, we control the entire process from design and R&D to production and sales, ensuring consistent product quality.
We hold more than 100 independent intellectual property patents and provide 7*24h customer support.
Our R&D department has 25 years of experience in gas detection technology, offering professional technical support.
We maintain strict quality management systems with ISO9001 and ISO14001 certifications for safe, environmentally friendly products.
Our products feature IECEx and ATEX explosion-proof certifications for use in hazardous areas.
We use imported components from brands like Honeywell, CITY and Alpha for enhanced accuracy and reliability.
Fast delivery: 3 days for orders under 10 units, half a month for orders over 100 units.
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a professional manufacturer specializing in gas detectors for more than 10 years.
What is the minimum order quantity?
Usually 1 piece.
How about the quality of your products?
Our products use imported sensors and components and are fully certified for quality and safety.
How long is the warranty period?
1-year warranty from factory date with lifetime maintenance support.
