IECEX Certified Explosion-Proof Wireless 4-in-1 Gas Detector
The MicMeta multi-gas detector offers advanced gas detection capabilities with IP66/IP68 protection, capable of simultaneously monitoring 1-4 gases. For conventional range gases like CO and H2S, it can detect up to 5 gases simultaneously.
Certifications & Safety
Certified with IECEX, ATEX, and China Explosion-proof standards with explosion-proof level Ex ia IICT4 Ga/Ex ia I Ma. Approved for use in both Zone 0 and Zone 1 hazardous areas.

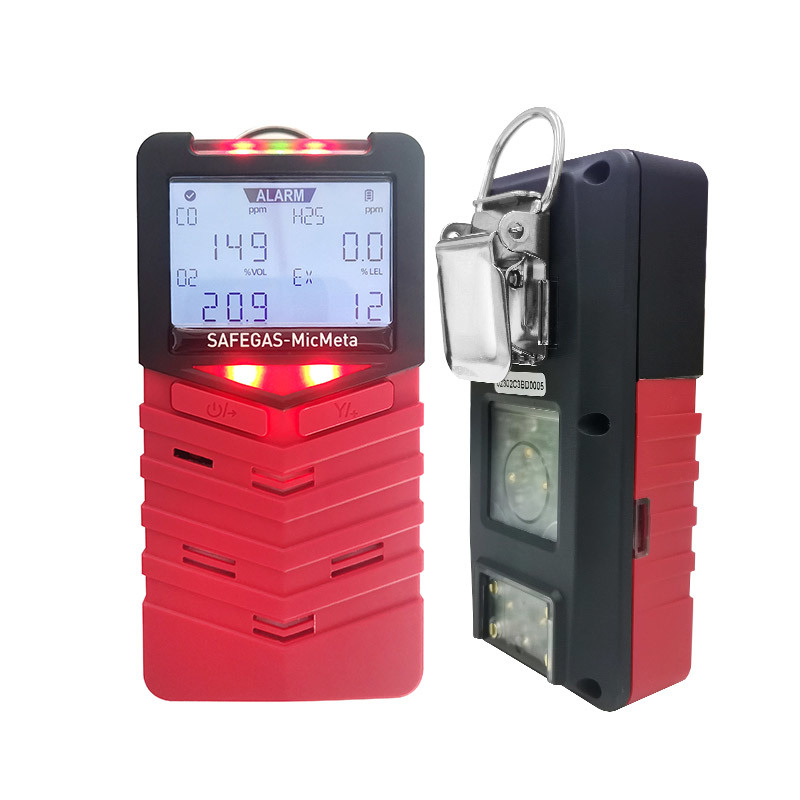

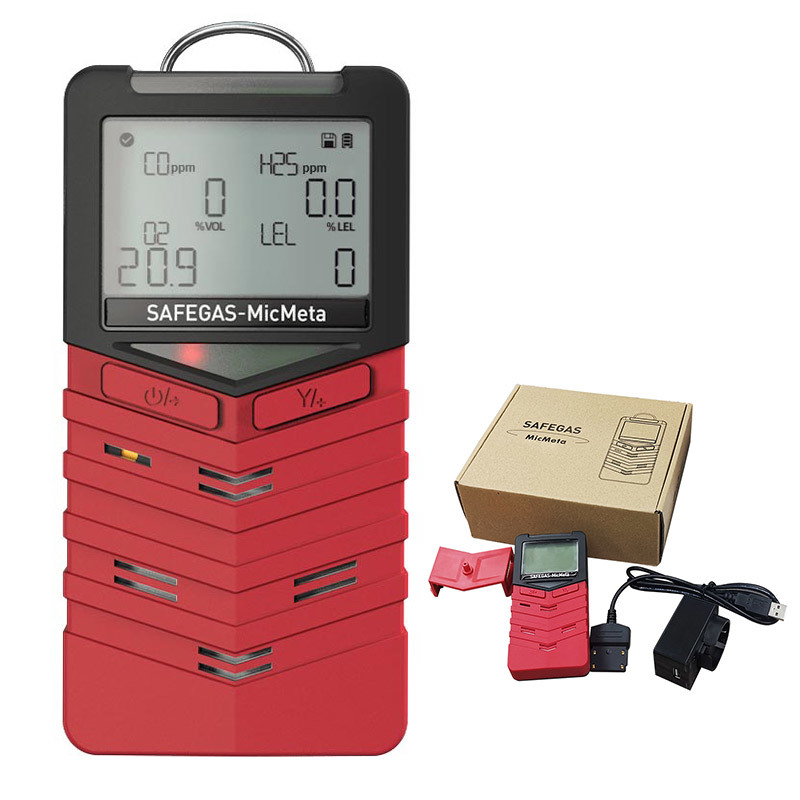

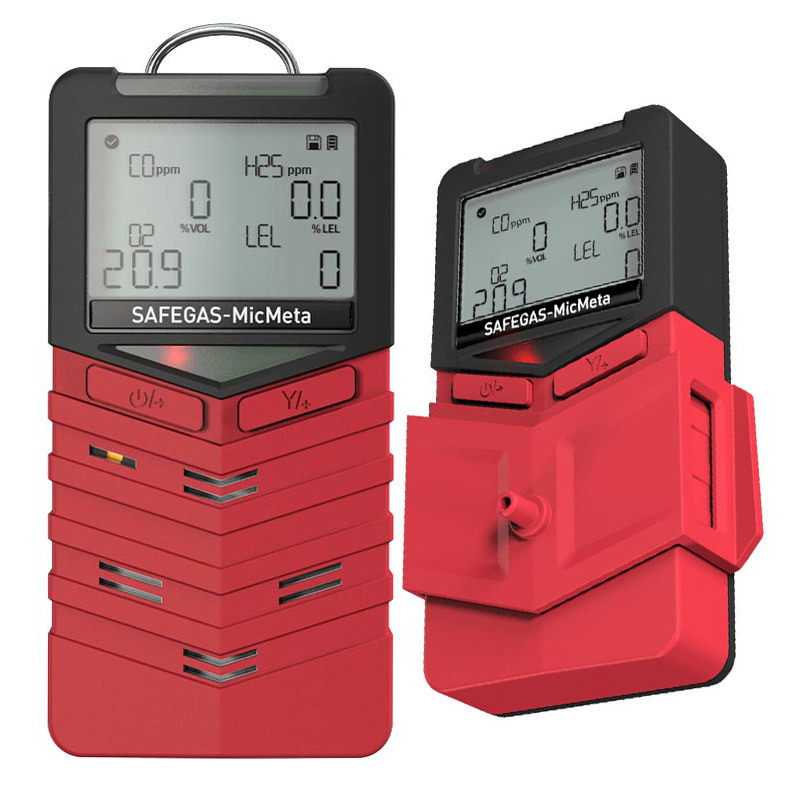

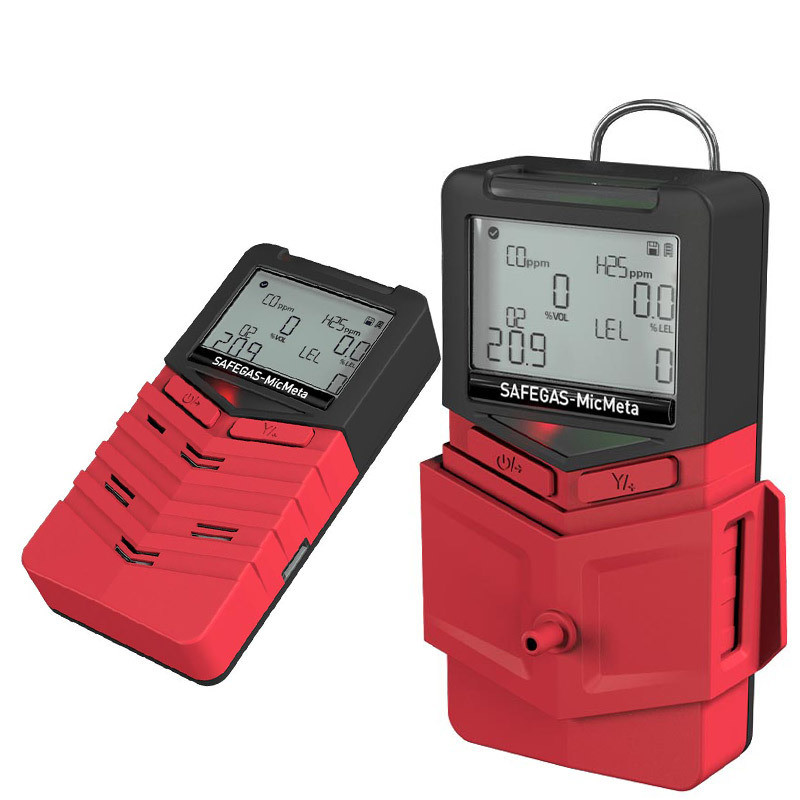

Product Images
Key Advantages
Compact & Lightweight
Small size with light weight (240g), robust and durable construction withstands drops up to 1.5 meters. IP66/IP68 rated for effective waterproof and dustproof protection.
User-Friendly Operation
Simple two-button operation for easy and intuitive use.
Bright Visual Alarm
Wide-angle visual alarm bar for enhanced visibility in all conditions.
EMC Tested
Successfully passed EMC anti-static interference tests for reliable operation in various environments.
Ergonomic Design
Comfortable, wear-resistant back clip for easy carrying and secure attachment.
Technical Specifications
| Parameter |
Specification |
| Sampling Method |
Diffusion suction |
| Gas Type |
Can be customized |
| Measure Range |
Can be customized |
| Resolution |
Can be customized |
| Response Time |
≤60S (T90) |
| Precision |
≤±5%FS or ±10% (depends on specific sensor) |
| Language |
Chinese/English |
| Automatic Functions |
Auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit Display |
PPM and mg/m³ switchable with automatic concentration value conversion |
| Display |
Segment code LCD display |
| Calibration Platform |
DKM-MicMeta docking station (optional) for modification, function testing and calibration |
| Data Record |
1000 sets data records and 100 sets events records |
| Alarm System |
95dB buzzer (@30cm), vibration alarm, flashing red bar, on-screen alarm status indication, alarm lock; Diagnostic alarms, battery undervoltage alarms, man down alarms; All sensor alarm values settable |
| Battery |
3.7V rechargeable lithium battery, 2300mAh capacity |
| Working Hours |
Standby time 18h, charging time <6h |
| Wireless Transmission |
Bluetooth transmission (optional), Lora transmission (optional) |
| Explosion-proof Grade |
IECEx: Ex ia IIC T4 Ga, Ex ia I Ma
ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma |
| EU Regulations |
2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection Grade |
IP66/IP68 |
| Working Temperature |
-20°C~55°C |
| Humidity |
0-95%RH (non-condensing) |
| Environmental Pressure |
86～106Kpa |
| Size |
113*60*32mm (length * width * height) |
| Weight |
200g (with lithium battery) |
Detectable Gases
Micmeta can detect 1-5 gases including various combustible and toxic gases with customizable sensor configurations.
Industry Applications
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Why Choose Our Gas Detectors?
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure consistent product quality.
Expertise & Certifications
25+ Years R&D Experience
ISO9001 Certified
ISO45001 Certified
IECEx Certified
ATEX Certified
CE Certified
Our professional R&D team with 25 years of experience in gas detection provides expert technical support and after-sales service.
We maintain more than 100 independent intellectual property patents and implement strict quality management systems focused on quality-first principles.
We are the first and currently the only manufacturer in China with IECEx and ATEX explosion-proof certification, enabling safe use in hazardous areas like mines, underground facilities, and oil plants.
Core components including ICs and sensors use imported brands like Honeywell, CITY and Alpha, ensuring detection accuracy, product stability, and extended service life.
Fast Delivery & Support
Complete product line and stable inventory enable quick delivery: 3 days for orders under 10 units, half a month for orders over 100 units. Professional sales staff provide 7*24 hours service.
Frequently Asked Questions
What is a gas detector?
A gas detector is an instrument for gas leakage concentration detection, including portable gas detectors and fixed gas detectors.
What does a gas detector detect?
Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
What is the ppm unit of the gas detector?
ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
