Name: IECEx ATEX Certified Formaldehyde Gas Detector with Pump Suction Detection and 0-50PPM Range
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SKY3000
Price: 710 USD
Availability: InStock

Detail Information

Product Name:	Gas Detector	Gas Detected:	CH2O
Range:	0-50PPM	Resolusion:	0.01PPM
Sampling Method:	Pump Suction	Data Record:	Can Store 100000 Sets Data
Certification:	CE,ATEX,IECEx,ISO	Alarm Mode:	Buzzer , LED And Vibration
Power:	With 3.7V Rechargeable Lithium Battery	Working Hour:	More Than 15 Hours(with Pump Running)
Single Gross Weight:	1.64kg	Size:	34cm24cm14cm

Product Description

Formaldehyde Gas Detector CH2O Portable Multi Gas Analyzer with IECEx ATEX Certification

Product Overview

SKY3000 Portable CH2O Gas Detector - High-precision portable formaldehyde gas detector with pump-suction detection principle, designed for industrial safety applications.

SKY3000 is an IECEx/ATEX/EMC certified portable multi-gas detector. It features suction type detection with built-in pump to detect up to 6 gas types in one device. The standard configuration detects 4 gases (CO, H2S, O2, LEL), with thousands of gas types available for selection to support wide-ranging applications. Includes wireless communication for remote access to real-time data and alarm status. Standard datalog function exports data to PC without requiring additional software.

Key Features

IP67 water & dust resistant and 3 meter drop resistant case, rugged and durable design
Standard man down alarm function
Real time value, TWA, STEL, MAX, MIN multiple numerical display
One press to restore factory settings
Large graphical display can rotate 180°
Standard water trap filter to protect the sensor

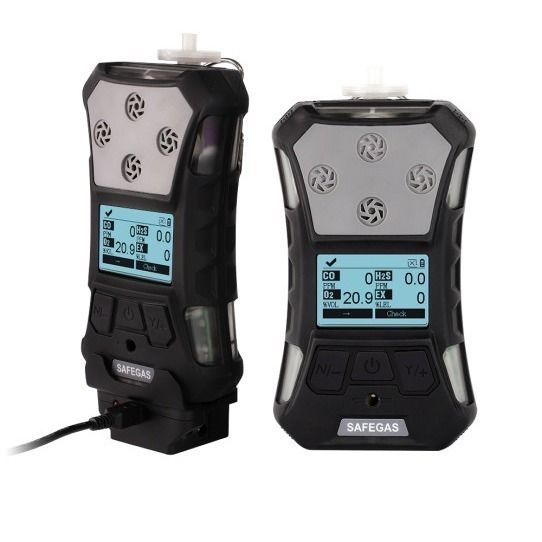

With docking station to perform daily bump test and calibration (Optional)
Wireless data transmission including Lora, Bluetooth (Optional)
Support backlight function with manually adjustable backlight time
Low power consumption, long standby time
Support firmware upgrade remotely

Technical Specifications

Gas Detected	CH2O
Detection Principle	Electrochemical
Measure Range	0-50PPM
Resolution	0.01PPM
Response Time	≤30 seconds
Precision	≤ ± 1-5%F.S except for special gases
Language	Chinese/English/Polish (More languages can be customized)
Automatically Test and Calibrate	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM, mg/m3, %LEL, %VOL
Display	LCD (160*96), 180° rotate
Backlight	Turned on automatically when alarming, backlight time can be manually set
Data Record	100,000 readings, storage interval adjustable from 5 to 3600 seconds, data can be exported to PC without software
Alarm	95dB@30cm buzzer alarm, flashing red LED alarm and vibration alarm. Alarm status indication on screen, alarm latched; diagnostic alarm and battery under-voltage alarm, pump failure alarm; man down alarm
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working Hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Working Temperature	-20℃~+50℃
Explosion-proof Grade	IECEx: Ex ia IIC T4 Ga
Humidity	10~90%RH (no condensation)
Certification (EU regulations)	2004/34/JE (ATEX)
Protection Grade	IP67
Working Pressure	86~106Kpa
Size	15784.559.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)

Product Images

Company Advantages

R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Our product portfolio includes portable detectors, fixed systems, controller panels and particle counters:

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM
