Name: ATEX Certified Fixed HC CXHY Gas Detector With 2.4 Inch Color Screen And RS485 HART Signal Output For Hydrocarbon Gas Monitoring
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-98H-A
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Detected:	CXHY	Detection Principle:	Electrochemical
Range:	0-500ppm	Resolusion:	0.1ppm
Power:	12-24V DC	Accuracy:	≤±2-5%FS
Response Time(T90):	15 To 30s	Repeatability:	≤±1%
Pump Flow:	0.35 To 0.5 L/Min	Temperature:	–20℃ To 55℃
Humidity(no Condensation):	0-95%RH	Alarm(Optional):	Buzzer, Alarm Status Prompt On The Display Screen, High And Low Alarm Values Can Be Set By Customer

Product Description

Pump Suction Fixed CXHY Gas Detector ATEX Certified Hydrocarbon Gas Monitor With 2.4 Inch Color Screen RS485 HART Signal Output

Product Overview

YT-98H/YT-98H-A Fixed Gas Detector is a built-in pump-suction single & multi gas detector with IECEx and ATEX certification. Featuring non-contact magnetic wand design, it can be installed and operated in explosion-proof areas and Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART and Modbus protocols, making it compatible with most control systems. With optional wireless function, operators can view data on laptop, mobile phone or cloud system remotely.

YT-98H can detect the concentration of CO2 and NH3 simultaneously. It can be installed in environments of -20°C to 50°C, making it suitable for installation in freezers, cold storage and other environments to detect ammonia leaks.

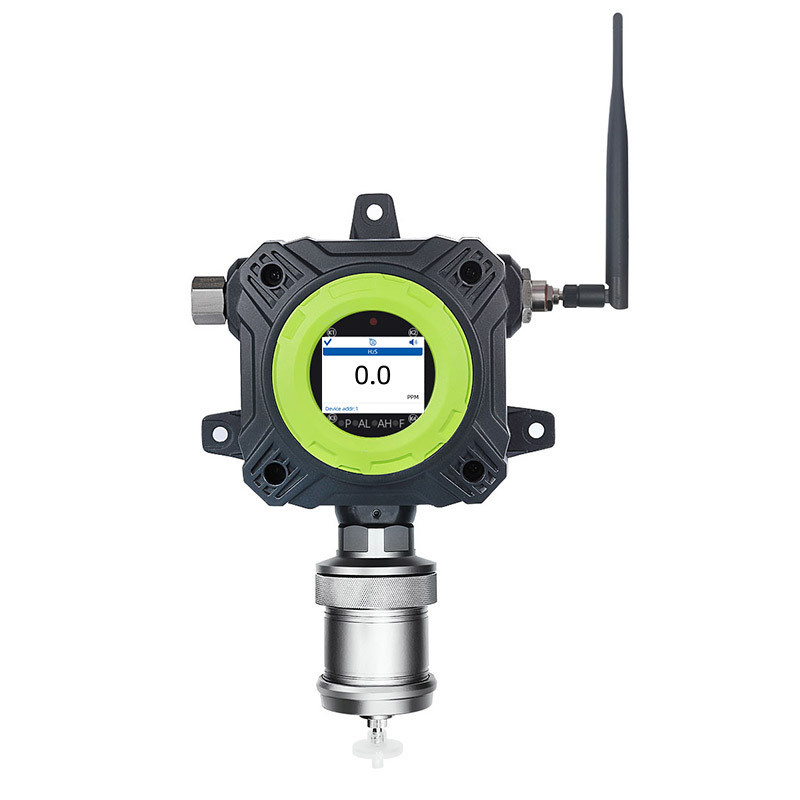

Product Images - YT-98H (with display)

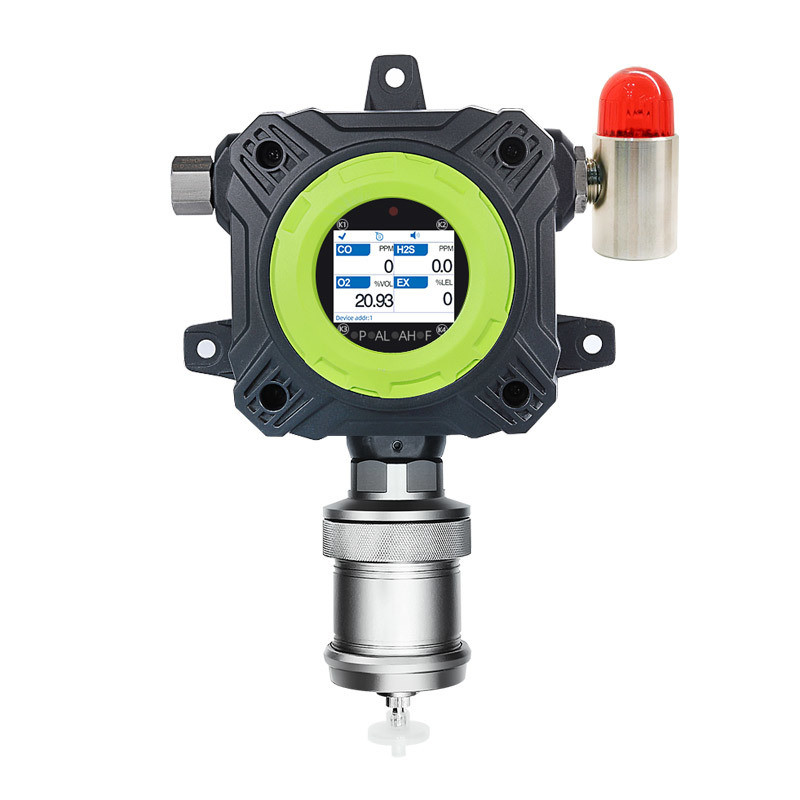

Product Images - YT-98H-A (with display and alarm light)

Product Advantages

Up to 6 kinds of gases can be detected simultaneously
Reduces multiple installations in complex multi-gas environments, saving time and effort
2.4-inch industrial-grade high-definition color screen with 320*240 resolution and 120-degree wide viewing angle

Optional wireless module for cloud platform data upload with SMS reminder function
Internal suction pump for fast response
Full software automatic verification and zero calibration functions for accurate monitoring

Standard 4-20mA current signal, RS485 modbus signal, and relay signal output
Standard infrared remote control for remote detector operation and settings modification
Optional sound and light alarm function when reaching alarm points

Technical Specifications

Gas Detected	HC/CXHY
Detection Principle	Electrochemical or IR
Installation Method	Wall-mounted, piping type, flow-type (according to detected environment)
Measurement Range	Can be customized
Resolution	Can be customized
Accuracy	≤±2-5%FS (depending on specific sensor)
Signal Output	4-20mA, RS485, relay
Response Time (T90)	15-30s (depending on specific sensor)
Recovery Time	≤10S
Repeatability	≤±1%
Display	2.4-inch color display, resolution 320*240
Operating Language	English/Chinese
Display Content	Gas molecular formula, concentration, unit, pump status, etc.
Temperature Range	-20°C to 55°C
Humidity Range	0-95%RH
Explosion-Proof Certification	IECEX: Ex db IIC T6 Gb ATEX: Ex db IIC T6 Gb
Degree of Protection	IP66
Alarm Mode	Sound, light
Operating Time	24h
Dimensions	432715cm
Weight	4.6kg

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions according to different industries, including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

Product Line

Our products contain portable types, fixed types and controller panels:

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H

Certifications

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality comparable to international brands, but with competitive pricing.

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Companies We Cooperate With

Huawei, Coca-Cola, Samsung, Nestlé and more.

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.

Q2: What is the MOQ?

A2: Usually it is 1 piece.

Q3: How about the quality of your products?

A3: Our products are made of imported sensors and components, and the products are certified.

Q4: How long is the warranty time of the products?

A4: The warranty period is 1 year from the factory, and we also provide lifetime maintenance.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/IECEX
Model Number:	YT-98H-A

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton(432715cm)
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	3000 pieces per month
