Portable H2O2 Gas Detector with 0-100PPM Range, IP66 Protection, and Electrochemical Sensor for Pharmaceutical Safety

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: CNEX CCC ISO9001, ISO14001, ISO45001
Model Number: SKY2000
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 1000 pieces per month
Detail Information
Gas Detected: H2O2 Range: 0-100PPM
Resolusion: 0.1PPM Sensor Type: Electrichemical
Response Time: 30 Second Repeatability: ≤±1%
H.S Code: 9027100090 Warranty: 1 Year
Weight: 300g Size: 205*75*32
Protection Grade: Ip66

Product Description

Pharmaceutical Workshop Hydrogen Peroxide Leakage Early Warning Inspection H2O2 Gas Detector
Product Overview

SKY2000 Portable H2O2 Gas Detector - High-precision portable H2O2 gas detector with pump-suction detection principle, designed for industrial safety applications in air separation plants and laboratory environments.

The SKY2000 series gas detector is a fast-response, high-accuracy gas measurement device featuring an internal sampling pump for rapid sampling speed and high flow rate, ensuring optimal response time. Its unique compact design and high-intensity engineering plastics housing make it suitable for various industrial situations and environments.

Key Features
  • LCD dot matrix display with backlight function
  • Built-in sampling pump for efficient gas detection
  • Explosion-proof certified (Ex ia IIC T4 Ga)
  • Span-calibration and zero calibration functions for accurate detection
  • One-button factory reset functionality
Technical Specifications
Parameter Specification
Gas Detected H2O2; other gases can be specified
Detection Principle Electrochemical
Measurement Range 0-100PPM
Resolution 0.1PPM
Precision ≤ ± 1-5% F.S
Data Logging 100,000 readings storage with PC software download (optional)
Response Time ≤30 seconds
Repeatability ≤ ± 1%
Zero Shift ≤ ± 1% (F.S/year)
Operating Language Chinese/English
Temperature Range 20℃ ~ 50℃
Explosion-Proof Rating Ex ia IIC T4 Ga
Alarm Mode Sound, light, vibration
Dimensions 205*75*32mm
Recovery Time ≤10 seconds
Linearity Error ≤ ± 1%
Display LCD dot matrix display
Gas Unit Switchable units
Humidity Range 0-90% RH
Protection Degree IP66
Operating Time 100 hours (pump off)
Weight 300g

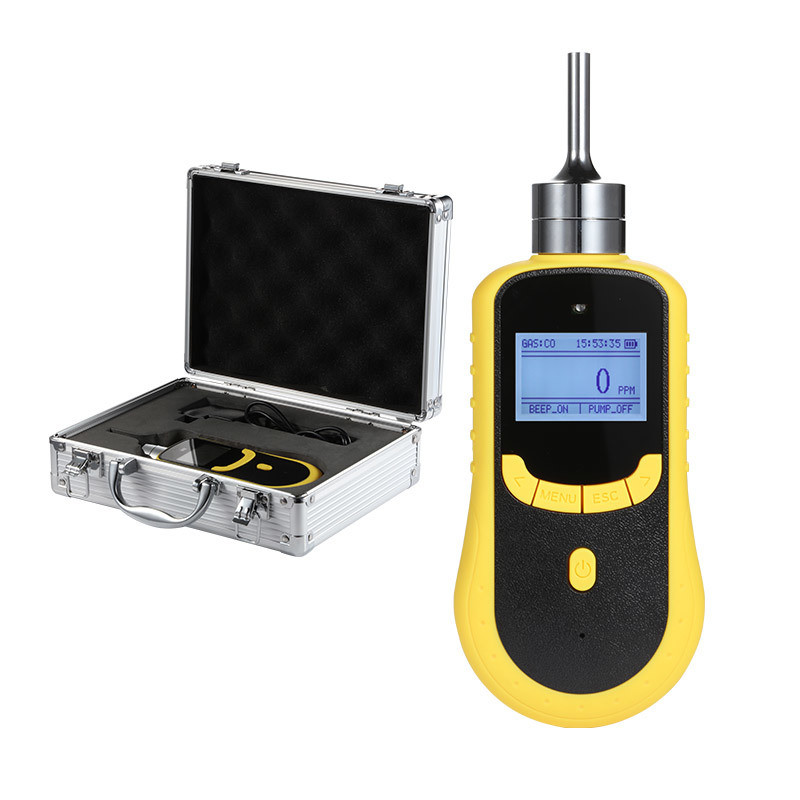

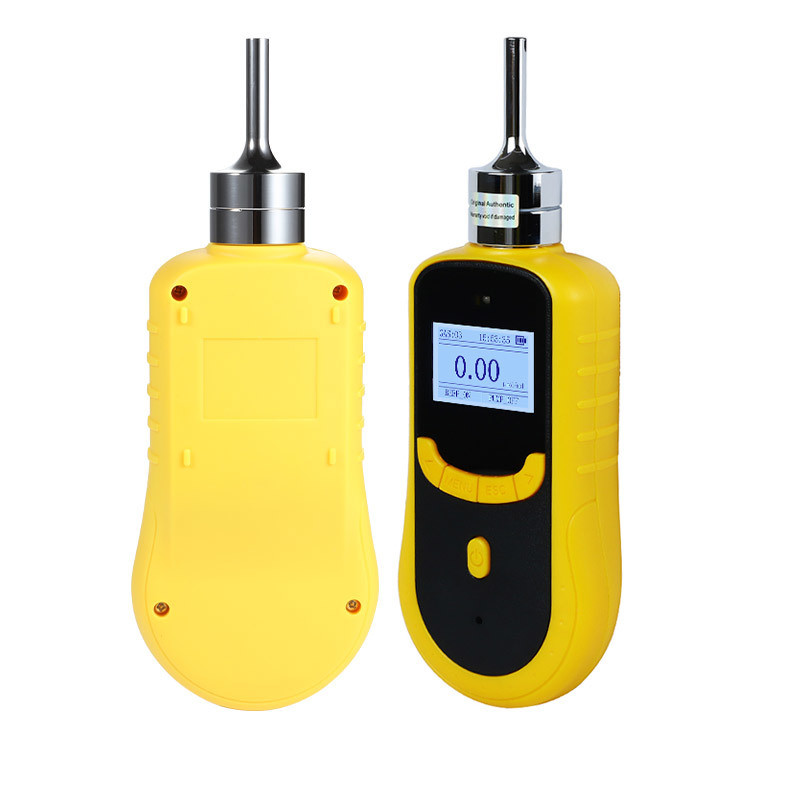

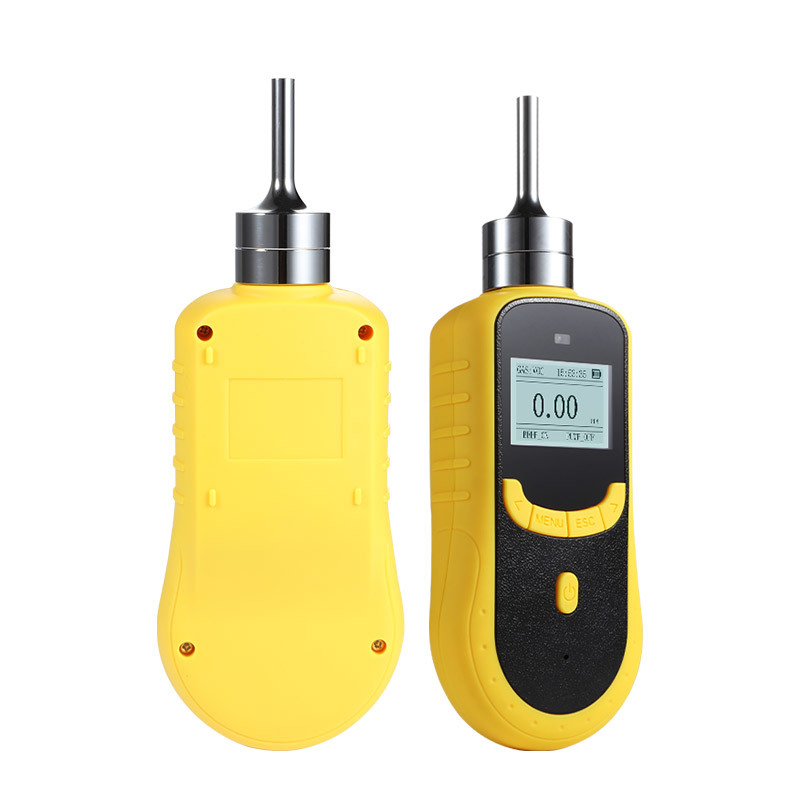

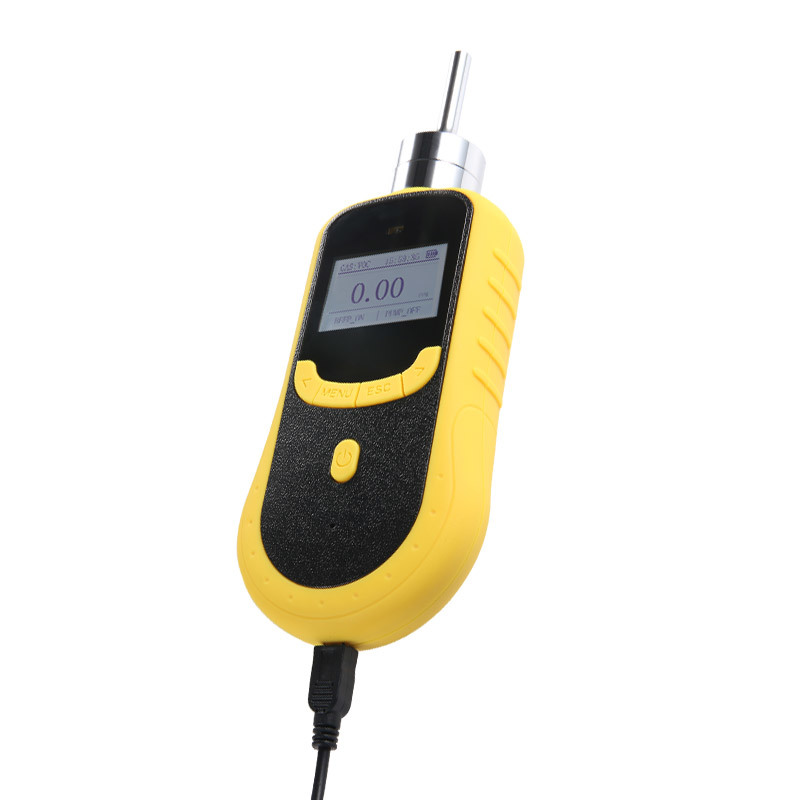

Product Images
Company Advantages
R&D Experience
Over 25 years
Company Certifications
ISO9001, ISO45001
Product Certifications
IECEx, ATEX, CE
Delivery Time
5-7 days
Annual Capacity
80,000 units
Customer Service
Professional 7*24 hours support
Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line
Portable Detectors
Minimeta Micmeta YT-1200H-S SKY3000 SKY2000 SKY8000 SKY1000 MAXMETA
Fixed Systems
YT-95H YT-98H YT-96H SG100 SG200
Controllers
YT-1100H YT-1600H YT-1800H
Particle Counters
AQD5000 SKY6000-PM SKY2000-PM
Safegas gas detection product portfolio overview showing complete product line
