Industrial Suction Type Ammonia Gas Monitor SKY2000 with Sound Light Vibration Alarm
Short Introduction
SKY2000 is a pumping portable ammonia gas detector with built-in sampling pump, IP66 protection and Ex ia IIC T4 Ga explosion-proof certification. It supports zero & span calibration, one-key factory reset, optional 100,000 records data logging and Chinese/English LCD backlight display, widely used in refrigeration, fertilizer and chemical industry ammonia leakage inspection.
Product Overview
SKY2000 is a high-response suction-type gas detector fitted with internal sampling pump for fast gas extraction. Its high-strength engineering plastic housing reaches IP66 ingress protection and Ex ia IIC T4 Ga explosion-proof standard. This NH3 customized version features two selectable measuring ranges and 1ppm resolution, with stable precision and quick response. Calibration, unit switching and data storage functions are integrated to satisfy diverse on-site sampling testing needs.
Introduction to Ammonia (NH3)
Ammonia is corrosive and irritant toxic gas generated from cold storage, fertilizer plants and livestock farms. Low concentration irritates eyes and respiratory tracts, while high concentration causes severe pulmonary edema. It also forms flammable air mixtures. The built-in pump can actively draw gas from confined pipelines and enclosed spaces for accurate concentration testing.

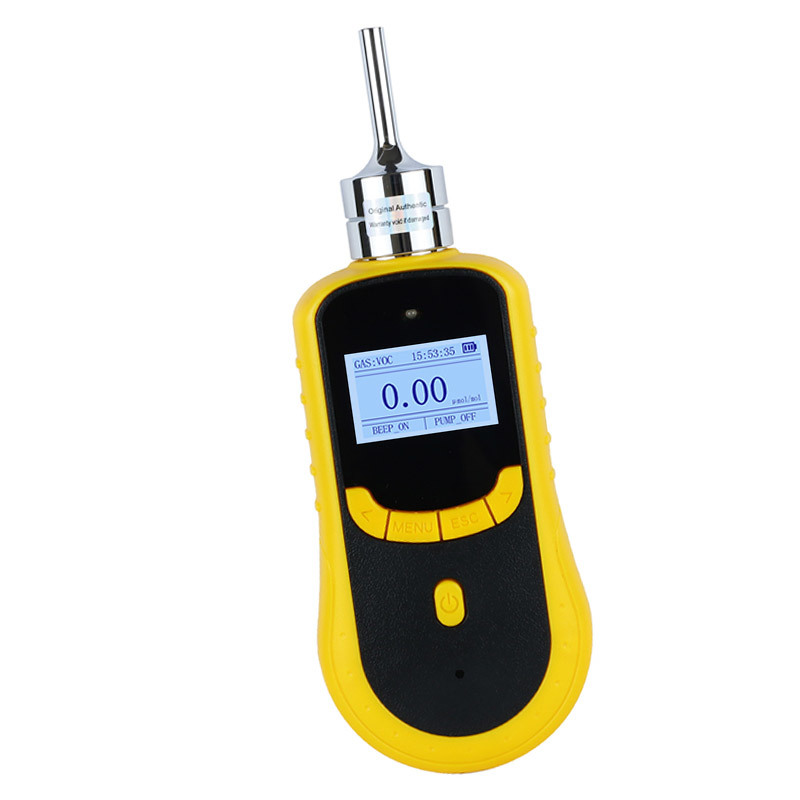

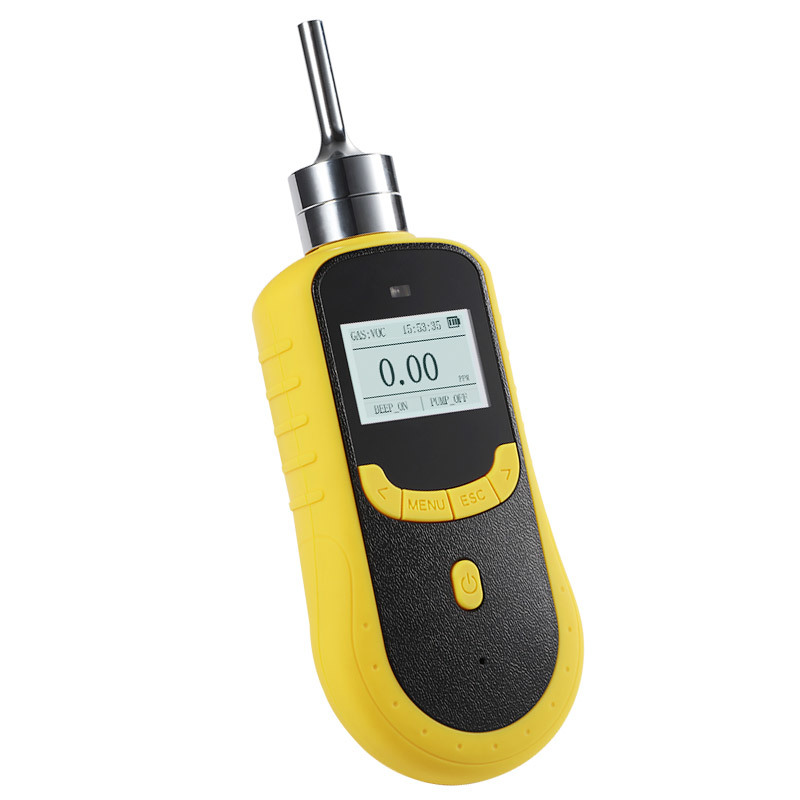

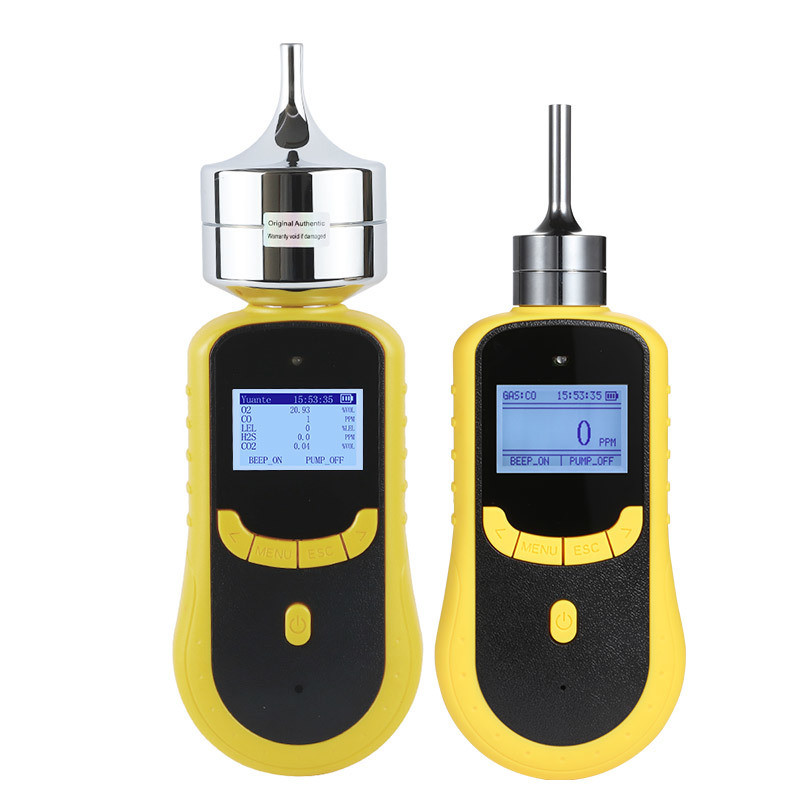

Product Pictures
Key Technical Specifications
| Parameter |
Value |
| Model |
SKY2000 |
| Detected Gas |
Ammonia (NH3) |
| Detection Principle |
Electrochemical |
| Optional Measuring Range |
0-2000ppm / 0-5000ppm |
| Resolution |
1ppm |
| Precision |
≤±1-5%F.S |
| Response Time (T90) |
≤20S |
| Recovery Time |
≤10S |
| Repeatability |
≤±1% |
| Linearity Error |
≤±1% |
| Annual Zero Shift |
≤±1% F.S/year |
| Sampling Method |
Built-in internal sampling pump |
| Display |
LCD dot matrix with backlight, Chinese & English switchable |
| Unit |
Freely switchable gas concentration units |
| Alarm Mode |
Sound, light, vibration triple alarm |
| Explosion-proof Grade |
Ex ia IIC T4 Ga |
| Protection Class |
IP66 |
| Working Temperature |
-20℃ ~ 50℃ |
| Working Humidity |
0-95%RH (non-condensing) |
| Data Logging (Optional) |
Store up to 100,000 readings, export via USB to PC software |
| Calibration Function |
Zero calibration & span calibration supported |
| Factory Reset |
One-key restore factory parameters |
| Continuous Working Time (pump off) |
100h |
| Dimension |
2057532mm |
| Weight |
300g |
Main Features
- Built-in high-flow sampling pump for active gas extraction from pipelines and confined spaces, response time ≤20s
- Imported electrochemical NH3 sensor, dual optional measuring ranges with 1ppm resolution and stable measurement performance
- High-strength engineering plastic shell with IP66 rating, resistant to industrial dust and water splashes
- Ex ia IIC T4 Ga intrinsic safety certification, applicable for flammable and explosive work areas
- Backlit bilingual LCD display, freely switchable concentration units to meet different testing standards
- Independent zero and span calibration to effectively reduce long-term measurement drift
- One-key factory reset for quick parameter recovery after misoperation
- Optional high-capacity data logging module that stores 100,000 groups of data and supports USB export
- Triple sound, light and vibration alarm for clear risk prompts in noisy and dim environments
- Low zero shift, superior repeatability and linearity to guarantee long-term monitoring stability
- Up to 100 hours continuous operation with pump shut down for full-day outdoor inspection
Typical Applications
Cold storage & refrigeration factory liquid ammonia pipeline leakage detection
Nitrogen fertilizer production workshop ammonia concentration monitoring
Livestock and poultry breeding farm waste gas inspection
Chemical synthesis plant ammonia process safety patrol
Sewage treatment plant closed tank pre-entry gas detection
Metallic surface treatment workshop ammonia mist monitoring
Environmental protection site sampling and emission testing

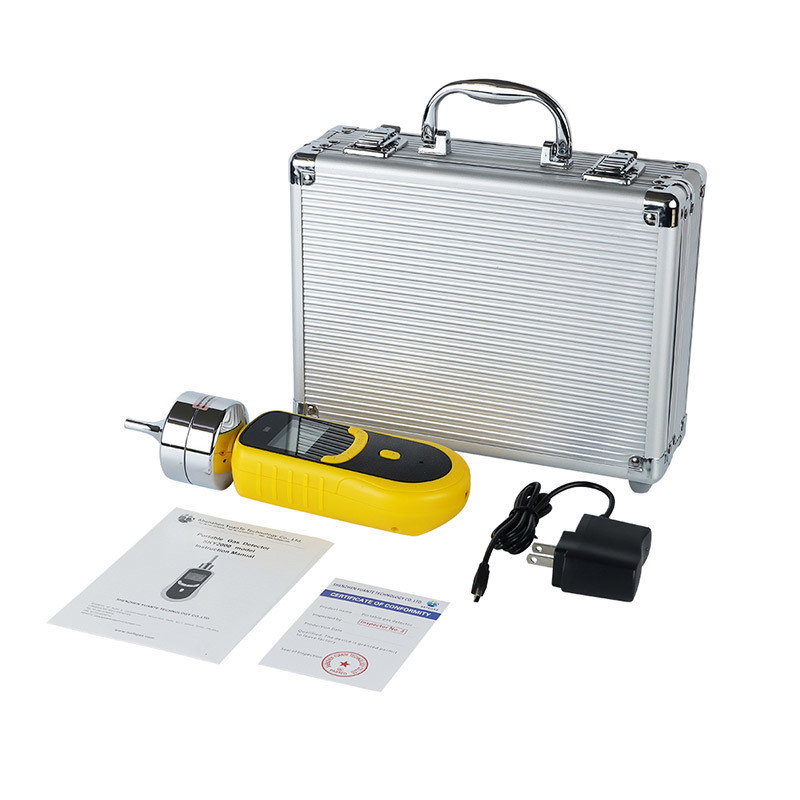

Standard Package
- SKY2000 portable gas detector ×1
- User manual ×1
- Certificate of conformity & warranty card ×1
- Charger ×1
- Premium aluminum alloy portable carrying case ×1 Optional accessory: Data logging storage module
FAQ
Q1: What gas is this SKY2000 customized to detect?
A: This unit is configured for ammonia (NH3). Sensors for CO, H2S, O2, LEL are also replaceable upon request.
Q2: What measuring ranges are available for NH3?
A: Two optional ranges: 0-2000ppm and 0-5000ppm with 1ppm resolution.
Q3: Does this detector support active pumping sampling?
A: Yes, an internal sampling pump is built for gas extraction from pipelines and confined spaces.
Q4: What are its explosion-proof and dust/water resistance ratings?
A: Explosion-proof grade Ex ia IIC T4 Ga, IP66 dust and splash resistant.
Q5: Are calibration and factory reset functions available?
A: Zero & span calibration are supported; one button can restore factory settings.
Q6: Can test data be stored and exported?
A: Data logging is optional, capable of storing 100,000 readings and exporting records via USB to PC software.
Q7: How long can the detector work continuously?
A: It can run up to 100 hours continuously when the sampling pump is turned off.
Q8: What alarm types does it have?
A: Simultaneous sound, light and vibration triple alarm reminder.
Q9: Does the screen support bilingual display?
A: The backlight LCD switches between Chinese and English, and gas concentration units are adjustable.
Q10: What are the product dimensions and weight?
A: Size 2057532mm, weight 300g.
