Portable Nitrogen Gas Detector for Food Packaging with 0-100%VOL Range and ATEX Certification
Portable Gas Detector Detect N2 Nitrogen Concentration In Food Packaging 0-100%VOL ATEX Certification Food Preservation
Product Overview
SKY2000 series gas detector is a high-precision, quick-response gas measuring equipment. The built-in sampling pump features fast sampling speed and large flow rate, ensuring optimal detector response time. With its unique design, compact size, and convenient transportation features, this detector is built for various industrial applications.
The SKY2000 nitrogen detector is equipped with a built-in sampling pump featuring 10-level adjustable pump suction and high flow rate up to 800ml/min. This advanced pumping system ensures rapid and accurate gas detection response times.
The detector includes two specialized needles - one inlet and one outlet. These needles are inserted into food packaging to extract gas from the packaging bag through the instrument's built-in pump. The one suction, one release mechanism maintains gas balance within the packaging bag during testing.
Constructed with high-strength special engineering plastic, the housing is suitable for various industrial environments and conditions. We are committed to providing reliable, accurate, and safe gas detection solutions.

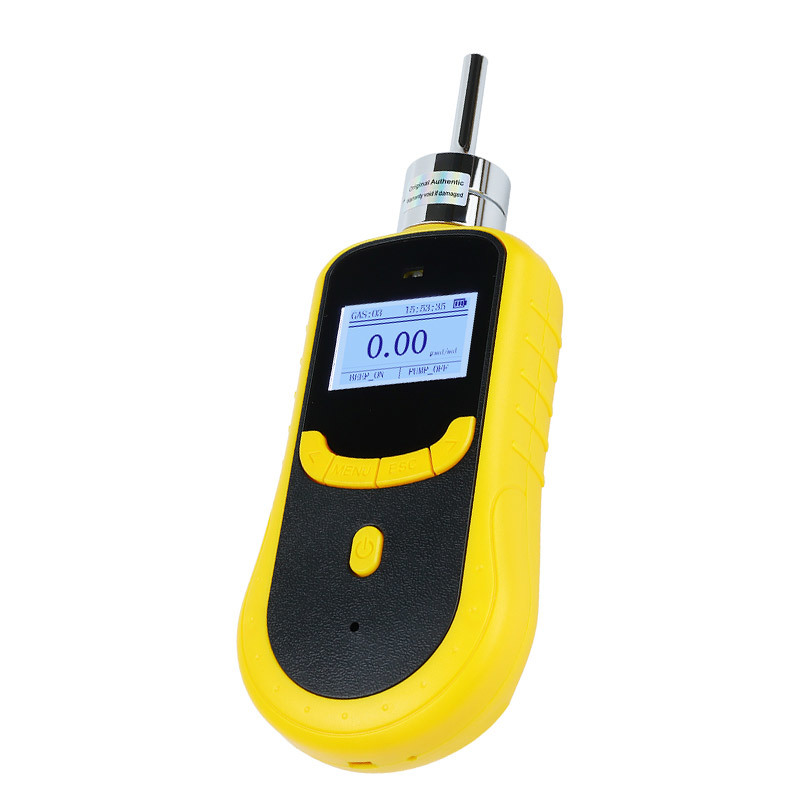

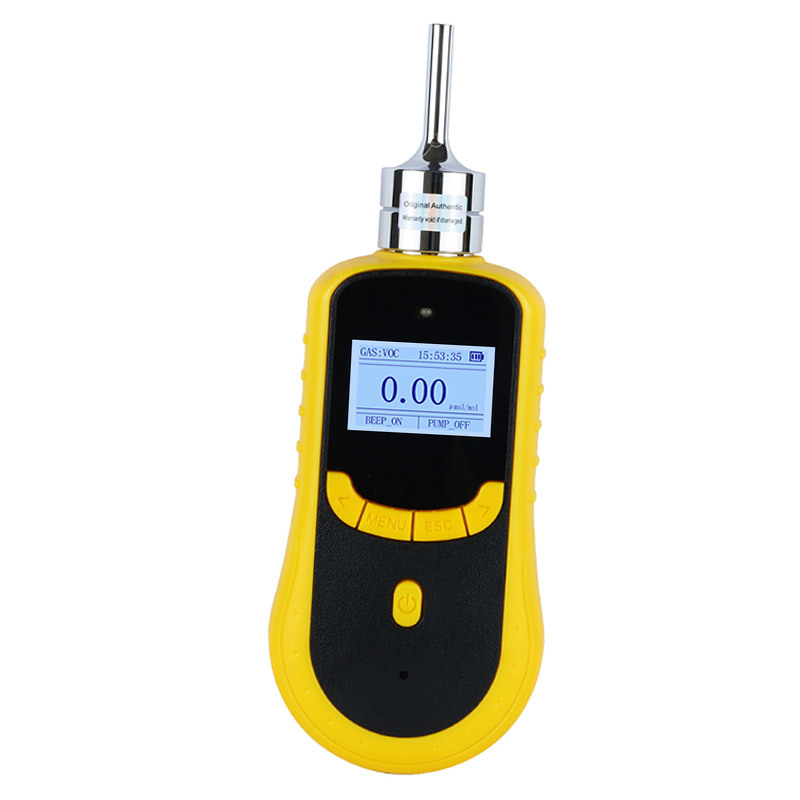

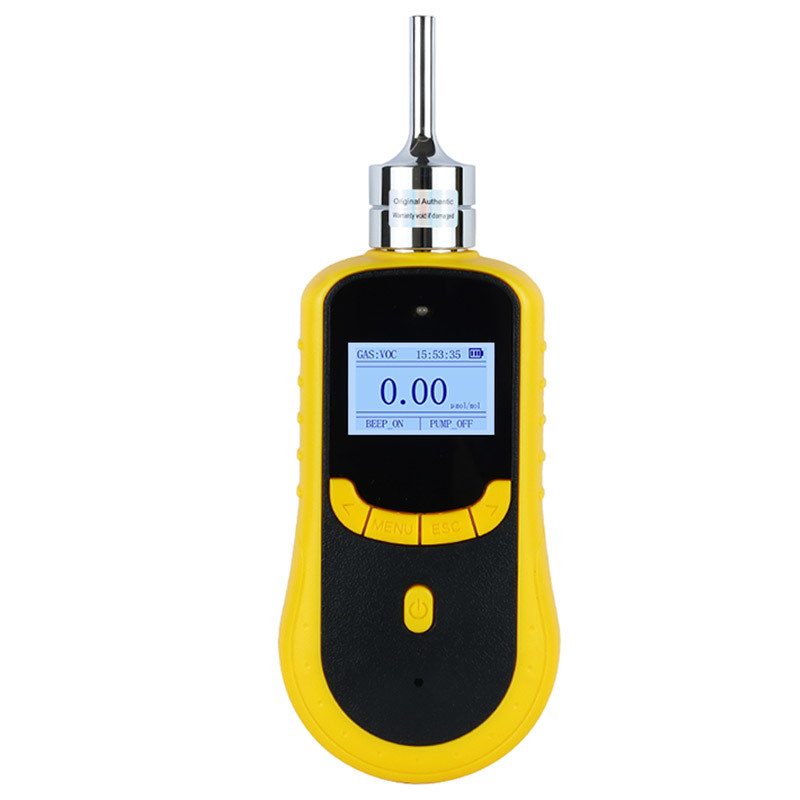

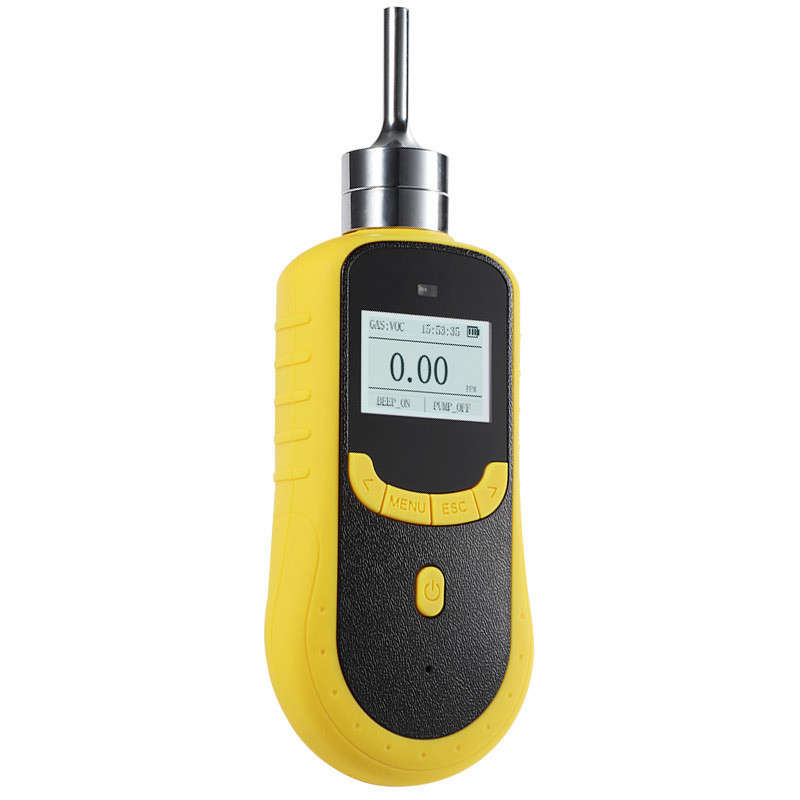

Product Images
Product Advantages
- Employing original imported first-class brand sensors
- (Optional) High-speed data transmission via USB for data downloading and printing
- LCD dot matrix display showing gas type, unit, concentration, and local time
- Support for Chinese and English operation with easy language switching
- Built-in micro sampling pump with 10 adjustable suction levels
- Explosion-proof certification: Ex ia IIC T4 Ga
Product Functions
- Monitor specified gas concentration in environment and enclosed spaces with alarm capability
- Automatic calibration and zero calibration functions for accurate and reliable detection
- One-button factory reset for trouble-free operation
- Large capacity lithium polymer rechargeable battery
- Adjustable pump suction with controllable suction amount
- High-strength engineering plastic shell: non-slip, waterproof, dustproof, and explosion-proof
- Elegant and exquisite aluminum alloy suitcase for protection and transport
Product Specifications
| Parameter | Specification |
|---|
| Gas Detected | N2 |
| Measure Range | 0-100%VOL |
| Detection Principle | Electrochemical |
| Instrument Lifespan | Sensors: 2-3 years, Instruments: ≥5 years |
| Linearity Error | ±2%FS |
| Response Time | T90<30S (25℃) |
| Sampling Method | Pumping Suction |
| Resolution | 1%VOL |
| Signal Output (Optional) | High-speed USB data transmission for downloading and printing |
| Operating Language | Chinese/English |
| Temperature Range | -20℃～50℃ |
| Explosion-Proof Rating | Ex ia II CT4 |
| Alarm Mode | Sound, Light, Vibration |
| Dimensions | 205*75*32mm |
| Recovery Time | ≤10S |
| Display | LCD Dot Matrix |
| Gas Unit | Switchable Units |
| Humidity Range | 0-90%RH |
| Protection Degree | IP66 |
| Operating Time | 100h (pump off) |
| Weight | 300g |
Standard Configuration
- SKY2000 Detector Unit
- Aluminum Suitcase
- Charging Adapter
- Instruction Manual
- Qualification Certificate
- Two Needles
Why Choose Us?
- R&D Team Experience: Over 25 years
- Company Certifications: ISO9001, ISO45001
- Product Certifications: IECEx (the only one in China), ATEX, CE
- Delivery Time: 5-7 days
- Yearly Production Capacity: 80,000 units
- Service: Professional sales staff providing 7*24 hours support
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company specializing in the design, production, and sales of gas detection equipment and systems for 16 years. With "gas detector" as our core product, we have developed complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Product Line
Our comprehensive product range includes portable types, fixed types, and controller panels:
- Portable Types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
- Fixed Types: YT-95H, YT-98H, YT-96H, SG100, SG200
- Controller Panels: YT-1100H, YT-1600H
Certifications
Our products hold comprehensive international certifications including IECEX, ATEX, CE, TEST Report, ISO 9001, and ISO 45001. Our products have obtained international explosion-proof certifications from IECEX and ATEX.
Corporate Clients
We are proud to serve major international companies including Huawei, Coca-Cola, Samsung, Nestlé, and many others.
Frequently Asked Questions
Q1: What is a gas detector?
A1: A gas detector is an instrument for detecting gas leakage concentration, including portable gas detectors and fixed gas detectors.
Q2: What does a gas detector detect?
A2: Gas detectors can detect combustible gases such as natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc., and toxic gases including carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide, and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
