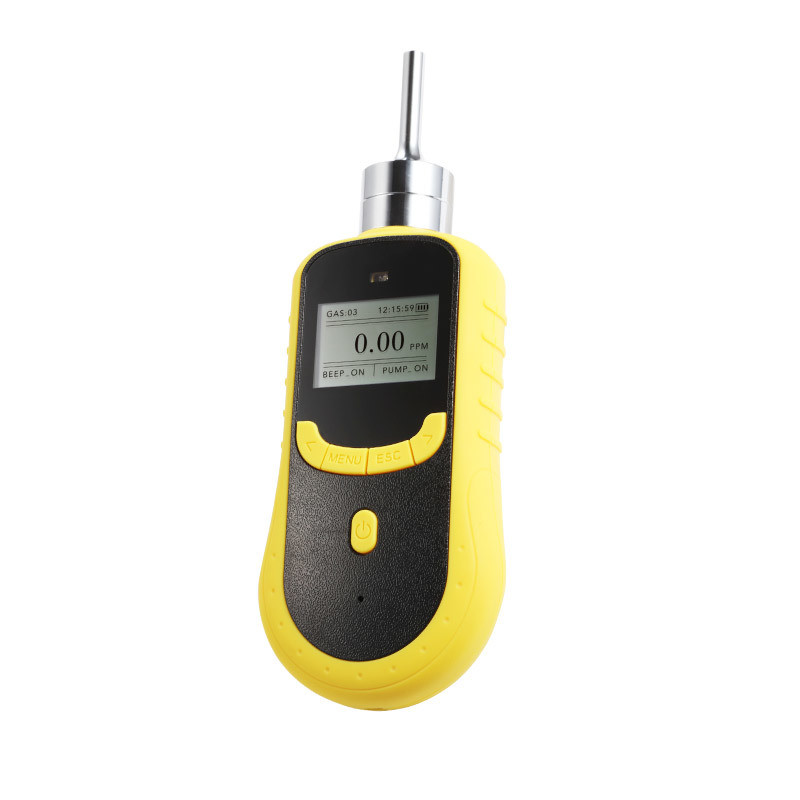

Industrial Suction-type PH3 Tester Gas Detector for Grain Silo & Ship Cabin Fumigation Inspection

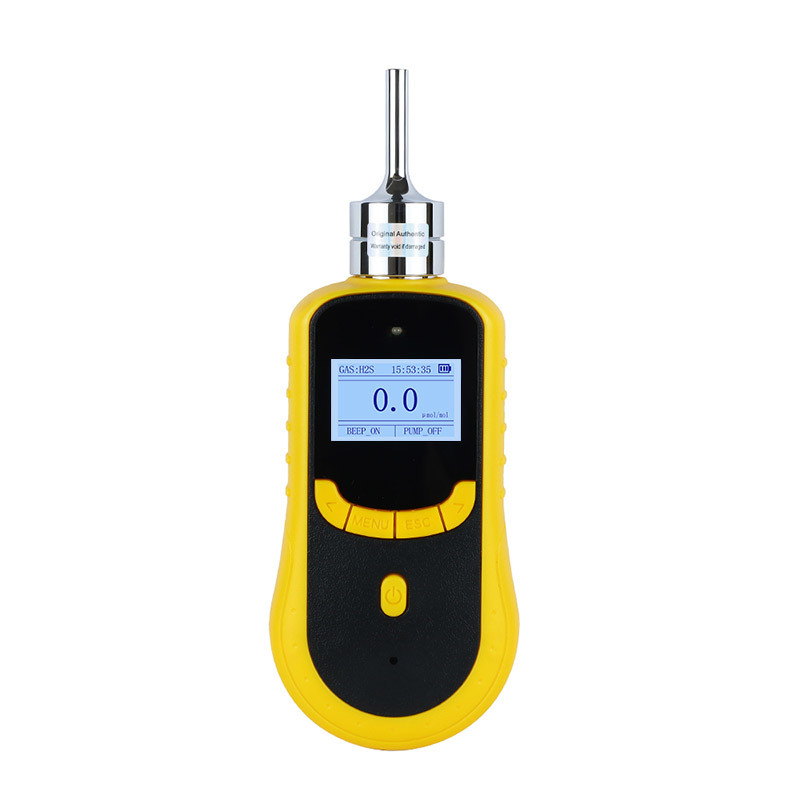

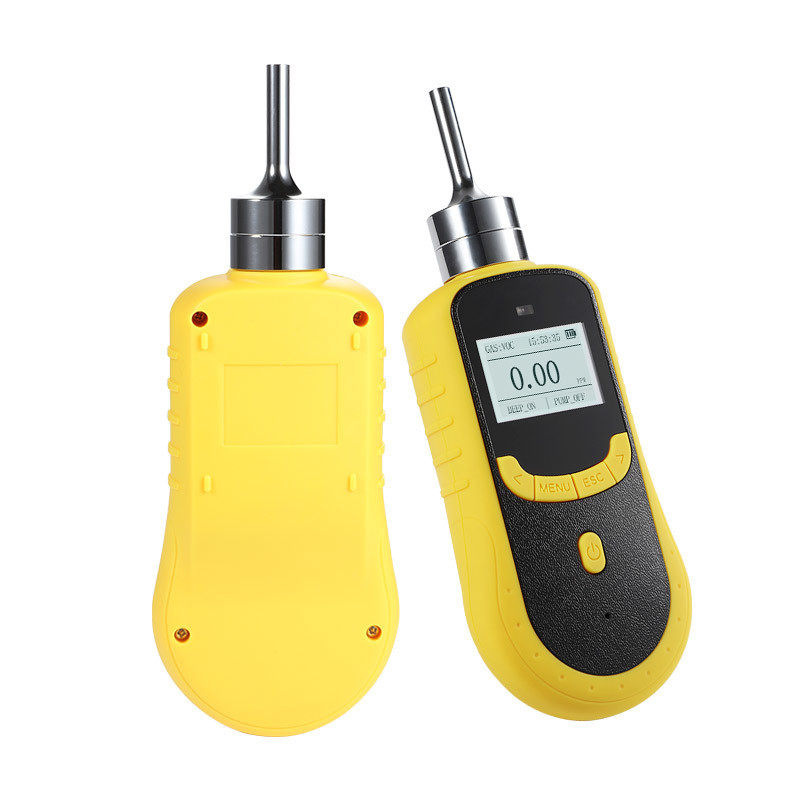

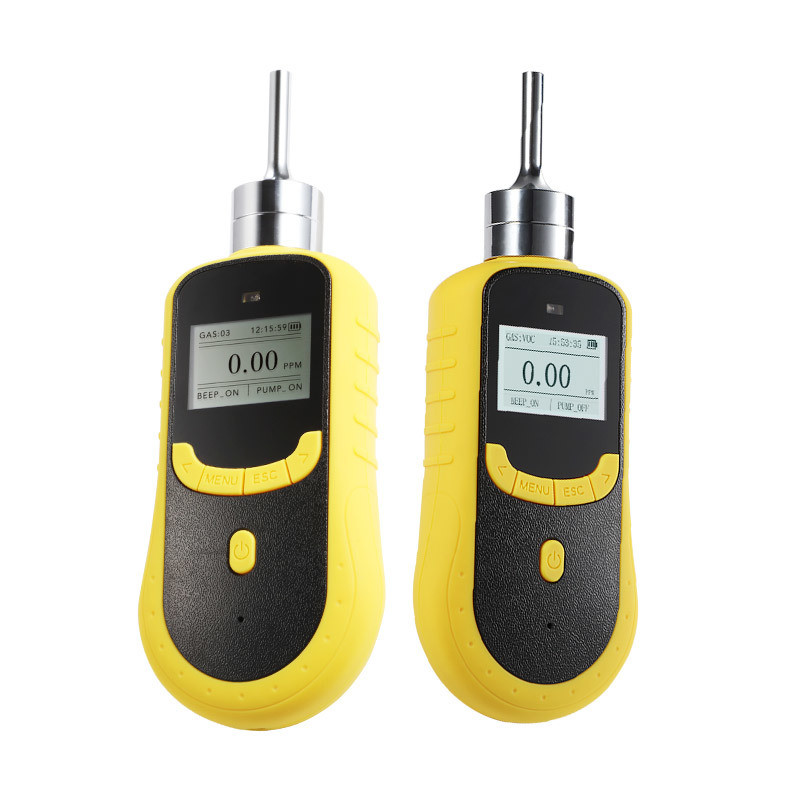

Product Pictures

Key Technical Specifications

Main Features

• Specialized electrochemical PH3 sensor, multiple optional ranges & resolutions to match different grain-fumigation inspection standards
• IP66 heavy-duty engineering-plastic shell, resistant to dust and splashes for granary and port field environments
• Independent zero-and-span calibration reduces long-term measurement drift and guarantees reading accuracy
• One-key factory reset for quick parameter recovery after mis-operation
• Optional high-capacity data-logging module stores 100,000 measurement records for post-fumigation compliance filing via USB export
• Combined sound-light-vibration triple alarm for obvious risk alerts inside noisy granary and port-warehouse sites
• Low annual zero-shift, outstanding repeatability and linearity for long-duration on-site patrol

Typical Applications

• Grain silo phosphine fumigation residual-concentration detection
• Fur and raw-material warehouse fumigation-safety monitoring
• Ship cargo-hold pre-entry PH3 residue inspection
• Grain-processing plant workshop toxic-gas patrol
• Port grain-cargo quarantine fumigation-site testing
• Agricultural storage facility routine safety assessment

FAQ

1. Q1: What gas is this SKY2000 configured to detect?

   A: This version is customized for phosphine (PH3). Sensors for CO, H2S, O2, LEL and other gases can be swapped upon requirement.

2. Q2: What measuring ranges and resolution choices are available for PH3?

   A: Ranges:0-5/20/50/100/500/1000ppm; optional resolution: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm.

3. Q3: Does this instrument adopt active pumping sampling?

   A: Yes, internal sampling pump is built-in, suitable for gas extraction from enclosed silos and cabins after fumigation.

4. Q4: What are its explosion-proof and environmental-protection grades?

   A: Explosion-proof grade Ex ia IIC T4 Ga; IP66 dust-and-splash resistant.

5. Q5: Are calibration and factory-reset functions available?

   A: Zero-calibration and span-calibration are supported; one button restores factory settings.

6. Q6: Can test data be stored and exported externally?

   A: Data logging is optional; it can save 100,000 readings and export data to PC by USB and matching software.

7. Q7: How many working hours can be achieved when switching the pump off?

   A: Maximum 100 hours of continuous operation with the sampling pump turned off.

8. Q8: What alarm notification modes are integrated?

   A: Synchronous sound, light and vibration triple-alarm reminder.

9. Q9: Does the display support multi-language switching?

   A: Dot-matrix LCD supports Chinese-English switching and adjustable gas-concentration units.
