Name: Fixed VOC PIDGas Detector with Built-in Sampling Pump Fast Response 15-30s and RS485 4-20mA Output
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-98H
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Detected:	VOC	Detection Principle:	PID
Power:	12-24V DC	Accuracy:	≤±2-5%FS
Response Time(T90):	15-30s	Repeatability:	≤±1%
Pump Flow:	0.35-0.5 L/Min	Temperature:	–20℃～55℃
Alarm(Optional):	Buzzer, Alarm Status Prompt On The Display Screen, High And Low Alarm Values Can Be Set By Customer	Humidity(no Condensation):	0-95%RH(no Condensation)
Highlight:	Built-in Sampling Pump Fixed VOC Gas Detector , Fast Response Multi Gas Detector , RS485 4-20mA Output PID Gas Detector

Product Description

Chemical Plant TVOC Emission Online Inspection - Built-in Sampling Pump with Fast Response PID Sensor

Build in Pump Fixed VOC Detector with RS485 and 4-20mA Output

Product Overview

The YT-98H is a high-end fixed gas detector designed for critical gas monitoring applications, particularly in the oil and gas industry.

Specifications

Parameter	Specification
Gas Detected	VOC
Detection principle	PID
Install method	Wall-mounted, piping type, flow-type
Measure Range	0-100PPM
Resolution	0.01PPM
Accuracy	≤±2-5%FS
Signal Output	4-20MA, RS485, relay
Response Time(T90)	15-30s
Recovery Time	≤10S
Repeatability	≤±1%
Display	2.4-inch color display, resolution 320*240
Operating language	English/Chinese
Temperature	-20ºC~55ºC
Humidity	0-95%RH
Explosion-Proof	IECEX: Ex db IIC T6 Gb ATEX: Ex db IIC T6 Gb
Degree of protection	IP66
Alarm mode	Sound, light
Operating time	24h
Dimensions	432715cm
Weight	4.6kg

Key Features

Safety Certifications: Certified under IECEx and ATEX standards for deployment in explosive atmospheres
Detection Capabilities: Multi-gas detection supporting up to 6 toxic gases with high-efficiency vacuum pump (12,000+ hour lifespan)
Connectivity & Integration: Supports 4-20mA, relays, HART, and Modbus with optional wireless modules
User-Centric Features: 2.4-inch HD color screen with bilingual menus and customizable alerts
Robust Protection: IP65 rated with explosion-proof, lightning-resistant, and surge-protected housing

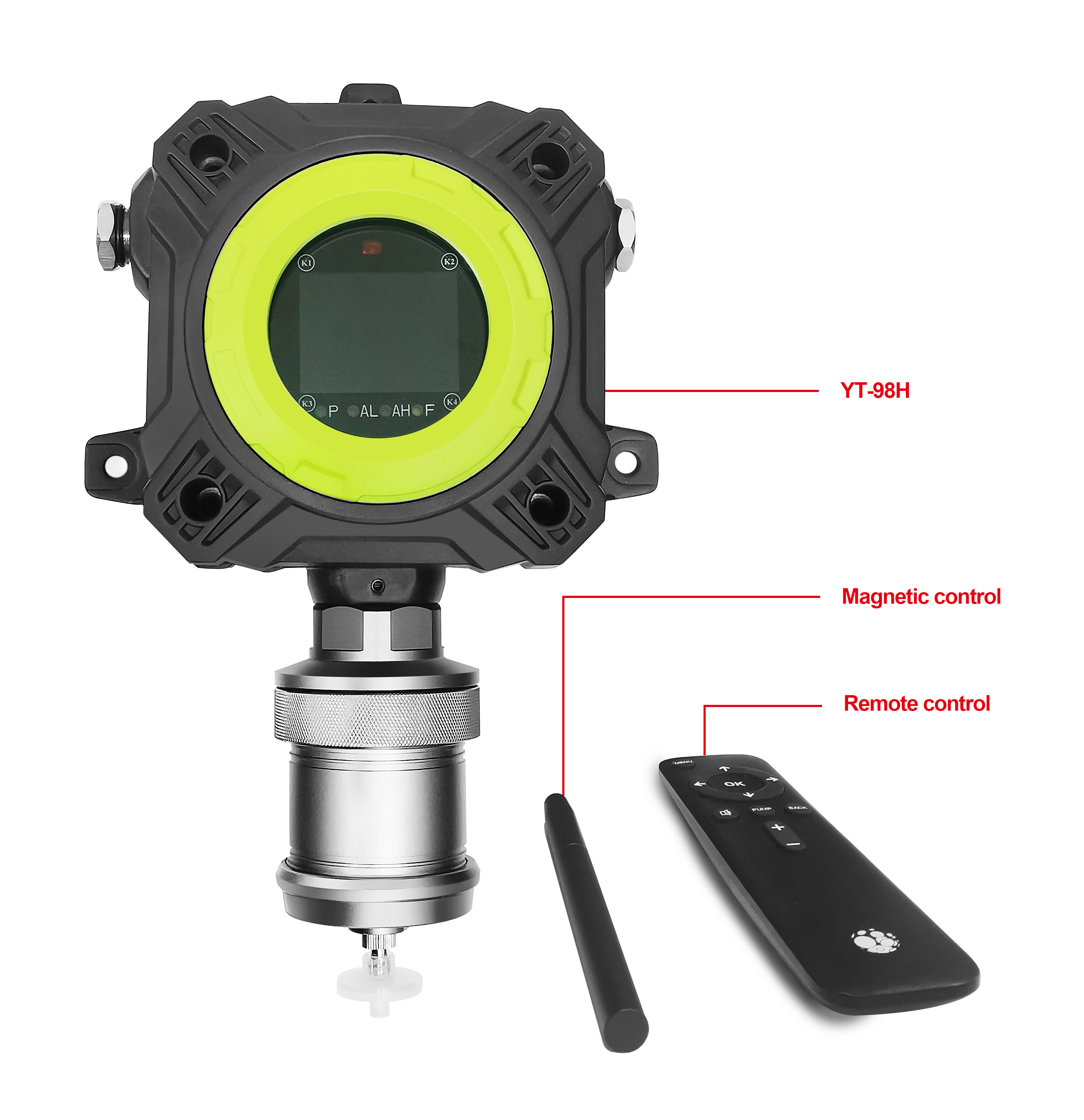

Product Images - YT-98H (with display)

Product Images - YT-98H-A (with display and alarm light)

Applications

Petrochemical & Chemical Industry
Municipal Engineering & Utilities
Agricultural & Environmental Protection
Electronic
Food & Pharmaceutical Industry

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

Product Line

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEx and ATEX, ensuring product quality, which are comparable to international brand, but our products with competitive price.

Company Partners

Huawei, Cocacola, Samsung, Nestel and so on.
