Name: IECEx ATEX Certified HF Gas Detector with Electrochemical Detection and 4-20mA RS485 Output
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-98H
Price: 2,210.00 USD
Availability: InStock

Detail Information

Gas Detected:	HF	Detection Principle:	Electrochemical
Power:	12-24V DC	Accuracy:	≤±2-5%FS
Response Time(T90):	15-30s	Repeatability:	≤±1%
Pump Flow:	0.35-0.5 L/Min	Temperature:	–20℃～55℃
Alarm(Optional):	Buzzer, Alarm Status Prompt On The Display Screen, High And Low Alarm Values Can Be Set By Customer	Humidity(no Condensation):	0-95%RH(no Condensation)
Highlight:	Electrochemical Detection HF Gas Detector , 4-20mA RS485 Output Hydrogen Fluoride Analyzer , IECEx ATEX Certified Flue Gas Analyzer

Product Description

Environmental Flue Gas HF Pollutant Continuous Sampling Test HF Gas Detector Analyzer With Signal Output 4-20mA RS485

Product Overview

The YT-98H is a high-end fixed gas detector designed for critical gas monitoring applications, particularly in the oil and gas industry.

Specifications

Parameter	Specification
Gas Detected	HF
Detection principle	Electrochemical
Install method	Wall-mounted, piping type, flow-type
Measure Range	0-100PPM
Resolution	0.1PPM
Accuracy	≤±2-5%FS
Signal Output	4-20MA, RS485, relay
Response Time(T90)	15-30s
Recovery Time	≤10S
Repeatability	≤±1%
Display	2.4-inch color display, resolution 320*240
Operating language	English/Chinese
Temperature	-20ºC~55ºC
Humidity	0-95%RH
Explosion-Proof	IECEX: Ex db IIC T6 Gb ATEX: Ex db IIC T6 Gb
Degree of protection	IP66
Alarm mode	Sound, light
Operating time	24h
Dimensions	432715cm
Weight	4.6kg

Key Features

Safety Certifications: Certified under IECEx and ATEX standards for deployment in explosive atmospheres
Detection Capabilities: Supports simultaneous monitoring of up to 6 toxic gases with high-efficiency vacuum pump
Connectivity & Integration: Supports 4-20mA, relays, HART, Modbus, and optional wireless modules
User-Centric Features: 2.4-inch HD color screen with bilingual menus and customizable alerts
Robust Protection: IP65 rated with explosion-proof, lightning-resistant, and surge-protected housing

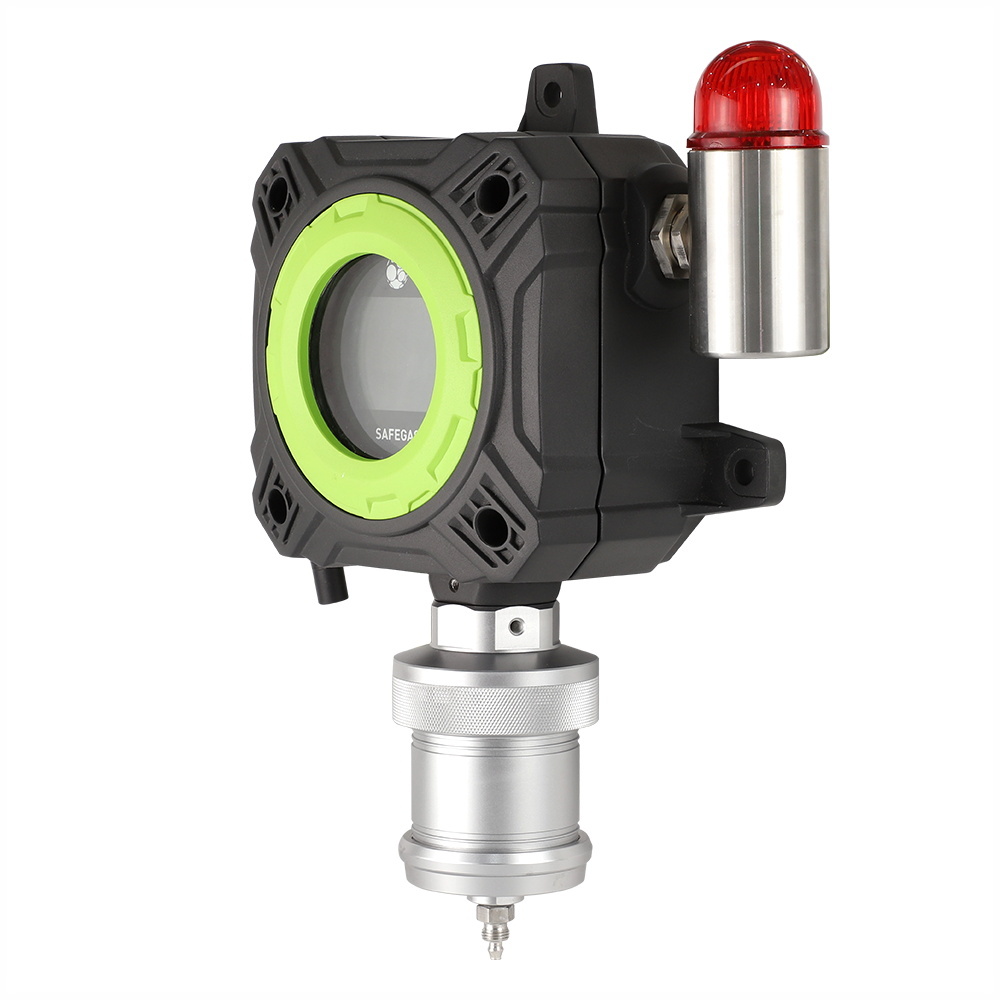

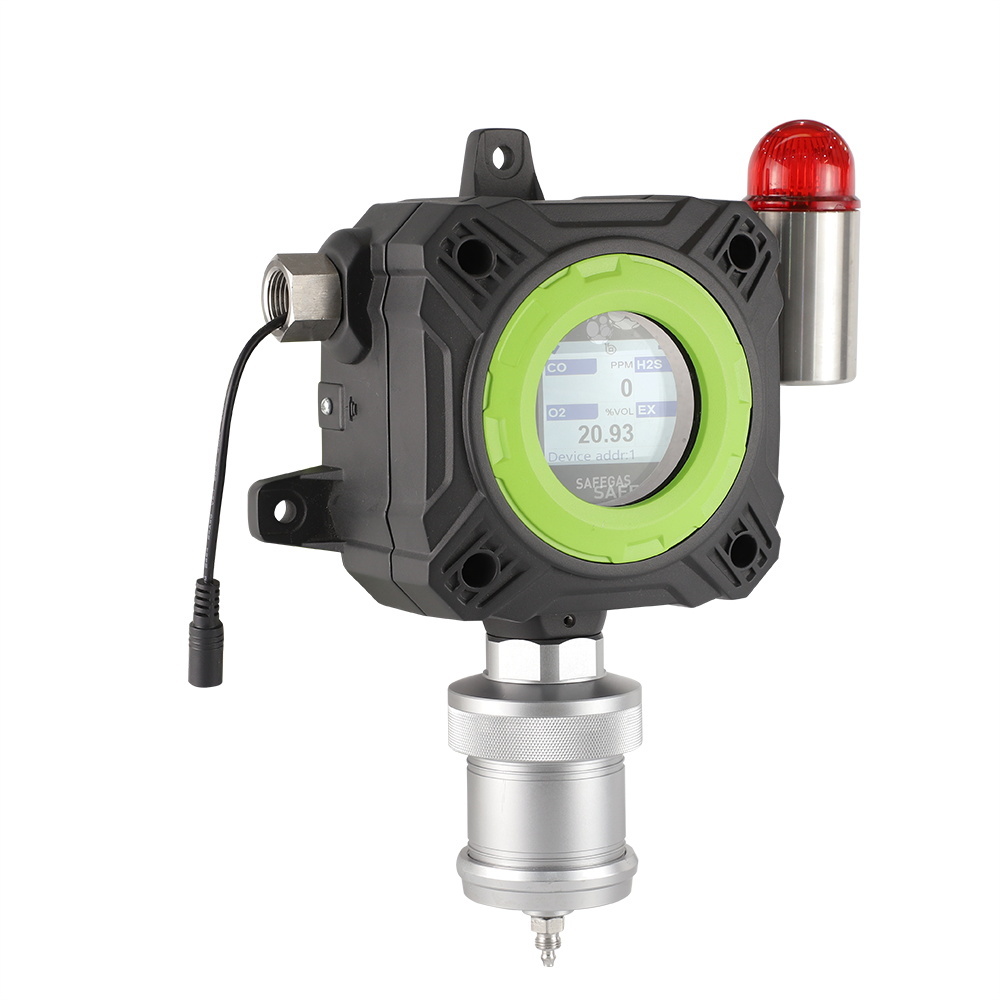

Product Images - YT-98H

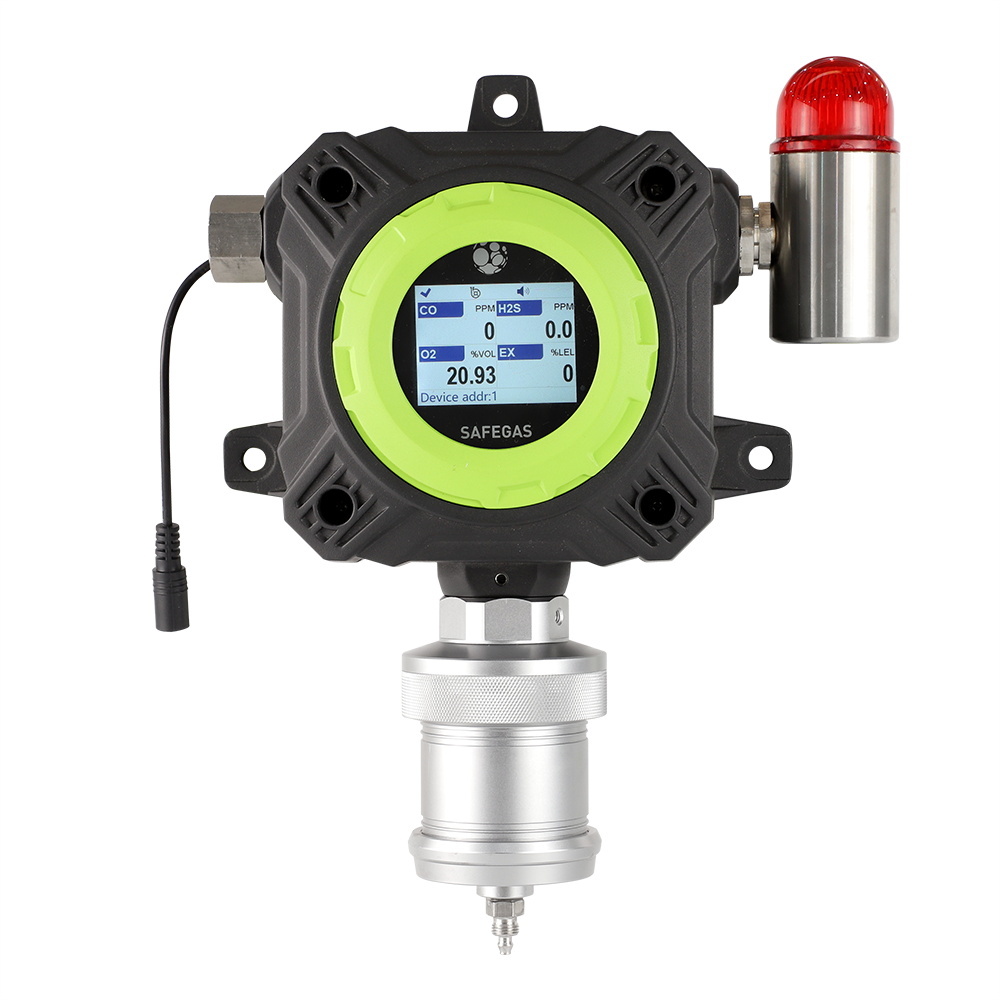

Product Images - YT-98H-A

Applications

Petrochemical & Chemical Industry
Municipal Engineering & Utilities
Agricultural & Environmental Protection
Electronic
Food & Pharmaceutical Industry

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With "gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

Product Line

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEx and ATEX, ensuring product quality, which are comparable to international brand, but our products with competitive price.

Company Partners

Huawei, Cocacola, Samsung, Nestel and so on.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/IECEX
Model Number:	YT-98H

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton(432715cm)
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	3000 pieces per month
