SKY8000 High-Capacity Portable Gas Analyzer
The SKY8000 is a high-capacity portable gas analyzer engineered for demanding applications across petrochemical operations, environmental monitoring, and laboratory research. It combines robust measurement capabilities with a portable form factor, delivering reliable gas analysis wherever it is needed.
Product Overview
SKY8000 is a high-performance portable multi-gas analyzer capable of detecting up to 18 gases at the same time. It supports multiple sensor principles including catalytic combustion, infrared, electrochemical and PID. Measuring ranges and resolution are fully customizable to match diverse test requirements. Equipped with built-in sampling pump, multi-layer filtering, 8G SD-card data storage and rich optional functions. IP65 enclosure with Ex ic IIC T3 Gc explosion-proof grade, suitable for laboratory research and complex industrial-site gas analysis.
Introduction To Multi-Gas Combined Detection
Various industrial sites, environmental-monitoring projects and laboratory-research scenarios contain mixed-component gas atmospheres. Single-gas instruments cannot capture full-field gas information. SKY8000 can be flexibly configured with different sensor combinations to simultaneously acquire multiple-gas concentration data, supporting comprehensive gas-component evaluation for research, spot-check and compliance-verification work.
Detectable Gases

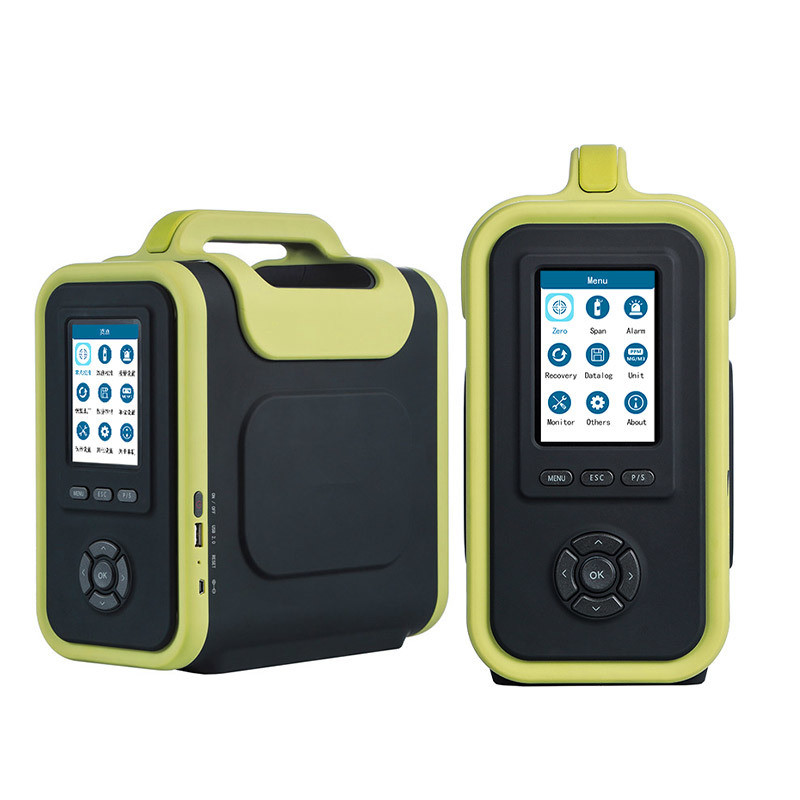

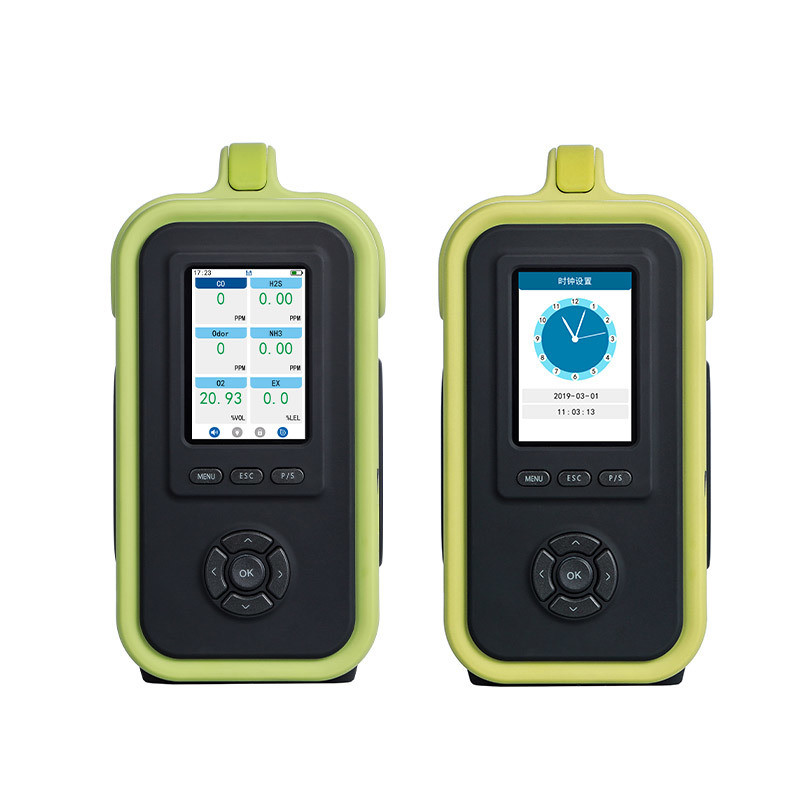

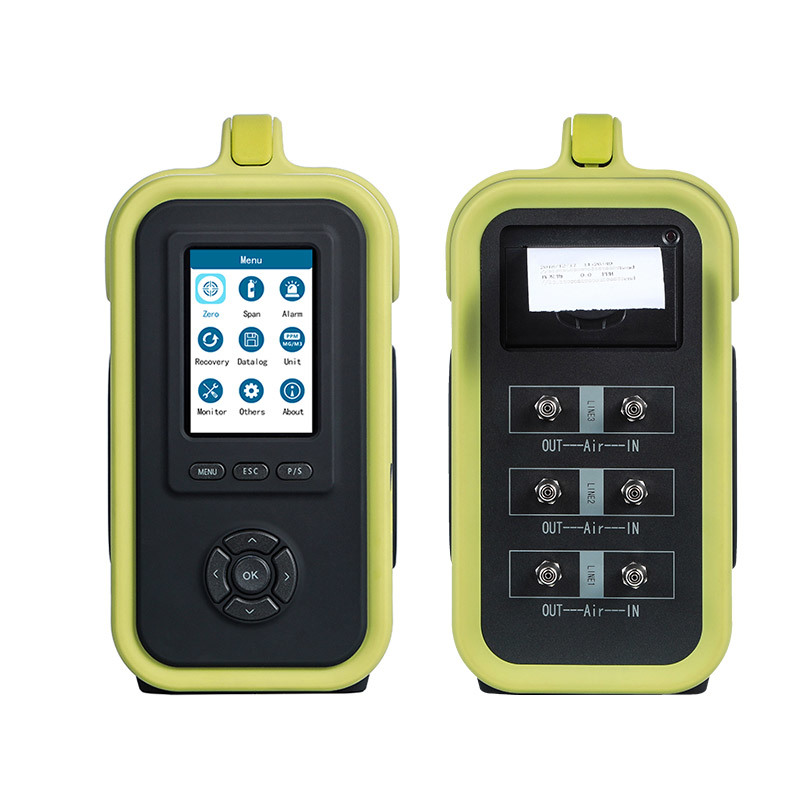

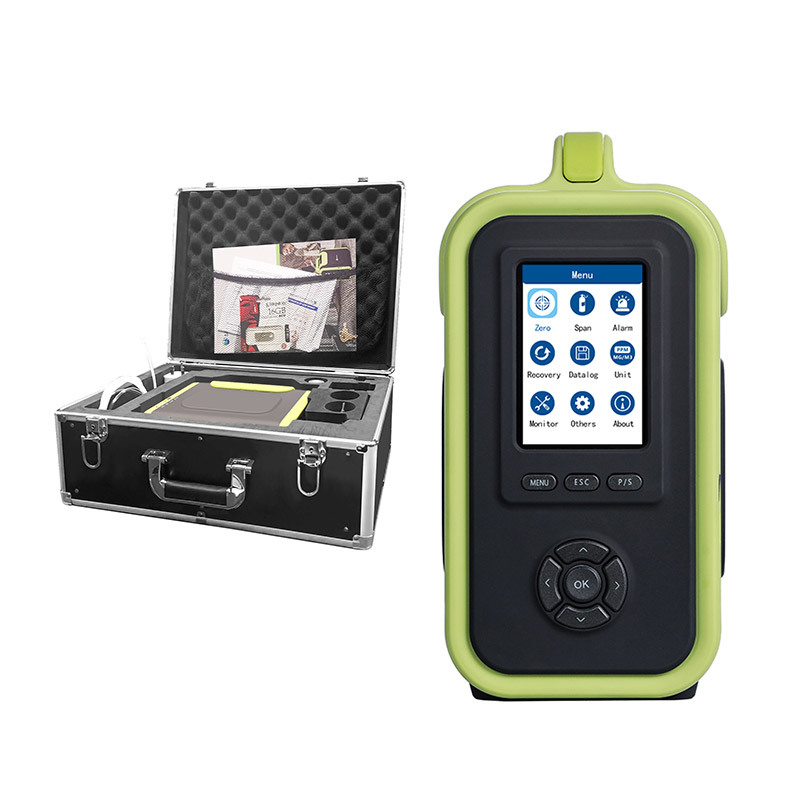

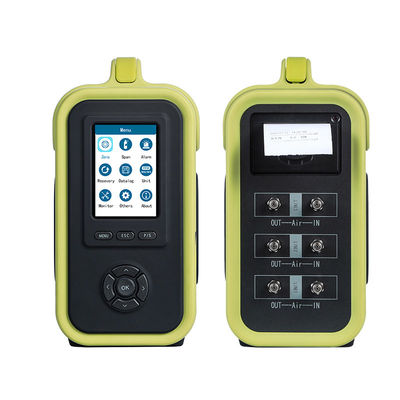

Product Pictures
Key Technical Specifications
|
Parameter
|
Value
|
|
Model
|
SKY8000
|
|
Max Detectable Gases
|
Up to 18 gases simultaneously
|
|
Supported Sensor Principles
|
Catalytic Combustion, Infrared, Electrochemical, PID and more
|
|
Optional Custom Measuring Ranges
|
0～1/10/100/1000/5000/50000/100000 PPM；0-100mg/L,200mg/L；0-100%LEL；0-10%,20%,50%,99.999%,100%Vol；measure range fully optional & customizable
|
|
Resolution
|
Customizable according to sensor configuration
|
|
Precision
|
≤±2%F.S (Higher precision available for customization)
|
|
Pump Flow Rate
|
0-500 cc/Min
|
|
Display
|
3.5-inch HD LCD screen, resolution 320*480; supports single-curve / multi-curve / data-value display switching
|
|
Data Storage
|
Standard 8G SD memory card, auto-recording, configurable logging interval
|
|
Alarm
|
Buzzer, red LED, on-screen alarm status; fault alarm, pump-abnormal alarm, low-battery alarm
|
|
Data Interface
|
RS485, Mini-USB
|
|
Wireless Option
|
Bluetooth, WIFI, LoRa, 4G
|
|
Print Function
|
Optional built-in printer or external Bluetooth printer
|
|
Battery
|
Standard:10000mAh/3.7V lithium-polymer; printer version:5400mAh/11.1V
|
|
Runtime
|
＞32h(single gas);＞24h(six-gas configuration)
|
|
Charging Port
|
Mini-USB
|
|
Explosion-proof Grade
|
Ex ic IIC T3 Gc
|
|
Protection Grade
|
IP65
|
|
Working Humidity
|
0~95%RH (non-condensing)
|
|
Working Temperature
|
-40℃~+70℃; optional high-temp probe for gas up to 1100℃
|
|
Dimension (H × W × D)
|
260*230*120mm
|
|
Weight
|
3700g
|
Main Features
- Supports flexible configuration for 1-18-channel mixed-gas measurement.
- Multiple optional sensor technologies to match different gas-detection targets.
- Built-in sampling pump with adjustable 0-500cc/min flow rate.
- Multi-layer filtering system blocks oil, water and dust from sample gas.
- Switchable display modes: value readout, single-curve and multi-curve graph.
- 8G standard SD-card for large-capacity automatic data logging.
- Rich alarm reminders for pump fault, low-battery and equipment abnormality.
- Multiple optional wireless modules for remote-data transmission.
- Optional built-in / external Bluetooth printer for on-site hard-copy output.
- Optional temperature-humidity monitoring and high-temperature sampling probe.
- Aviation-grade wear-resistant material, IP65 enclosure for complex field environments.
Typical Applications
University & research-institute laboratory multi-gas analysis
Petrochemical refinery complex-site gas spot-check
Metallurgical-plant flue-gas component testing
Mine and tunnel-engineering on-site gas assessment
Inspection & quarantine bureau field-sampling analysis
Environmental-monitoring emergency multi-gas investigation
Standard Package
SKY8000 multi-gas analyzer ×1
Micro-USB charging cable ×1
Sampling probe ×1
1000 mm sampling hose ×1
Water-vapour-smoke filter (3 pcs) ×1
Water trap filter ×1
SD card +U-disk ×1
Aluminum carrying suitcase ×1
User manual, certificate of conformity & warranty card ×1
Optional accessories: built-in / external printer, high-temperature sampling probe, wireless modules
