THT 0-100 PPM Gas Leak Detector SKY2000 with Ex Ia IIC T4 Ga Explosion Proof Grade for Gas Pipeline Field

THT 0-100 PPM Gas Leak Detector SKY2000 with Ex Ia IIC T4 Ga Explosion Proof Grade for Gas Pipeline Field
THT 0-100 PPM Gas Leak Detector SKY2000 with Ex Ia IIC T4 Ga Explosion Proof Grade for Gas Pipeline Field THT 0-100 PPM Gas Leak Detector SKY2000 with Ex Ia IIC T4 Ga Explosion Proof Grade for Gas Pipeline Field THT 0-100 PPM Gas Leak Detector SKY2000 with Ex Ia IIC T4 Ga Explosion Proof Grade for Gas Pipeline Field THT 0-100 PPM Gas Leak Detector SKY2000 with Ex Ia IIC T4 Ga Explosion Proof Grade for Gas Pipeline Field THT 0-100 PPM Gas Leak Detector SKY2000 with Ex Ia IIC T4 Ga Explosion Proof Grade for Gas Pipeline Field
Basic Information
Place of Origin: China
Brand Name: safegas
Certification: CE,ATEX
Model Number: SKY2000
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3-8 days
Payment Terms: T/T
Supply Ability: 100 pcs/day
Get Best Price Contact Now
Detail Information
Gas: THT Detection Principle: Electrochemical
Application: Gas Pipeline,medicine, Pesticides, And Chemical Synthesis Range: 0-100 Ppm
Warranty: One Year Power Supply: 24V DC
Temperature: -20℃～50℃ Humidity Range: 0% To 90% RH
Housing Material: ABS+ Leather Case Language: Chinese/English
Alarm Method: Sound And Light Alarm Packing: Corrosion Resistant Suitcase
Data Logging (Optional): 100,000 Readings Can Be Stored On Device And Downloaded Through PC Software
Highlight:

0-100 PPM Gas Leak Detector

,

Ex Ia IIC T4 Ga Gas Detector

,

Gas Pipeline Field Single Gas Detector

Product Description

 Gas Leak Detector SKY2000 For THT 0-100 ppm

Product Overview

The SKY2000 series is a fast-response, high-accuracy gas measurement device designed for reliable detection in demanding industrial environments. Its internal sampling pump delivers fast sampling speed and high flow rate, ensuring quick response times. The unit features a compact, portable design housed in special high-intensity engineering plastics, making it suitable for a wide range of situations and environments.

Key Features
  • Optional data logging function to export data to PC via USB cable
  • LCD dot matrix display with backlight support
  • Built-in sampling pump for rapid measurement
  • Explosion-proof certified — grade: Ex Ia IIC T4 Ga
  • Span-calibration and zero calibration functions for accurate, reliable detection
  • One-press factory reset
Technical Specifications
Parameter Details
Gas Detected THT; other gases can be specified
Detection Principle Electrochemical
Measure Range 0–100 ppm
Resolution Specified according to application
Precision ≤ ±1%F.S (except for special gases)
Data Logging (Optional) 100,000 readings can be stored on device and downloaded through PC software
Response Time ≤ 20 s
Repeatability ≤ ±1%
Zero Shift ≤ ±1% (F.S/year)
Operating Language Chinese / English
Temperature -20°C ~ 50°C
Explosion-Proof Ex ia II C T4 Ga
Alarm Mode Sound, light, vibration
Dimensions 205 * 75 * 32 mm
Recovery Time ≤ 10 s
Linearity Error ≤ ±1%
Display LCD dot matrix display
Gas Unit Units are switchable
Humidity 0–95%RH
Degree of Protection IP66
Operating Time 100 h (pump off)
Weight 300 g
Product Images

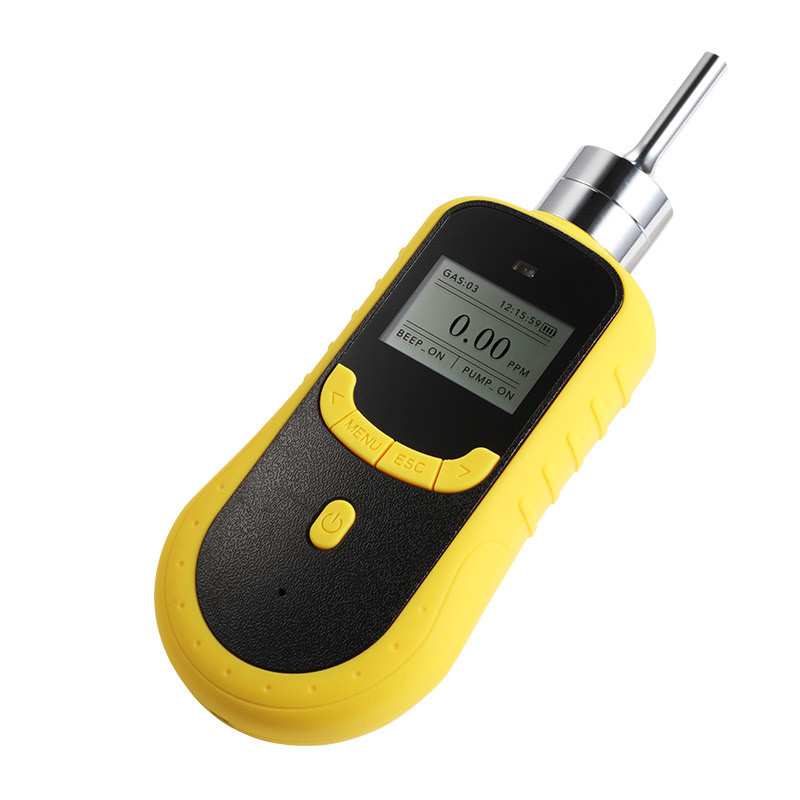

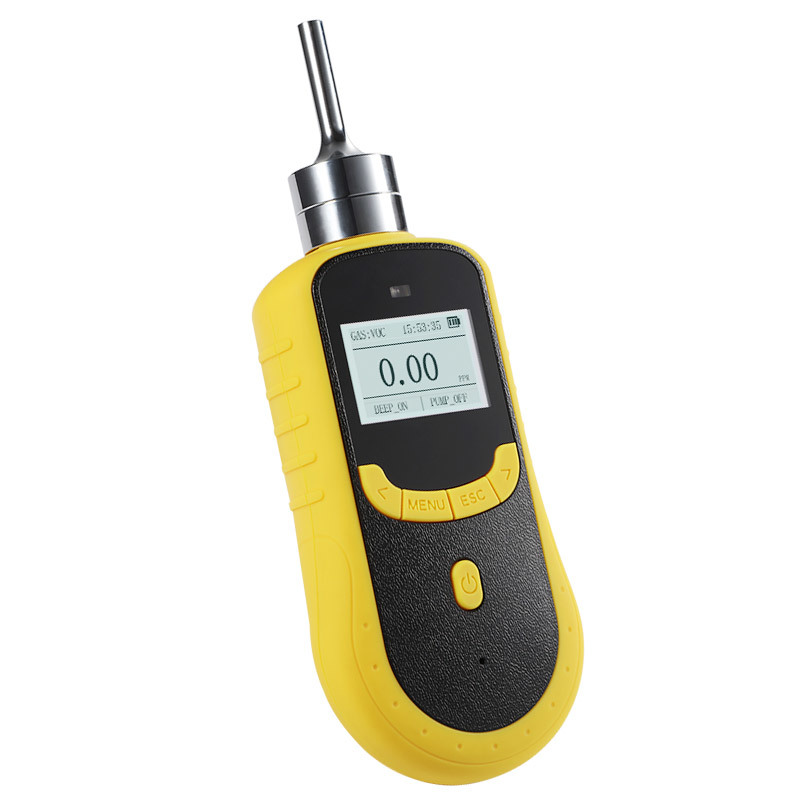

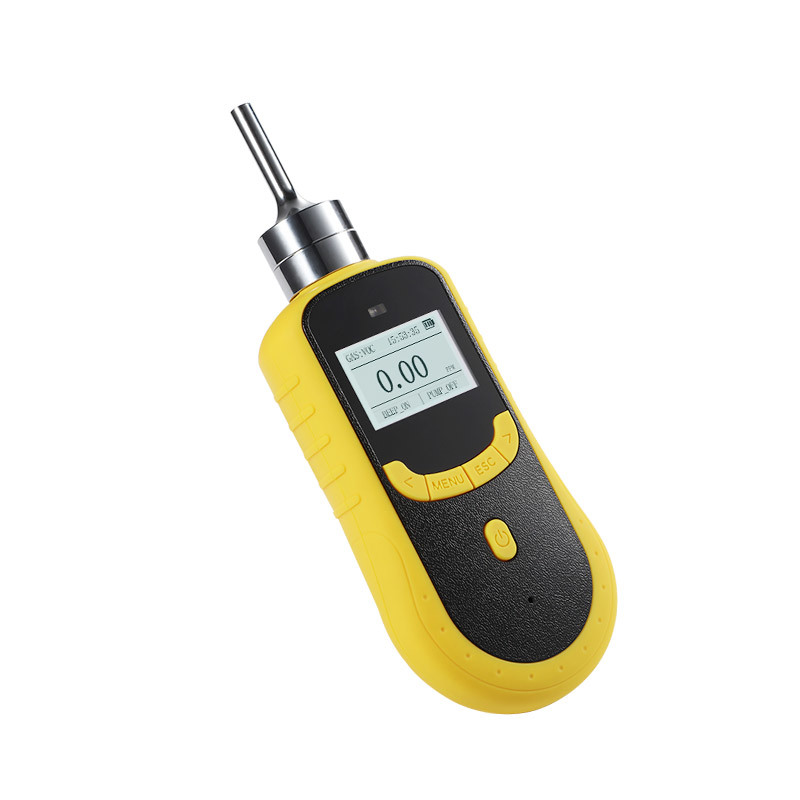

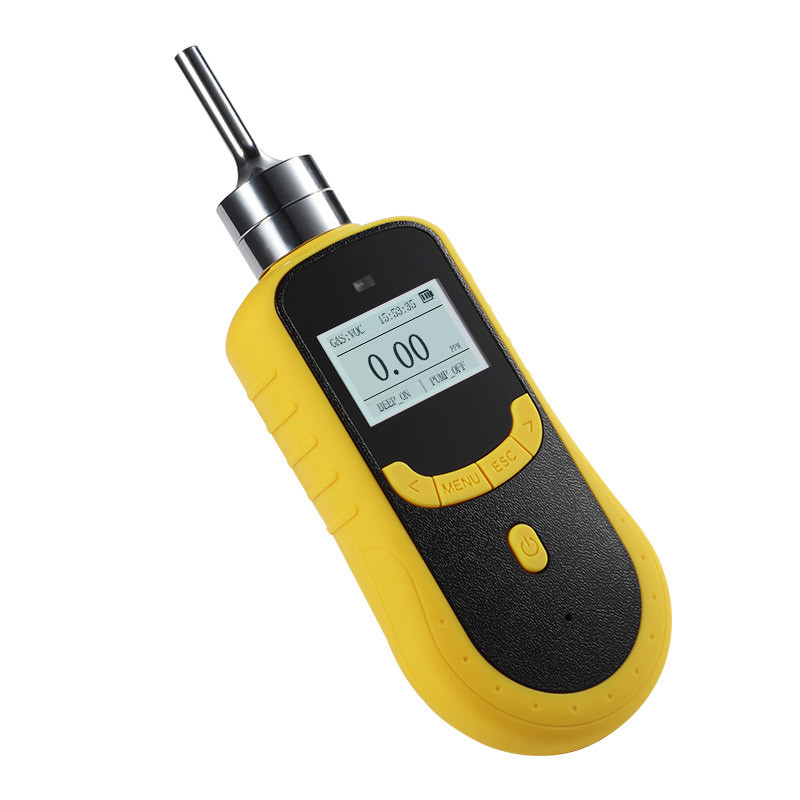

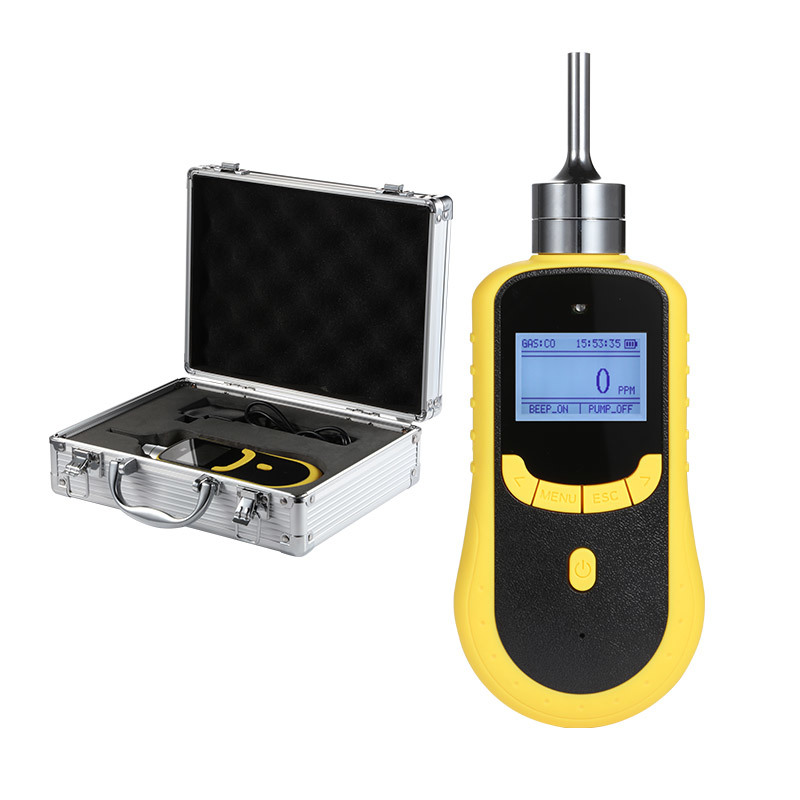

SKY2000 portable THT gas detector front view with LCD display and control buttons SKY2000 gas detector side profile showing sampling pump inlet and housing design SKY2000 gas detector with carrying case and accessories laid out Close-up of SKY2000 LCD dot matrix display showing gas concentration reading SKY2000 gas detector in use within a gas pipeline field environment SKY2000 gas detector calibration setup with span and zero calibration functions SKY2000 gas detector charging and data export via USB connection to PC SKY2000 gas detector explosion-proof certification label and housing detail


Company  Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Our product  includes portable detectors, fixed systems, controller panels, and particle counters:

  • Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
  • Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
  • Controllers: YT-1100H, YT-1600H, YT-1800H
  • Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM

Why Choose Us?
  • Manufacturer&Factory
  • Company Certifications: ISO9001, ISO45001
  • Product Certifications: IECEx, ATEX, CE
  • Delivery time: 5–7 days
  • One- stop- service
  • Quality Guaranteed
  • Personalized Solutions
Safegas product line overview showing portable detectors, fixed systems, controllers, and particle counters
