Name: IECEx ATEX Certified O3 Detector IP66 IP68 Ozone Gas Detector with 0-10ppm 0-50ppm 0-100ppm Range for Chemical Plant Worker Personal Gas Protection
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Micmeta
Price: 2,210.00 USD
Availability: InStock

Detail Information

Working Method:	Diffusion	Calibration Platform:	Modification, Function Testing And Calibration Operations Can Be Performed On DKM-MicMeta Docking Station(optional)
Certification (EU Regulations):	2004/34/UE (ATEX）	Battery:	3.7V Rechargeable Lithium Battery, Battery Capacity 2300mA
Working Hours:	Standby Time 24h, Charging Time <6h	Weight:	240g (with Lithium Battery)
Response Time(T90):	≤30S	Wireless Transmission:	Bluetooth Transmission Function (optional), Lora Transmission Function (optional)
Gas Type:	O3	Protection Grade:	IP66/IP68
Automatically Test And Calibrate After Power-on:	Including Auto-test, Calibration, Auto-zero, Maximum Value (MAX), Minimum Value (MIN), STEL, TWA Value	Range:	0-10ppm; 0-50ppm; 0-100ppm
Highlight:	IECEx ATEX Certified O3 Detector , IP66 IP68 Ozone Gas Detector , 0-10ppm O3 Detector

Product Description

Product Overview

MicMeta is an IECEx/ATEX/EMC certified portable single gas detector with IP66/IP68 protection. It features an explosion-proof rating of Ex ia IIC T4 Ga and Ex ia I Ma, making it suitable for use in coal mines. The device is lightweight, compact, and equipped with two buttons for simple operation.

Standard gas types include a variety of 4 gases (CO, H₂S, O₂, LEL), with hundreds of additional gases available for optional customization. It offers wireless capabilities for remote data access. Using a standard data logger, real-time data and alarm events can be exported directly to a PC.

Wireless LoRa Transmission: Transmitter and receiver with up to 2 km unobstructed range. Data is uploaded to a cloud monitoring platform, allowing multiple users to remotely access, manage, and view records simultaneously — enabling record storage and real-time monitoring.

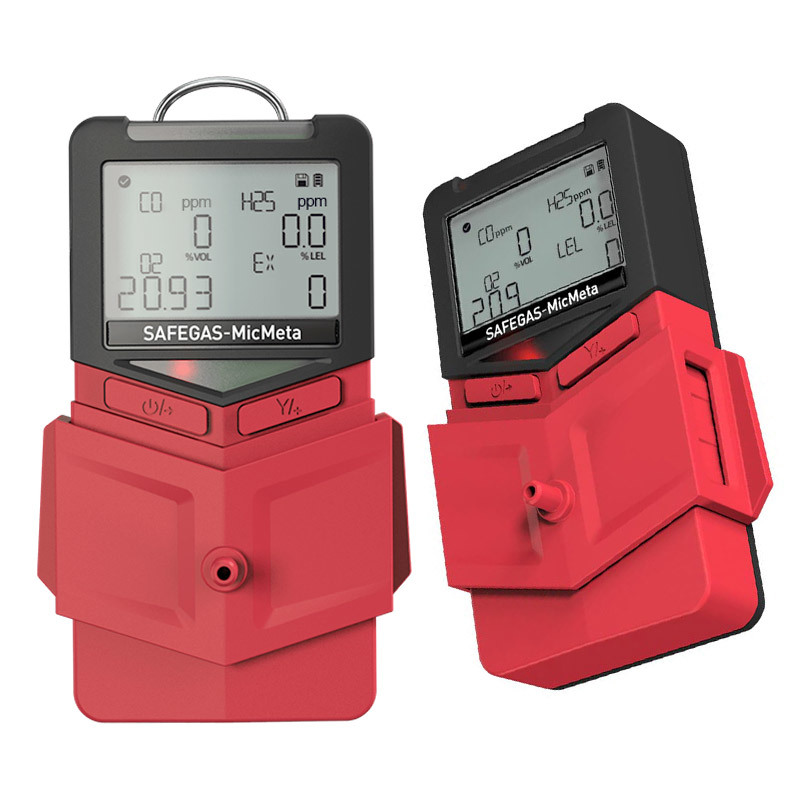

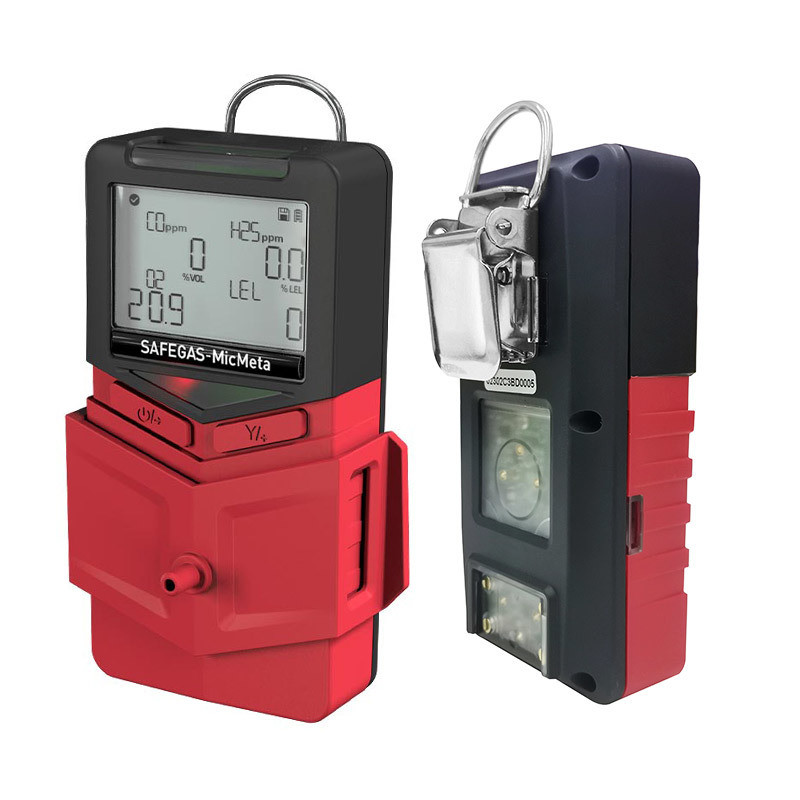

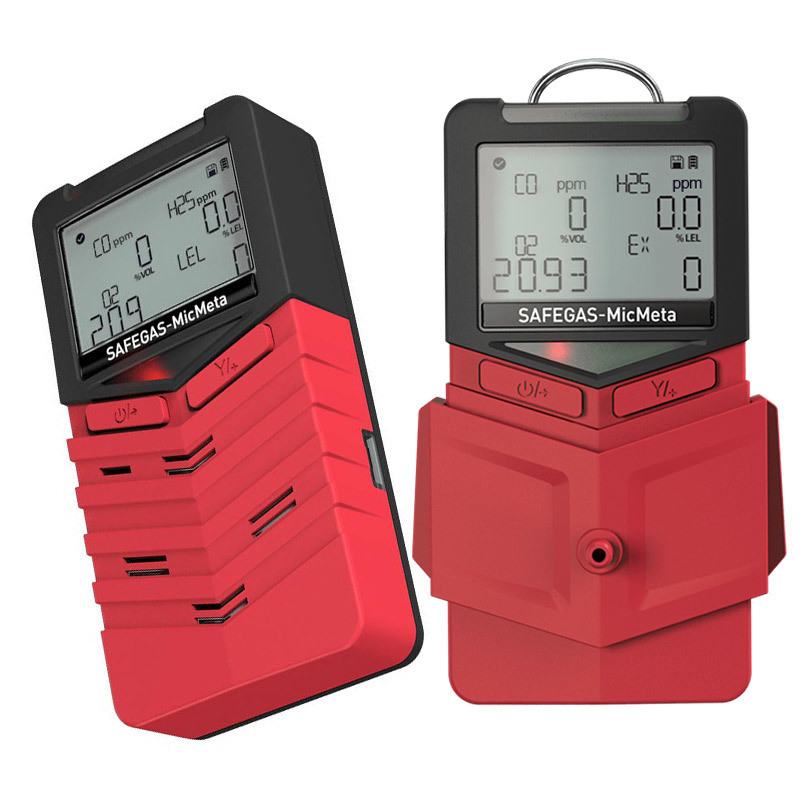

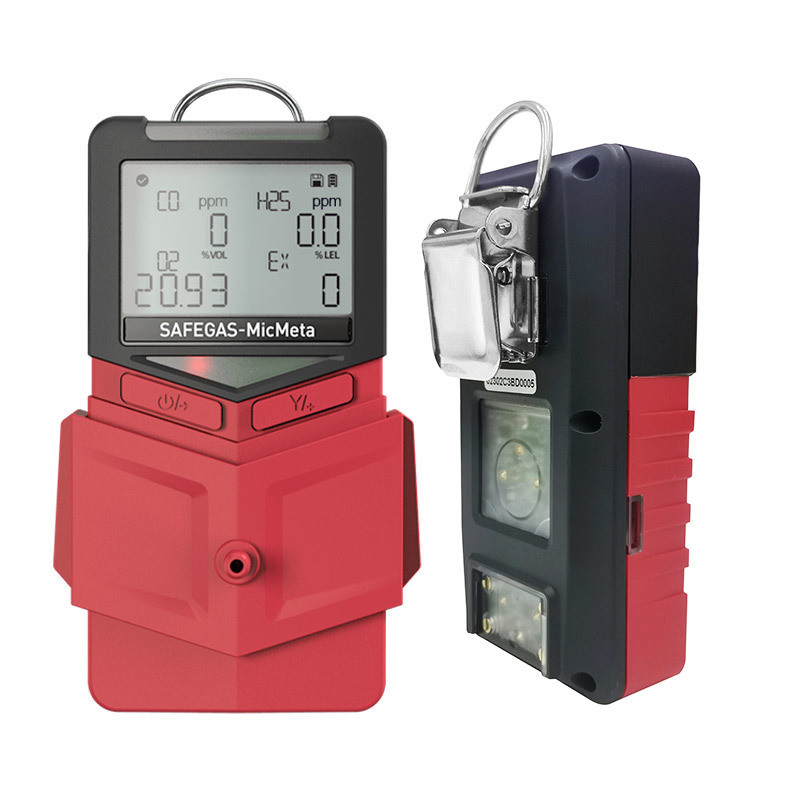

Product Pictures

Product Advantages

Certified with IECEx / ATEX / EMC, suitable for Zone 0 & Zone 1 hazardous areas.
IP66/IP68 waterproof & dustproof, 1.5m drop resistance, rugged and durable for harsh working conditions.
Equipped with world-renowned brand sensors for high accuracy.
Multi-value display: TWA, STEL, MAX, MIN for full exposure monitoring.
Audible, visual & vibration triple alarm, plus Man-Down alarm. Adjustable high/low alarm thresholds.
Data logging: store 1000 records and 100 event logs. Support user ID identification for traceability.
Compact & lightweight, wearable back clip design for easy carry.
Optional LoRa / Bluetooth wireless data transmission. Docking station available as option.
Manufactured under ISO9001 / ISO14001 / ISO45001 management system.

Product Specifications

Sampling Method	Diffusion suction
Gas Type	O₃, other gas can be customized
Measure Range	Customized
Resolution	Customized
Response Time	≤60S (T90)
Precision	≤±5%FS or ±10% (depends on the specific sensor)
Language	Chinese / English
Auto Test & Calibration	Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched and displayed by one key; concentration value is automatically converted by the system
Display	Segment code LCD display
Calibration Platform	Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data Record	1000 sets data records and 100 sets event records
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red bar, on-screen alarm status indication, alarm lock; diagnostic alarms, battery undervoltage alarms, man down alarms; all sensor alarm values are settable
Battery	3.7V rechargeable lithium battery, capacity 2300mA
Working Hours	Standby time 18h, charging time <6h
Wireless Transmission	Bluetooth transmission function (optional), LoRa transmission function (optional)
Explosion-proof Grade	IECEx: Ex ia IIC T4 Ga, Ex ia I Ma ATEX: II 1G Ex ia IIC T4 Ga, Ex ia I Ma (EU regulations) 2004/108/EC (EMC), 94/9/EC (ATEX), CE
Protection Grade	IP66 / IP68
Working Temperature	-20°C ~ 55°C
Humidity	0-95%RH (non-condensing)
Environmental Pressure	86-106 Kpa
Size	113 × 60 × 32 mm (length × width × height)
Weight	200g (with lithium battery)

Detectable Gases

MicMeta can detect 1-5 gases. Below are some of the gases MicMeta can detect:

Product Applications

Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations

Why Choose Us?

R&D team experience: Over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7×24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production, and sales of gas detection equipment and systems for over 16 years. With "gas detector" as the core product, we have completed production lines and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, and more.

Product Line

Our products include portable types, fixed types, and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H

Certifications

IECEx, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Companies We Have Cooperated With

Huawei, Coca-Cola, Samsung, Nestle, and more.

Logos of companies that have cooperated with Safegas including Huawei, Coca-Cola, Samsung, and Nestlé

Frequently Asked Questions

Q1: What is a gas detector?

A gas detector is an instrument for gas leakage concentration detection, including portable gas detectors, fixed gas detectors, and more.

Q2: What does a gas detector detect?

Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide, and other toxic and harmful gases.

Q3: What is the ppm unit of the gas detector?

ppm represents the volume concentration of the gas — that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30 ppm, it means that the volume of ammonia in one million volumes of air is 30.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	ATEX/EMC/IECEX
Model Number:	Micmeta

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton(221611cm)
Delivery Time:	3 work days
Payment Terms:	T/T
Supply Ability:	3000 pieces per month
