Product Overview
SKY3000 is a high-end IECEx, ATEX and EMC certified portable multi-gas detector. Adopting built-in pump-suction sampling mode, it supports up to 5 sensor slots for maximum 7-gas simultaneous measurement. It integrates rich safety protection, large-capacity data logging and human-centered operation functions, with optional wireless transmission and docking-station calibration. Rugged IP67 housing and 3-meter drop resistance make it suitable for high-demanding confined-space inspection, petrochemical, mining and occupational-safety field missions.
Introduction to Multi-Gas Combined Detection
Complex industrial sites such as confined spaces, mines and petrochemical facilities often contain mixed toxic, flammable and oxygen-related gases. SKY3000 high-end multi-gas detector supports flexible sensor configuration to capture multiple-gas parameters in one single unit, providing comprehensive on-site gas assessment for site operators and safety inspectors.
Key Technical Specifications
| Parameter |
Value |
| Model |
SKY3000 |
| Max Configuration |
Up to 5 sensor slots, detect maximum 7 gases simultaneously |
| Sampling Method |
Pump-suction sampling |
| Detection Principle |
Electrochemical, catalytic combustion, PID etc. (configurable) |
| Response Time(T90) |
≤30 seconds |
| Precision |
≤±1-5%F.S (varies by sensor type) |
| Display |
160×96 monochrome graphic LCD, 180° auto-flip; manually configurable backlight, auto-on upon alarm |
| Supported Languages |
Chinese / English / Russian / Polish; further languages customizable |
| Unit Switch |
One-key PPM / mg/m³ / %LEL / %VOL, automatic system concentration conversion |
| Data Recording |
100 000 data sets; storage interval adjustable from 5-3600s; export via USB cable |
| Alarm System |
95dB@30cm buzzer, flashing red LED, vibration; latchable alarm, man-down alarm, pump-block, low-voltage, diagnostic alarm; optional Bluetooth remote alarm notification |
| Power Supply |
3.7V 2200mAh rechargeable lithium battery |
| Runtime |
＞15 hours under continuous pumping mode |
| Charging |
DC travel charger, charging time ≥4 hours |
| Explosion-proof Grade |
IECEx / ATEX: Ex ia IIC T4 Ga |
| Protection Grade |
IP67 |
| Drop Resistance |
3-meter |
| Working Temperature |
-20℃ ~ +50℃ |
| Working Humidity |
10-90%RH (non-condensing) |
| Working Air Pressure |
86-106Kpa |
| Dimension |
15784.559.5mm (including back clip & water-trap filter) |
| Weight |
365g (including battery, belt clip and filter) |
| Standard Accessory |
Water-trap filter; compatible with external 20 m sampling tube |
| Optional Functions & Accessories |
Bluetooth, LoRa wireless; Docking station for bump-test & calibration; modifiable instrument ID; per-channel separate sensor factory reset |

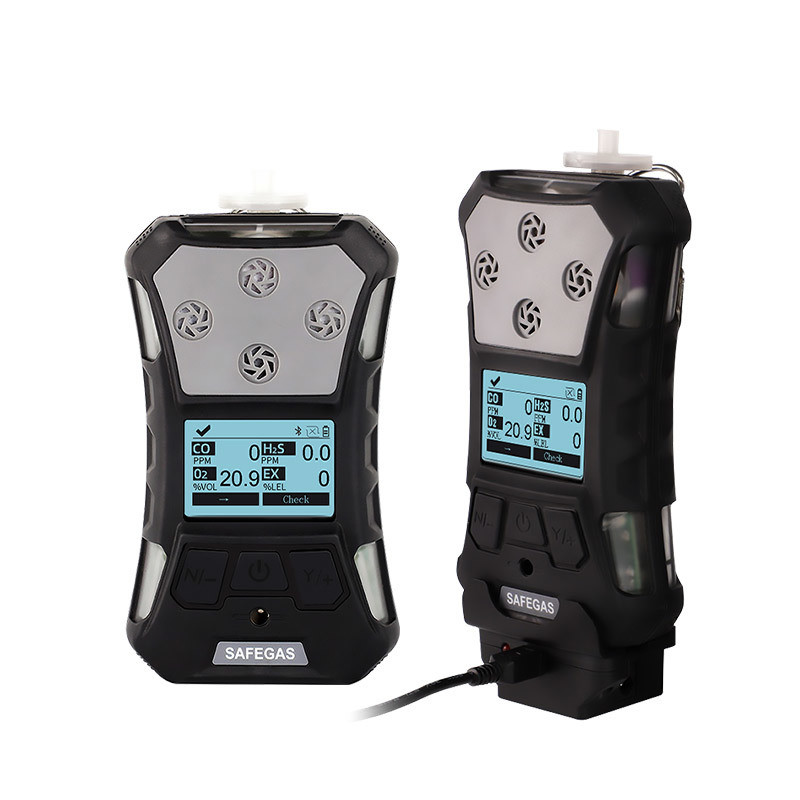

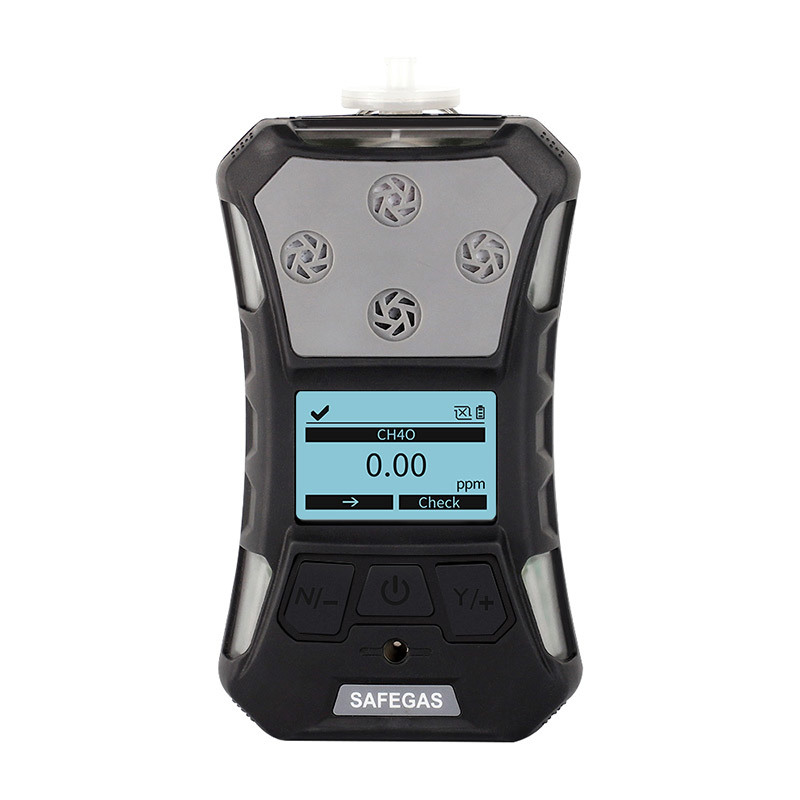

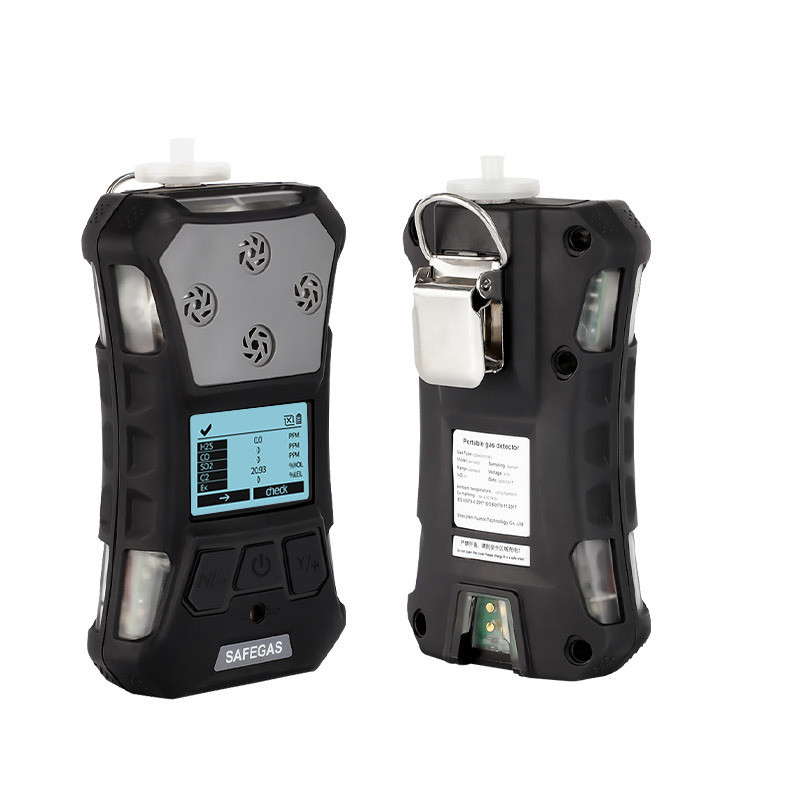

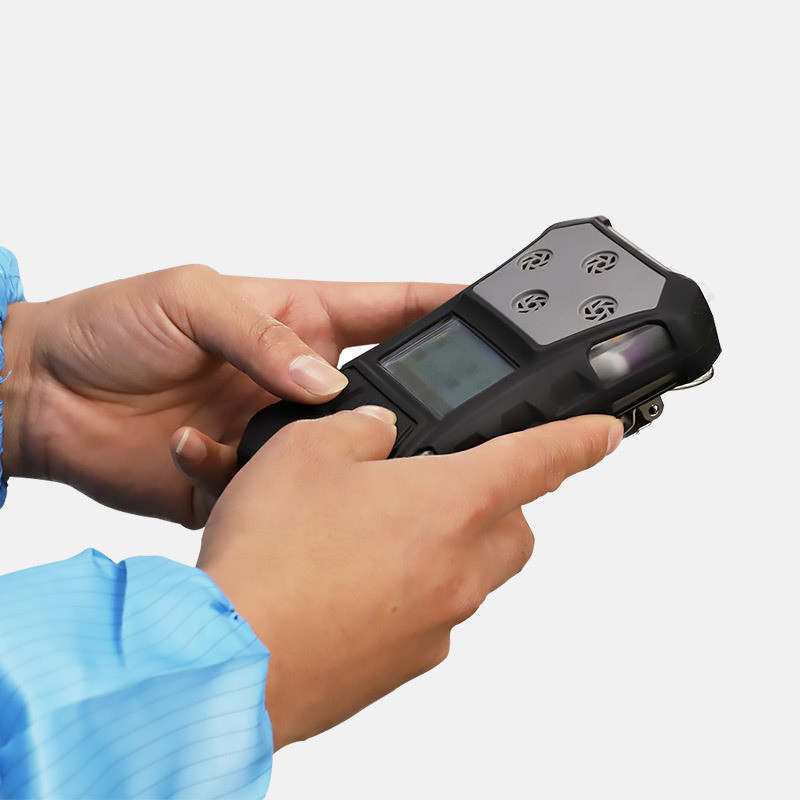

Product Pictures
Typical Applications
- Petrochemical plant confined-space entry inspection
- Mine and underground tunnel multi-gas safety patrol
- Sewage-manhole and utility-tunnel pre-entry gas test
- Off-site occupational-health spot-check and hazard assessment
- Chemical-plant maintenance and turnaround safety monitoring
- Maritime tank-vessel and warehouse enclosed-space gas survey
Standard Package
- SKY3000 high-end multi-gas detector ×1
- 12V/1A DC travel charger ×1
- USB data cable ×1
- Water-trap filter ×1
- User manual ×1
- Certificate of conformity & warranty card ×1
- Premium aluminum alloy carrying suitcase ×1
- Optional accessories: Bluetooth / LoRa wireless module, calibration docking station, 20 m sampling tube
FAQ
Q1: What is the maximum gas-detection capacity of SKY3000?
A: It supports up to 5 sensor slots and can detect maximum 7 gases simultaneously, sensor combination can be configured per project.
Q2: What sampling method does this instrument adopt?
A: Built-in pump-suction sampling.
Q3: What are its protection, anti-drop and explosion-proof specifications?
A: IP67 ingress protection, 3-meter drop-resistant; IECEx & ATEX Ex ia IIC T4 Ga certification.
Q4: Does it include man-down alarm and data-logging function?
A: Man-down alarm is standard; it stores 100 000 groups of measurement records with adjustable interval.
Q5: How long is runtime under continuous-pumping operation?
A: More than 15-hour continuous pumping runtime; charging takes ≥4 hours.
Q6: Can I connect extended sampling tube for confined-space sampling?
A: Yes, it supports external 20-meter sampling tube and is equipped with standard water-trap filter.
Q7: Is wireless transmission available?
A: Bluetooth and LoRa modules are optional for real-time remote data & alarm notification.
Q8: What special display functions does the unit have?
A: 160×96 graphic LCD supports automatic 180-degree flipping and manually configurable backlight timing.
Q9: Can docking-station be used for calibration and bump-test?
A: Yes, calibration docking-station is offered as optional accessory.
