IP65 Portable Multi Gas Detector O2 CO SO2 Electrochemical Multi Gas Monitor for Industrial Safety Monitoring

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ISO CE CNEX
Model Number: YT-1200H
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 1000 pieces per month
Detail Information
Gas: O2 CO SO2 Measure Range: 0-30%VOL 0-1000PPM 0-100PPM
Resolution: 0.01%VOL 1PPM 0.1PPM Sensor Type: Electrochemical
Sampling Method: Diffusion Material: ABS+leather Case
Display: Monochrome Dot Matrix 128*128 LCD Graphic Display Alarm Mode: Sound , Light And Vibration
Battery: 3.7V Rechargeable Lithium Battery, With Capacity Of 2500mAh Unit: PPM, Mg/m3, %VOL, %LEL
Single Package Size:: 131cm*83cm*35cm Weight:: 240g
Protection Grade: IP65
Highlight:

IP65 Multi Gas Detector

,

O2 CO SO2 Multi Gas Monitor

,

Electrochemical Portable Gas Detector


Product Description

Product Overview

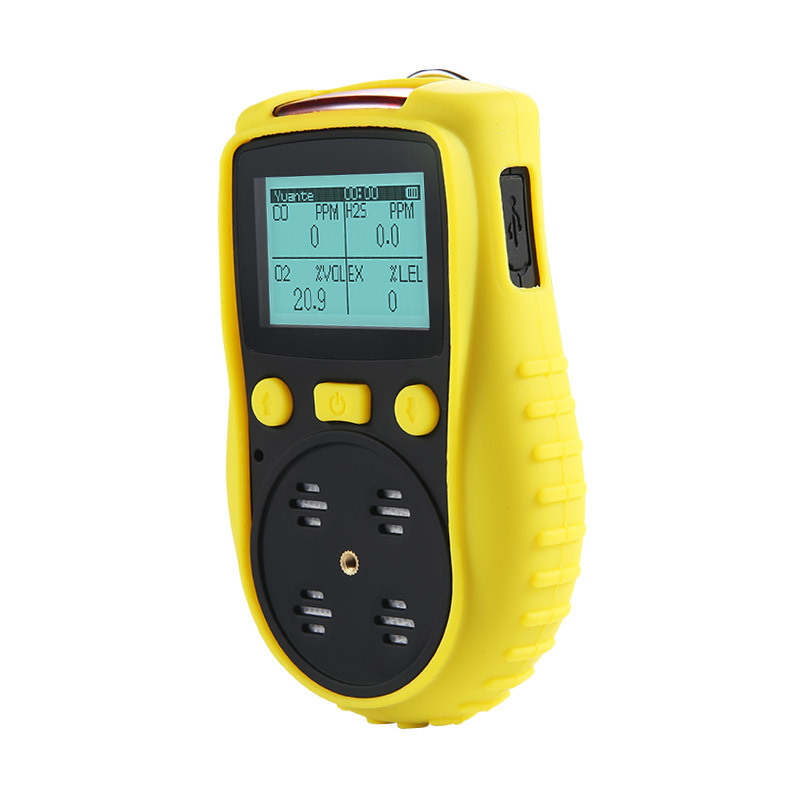

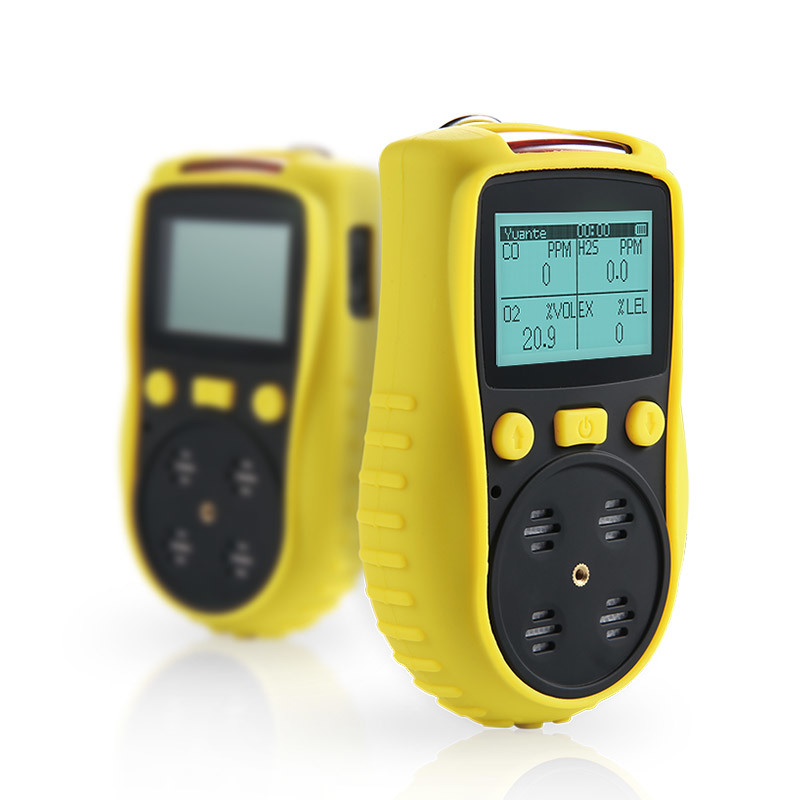

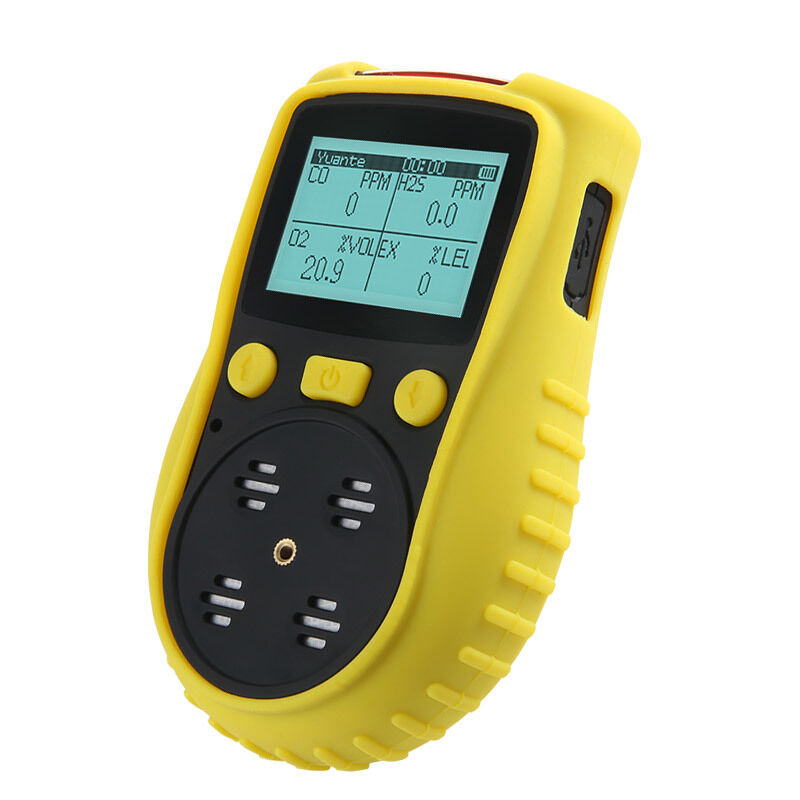

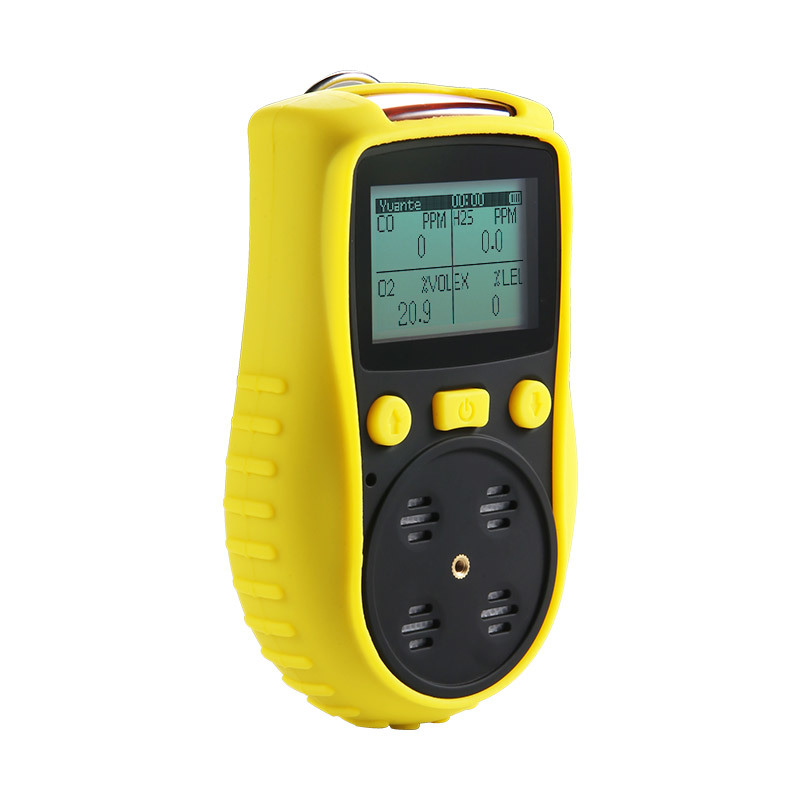

YT-1200H Portable Multi Gas Detector

The YT-1200H Portable Gas Detector is a high-precision, compact instrument designed for industrial safety applications. Utilizing diffusion detection principles, this multi-gas detector offers reliable monitoring of toxic gases, flammable gases, and oxygen levels in hazardous environments.

The YT-1200H series represents a mini-sized, cost-effective portable gas detector with high accuracy. Designed for ease of operation with comprehensive functionality, it features a back clip and silicone protective case, making it suitable for various industrial situations.

Key Features
  • Standard event logging with 100 records viewable directly on device
  • Smart, lightweight design for comfortable wearing
  • LCD dot matrix display for clear visibility
  • One-button factory reset functionality
  • Ultra-high buzzer alarm with sound, light, and vibration alerts
  • Optional data logging with PC export capability
  • Large capacity rechargeable battery for extended operation
  • Integrated alligator clip for convenient portability
  • Durable ABS housing with comfortable tactile finish
Technical Specifications
Parameter Value
Gas DetectedO2, CO, SO2
Detection PrincipleDiffusion
Sensor TypeSpecified according to application
Measuring RangeSpecified according to application
ResolutionSpecified according to application
Precision<1–5% F.S.
DisplayMonochrome dot matrix 128×128 LCD graphic display
BacklightSettable time; auto-on during alarm
Data LoggingOptional: 100,000 readings (10–3600 sec interval)
Event Logging100 event records (standard, viewable on device)
LanguageChinese / English
Alarm TypeSound, light, vibration
Battery3.7V rechargeable lithium battery, 2500mAh
Working Time14h continuous (4 gases); 200h (without LEL sensor)
ChargerTravel charger; charging time 4–6h
Explosion-Proof GradeEx ia IIC T4
Protection GradeIP65
Working Temperature10°C – 50°C
Working Humidity15 – 95% RH
Housing MaterialABS + leather case
Dimensions (L × W × H)131 × 83 × 35 mm
Weight240g
Product Images
Company Advantages
R&D Team Experience

Over 25 years

Company Certifications

ISO9001, ISO45001

Product Certifications

IECEx, ATEX, CE

Delivery Time

5–7 days

Annual Capacity

80,000 units

Customer Service

Professional 7×24 hours support

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line
Portable Detectors

Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA

Fixed Systems

YT-95H, YT-98H, YT-96H, SG100, SG200

Controllers

YT-1100H, YT-1600H, YT-1800H

Particle Counters

AQD5000, SKY6000-PM, SKY2000-PM

Safegas product portfolio overview showing portable detectors, fixed systems, controllers, and particle counters
