IP66 Portable Odor Gas Detector with ≤20S Response Time and Sound Light Vibration Alarm for Sewage Plant Odor Gas Detector

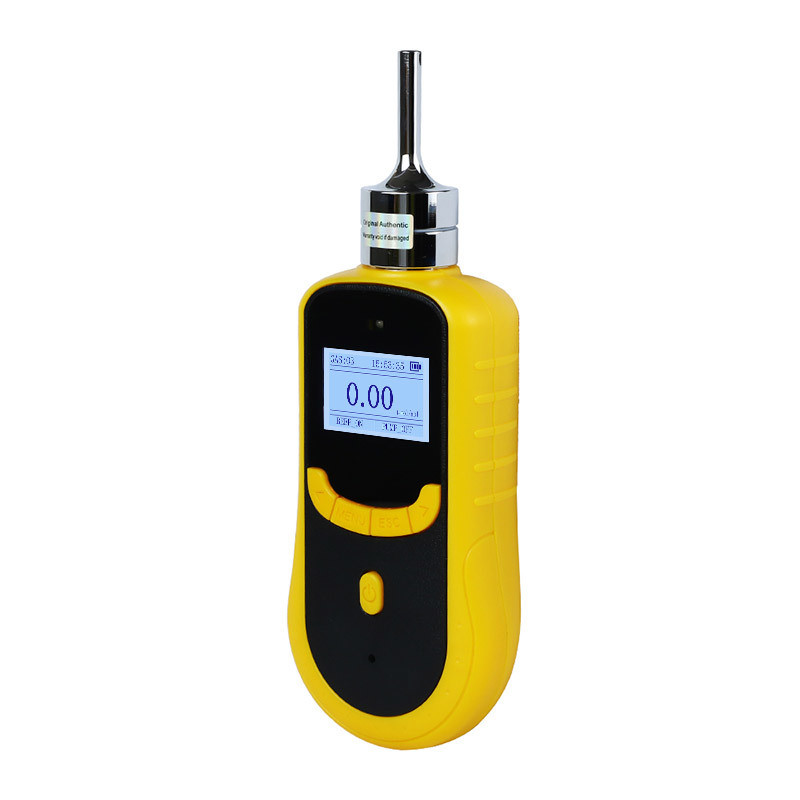

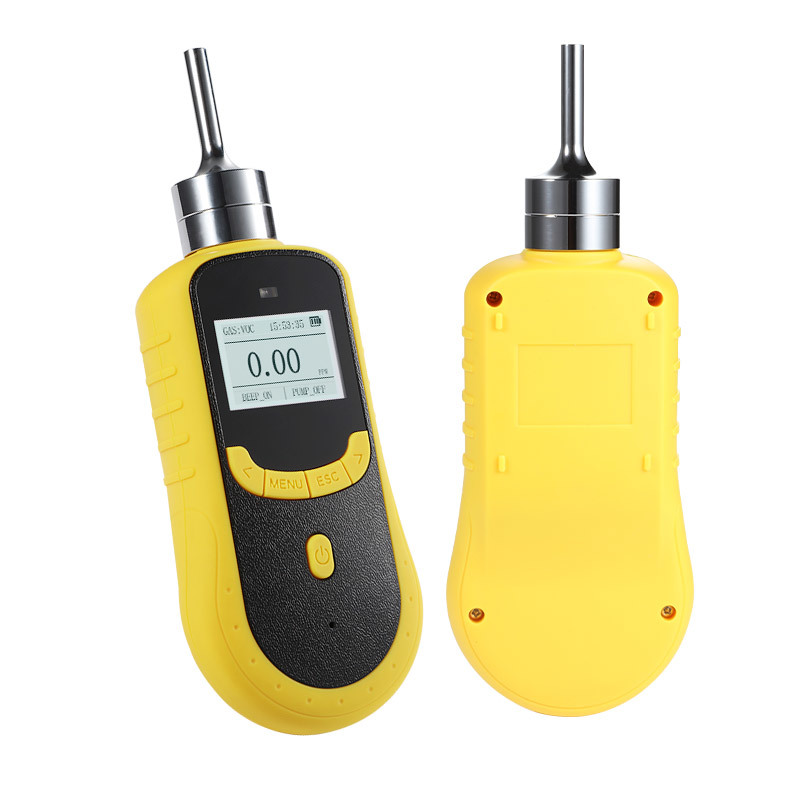

SKY2000 is a fast-response, high-accuracy portable pump-suction gas detector with Ex ia IIC T4 Ga explosion-proof certification. This odor-detection version adopts semiconductor sensor, with measuring ranges 0-100 OU, 0-999 OU. Equipped with built-in high-flow sampling pump for rapid gas intake. Made of high-strength engineering-plastic housing, it is suitable for on-site spot-check of odor concentration in sewage-treatment plants, livestock farms, waste-processing stations and environmental-protection field-inspection missions.

Odor is composite unpleasant gas mixture produced by sewage decomposition, livestock breeding and garbage degradation. It causes discomfort to surrounding residents and belongs to important environmental-pollution monitoring item. Portable pump-suction SKY2000 realizes rapid on-site odor screening, assisting field staff to complete site assessment and pollution-source preliminary investigation.

• Built-in high-flow internal sampling pump: Implements active suction sampling, quickly extracts target gas from monitoring points. Shortens instrument response time, and supports remote gas-collection instead of relying on passive ambient diffusion.
• LCD dot-matrix display with backlight: Clearly shows odor concentration and instrument running parameters. The backlight ensures clear screen reading under dim-light conditions such as waste-station and underground inspection sites.
• One-click restore factory settings: Convenient troubleshooting function. When field operators make wrong parameter modifications, users can revert all configurations back to factory defaults in single operation without tedious manual item-by-item adjustment.
• Optional large-capacity data-logging function: Can store maximum 100 000 groups of measurement records. Historical data can be downloaded to PC through matching software for archiving, traceability and environmental-inspection-report compiling.
• Multi-mode sound-light-vibration alarm: Combined buzzer sound, LED flash and vibration reminder. Operators can receive warning prompts even in noisy waste-treatment or livestock-farm working environment.
• High-strength engineering-plastic housing: Compact and light-weight 300-gram main-body. Good anti-impact property, easy for frequent carrying to complete multiple-site environmental-spot-sampling tasks.

• Sewage-treatment-plant odor-concentration spot-check
• Livestock-breeding-farm on-site odor screening
• Garbage-transfer-station and waste-processing-site monitoring
• Environmental-protection-department field pollution-source investigation
• Industrial-park odor-leakage preliminary-inspection
• Sanitary-landfill peripheral environmental-sampling work

1.   Portable gas detector (1 unit)
2.   User manual (1 copy)
3.   Certificate of conformity/Warranty card (1 copy)
4.   Charger
5.   Premium aluminum alloy carrying case

Q1: What gas is this SKY2000 configured for?

A: This unit is customized for Odor. Other gas sensors can be selected according to project demands.

Q2: What range options are available for Odor?

A: Measuring ranges:0-100 OU, 0-999 OU; resolution depends on selected measuring range.

Q3: What sampling mode does the instrument adopt?

A: Built-in pump-suction sampling for fast active gas intake.

Q4: What are explosion-proof and IP ratings?

A: Explosion-proof Ex ia IIC T4 Ga; IP66 dust-proof and water-proof.

Q5: Does it support data-logging?

A: Data-logging is an optional function; maximum storage capacity is 100 000 readings, data can be downloaded by PC software.

Q6: Can users perform calibration on-site?

A: Yes, it supports both zero-calibration and span-calibration to keep measuring accuracy.

Q7: Is factory-reset function available?

A: Yes, one-press restore factory-setting function is provided for parameter recovery.

Q8: What alarm notification types are equipped?

A: Multi-dimensional alarm including sound, light and vibration reminder.
