NH3 Ammonia Gas Leak Detector Handheld English / Chinese Language Easy Operation

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX, ISO9001, CE
Model Number: SKY2000-NH3
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Color paper box
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: NH3 Measure Range: 0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm
Ampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Display: LCD Packing: Color Paper Box
Language: English/Chinese Protection: IP66
Weight: 300g
High Light:

industrial gas detectors

,

air quality analyzer


Product Description

Handheld NH3 Ammonia Gas Leak Detector Manufacturer

We are able to manufacture, export and supply an excellent grade range of Ammonia Gas Leak Detector. This detector is used in Power Plants,Processing Plant,Chemical, Oil & Gas Refinery, cement, plants and chemical industries for detecting the presence of Ammonia. Manufactured and checked on quality parameters by our adept professionals, this detector is known for flawless functioning. Within promised time frame, the offered Ammonia Gas Leak Detector can be purchased from us at reasonable prices.

Specifications


Gas DetectedAmmonia Gas (NH3)
Detection principleElectrochemical
Sampling MethodPumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range0-20ppm, 0-50ppm, 0-100ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-5000ppm (range is optional and customized)
Resolution0.01ppm (0-20ppm, 0-50ppm, 0-100ppm), 0.1ppm (0-500ppm), 1ppm (0-1000ppm and above)
Precision≤± 2% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and
printing (optional function)

Response Time≤10SRecovery Time≤10S
Repeatability≤±1%Linearity error≤±1%
Zero shift≤±1%(F.S/year)DisplayLCD dot matrix display
Operating languageChinese/EnglishGas unitUnits are switchable
Temperature-40℃~70℃Humidity0-95%RH
Explosion-ProofExiaⅡCT4Degree of protectionIP66
Alarm modeSound, light, vibrationOperating time100h(pump off)
Dimensions205*75*32mmWeight300g

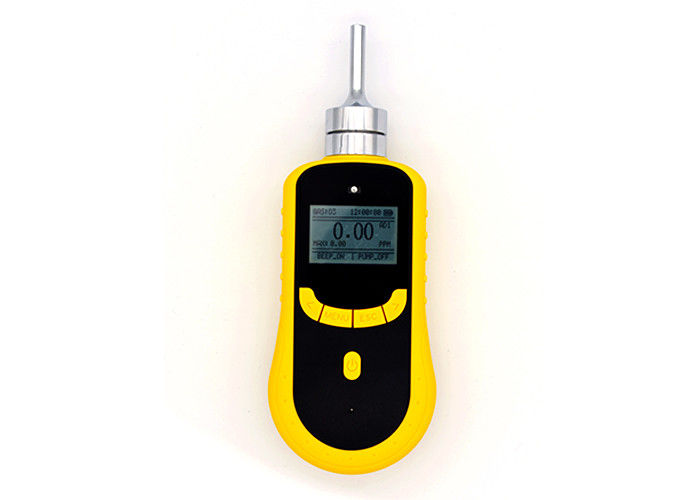

NH3 Ammonia Gas Leak Detector Handheld English / Chinese Language Easy Operation 0

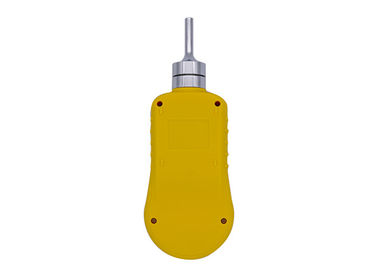

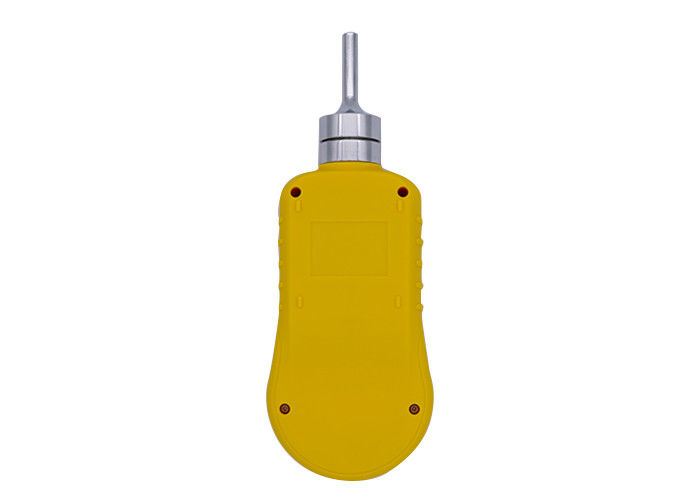

NH3 Ammonia Gas Leak Detector Handheld English / Chinese Language Easy Operation 1


Features:

1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the multi gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity

Services:


1. One year free warranty.
2. All machines are debugged before shipment.
3. Lifetime technical support and service.
4. 24 hours on line or phone or by email technical support.
5. We offer detailed machine manual and software manual.
6. Our factory make a vivid training CD.
7. Life-long free maintenance.
8. Free training in our factory.
Welcome to visit our factory, learn machine face to face.
