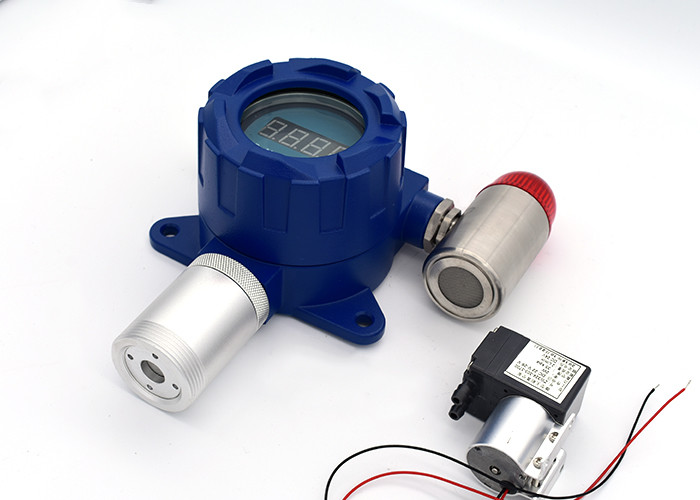

Pipe Mounted Styrene 0.001ppm PID Sensor C8H8 Gas Detector

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: ATEX/CE
Model Number: YT-95H-C8H8
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-95H-C8H8 Detected Gas: C8H8
Sensor Principle: PID Measure Range: 0-1/10/50/200/500/1000/5000PPM
Resolution: 0.001ppm, 0.01ppm, 0.1ppm,1ppm Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 3 KG
Product Size: 180*150*90mm Warranty: 1 Year
High Light:

PID Sensor C8H8 Gas Detector

,

0.001ppm C8H8 Gas Detector

,

Pipe Mounted Styrene Gas Monitor


Product Description



Product Overview



YT-95H series gas detector(with alarm light) is a kind of monitoring gas concentration in different kinds of situations or pipelines 24h continuously wall mounted type gas detector. Using world first brand sensors, and advanced micro-process technology, with data display and high/low alarm, fast response, high precision and good stability. Powered by 24V DC, with 4-20mA, RS485, relay signal output. Explosion proof, suitable for different kinds of situations



Features

  • Monitor the specific gas concentration in environment or pipeline and alarm.
  • With self-calibration and zero calibration function, makes the detection more accurate and reliable.
  • With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
  • Two-stage alarm with sound and light, alarm point is settable.
  • Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
  • Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices.
  • Working Voltage:12-36V DC
  • Case:die-cast aluminum + stainless steel (alarm light)




      Without alarm                                     With alarm

Pipe Mounted Styrene 0.001ppm PID Sensor C8H8 Gas Detector 0 Pipe Mounted Styrene 0.001ppm PID Sensor C8H8 Gas Detector 1
Specification

Gas detected C8H8
Detection principle PID
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range 0-1/10/50/100/200/500/1000/2000/5000PPM
Resolution 0.001PPM, 0.01PPPM, 0.1PPM, 1PPM
Precision ± 2-5% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display High-light nixie tube display
Connection mode G1/2 external thread explosion-proof flexible pipe Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex dⅡCT6 Degree of protection IP65
Alarm Sound, light Operating time 24H
Dimensions 180*150*90mm Weight ≤2kg



Work with control together

Pipe Mounted Styrene 0.001ppm PID Sensor C8H8 Gas Detector 2

Other normal gas types (Gases are not listed can be customized):
Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
Nitric oxide(NO)
Nitrogen dioxide(NO2)
formaldehyde(CH2O)
Ozone(O3)
Carbon dioxide(CO2)



More Application

  • Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,Health Care, Foodstuff, Antiseptic.
  • Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
  • Livestock Farm, Refuse Processing Plant, Perm Place. Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,Brewing And Fermentation, Agricultural Production.
