Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: IECEX, ATEX, ISO9001, CE, CNEX
Model Number: SKY3000-M3
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 1 working days
Payment Terms: Credit Card, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: Odor, NH3(Ammonia), H2S(Hydrogen Sulfide) Measure Range: Odor: 0-999, NH3(Ammonia): 0-20ppm, H2S(Hydrogen Sulfide): 0-20ppm
Sampling Method: Pumping Suction And Diffusion Dual Usage Warranty: 12 Months
Resolution: Odor: 1, NH3(Ammonia): 0.01ppm, H2S(Hydrogen Sulfide): 0.01ppm Feature: Man Down Alarm Function
Protection: IP67 Certification: IECEX ATEX CE ISO9001
Precision: 1%FS For High Precision Sensor, 2-3%FS For Normal Sensors Battery: Rechargeable Lithium Battery
High Light:

NH3 H2S Multi Gas Detector

,

IP67 H2S Gas Tester

,

IP67 Multi Gas Detector


Product Description

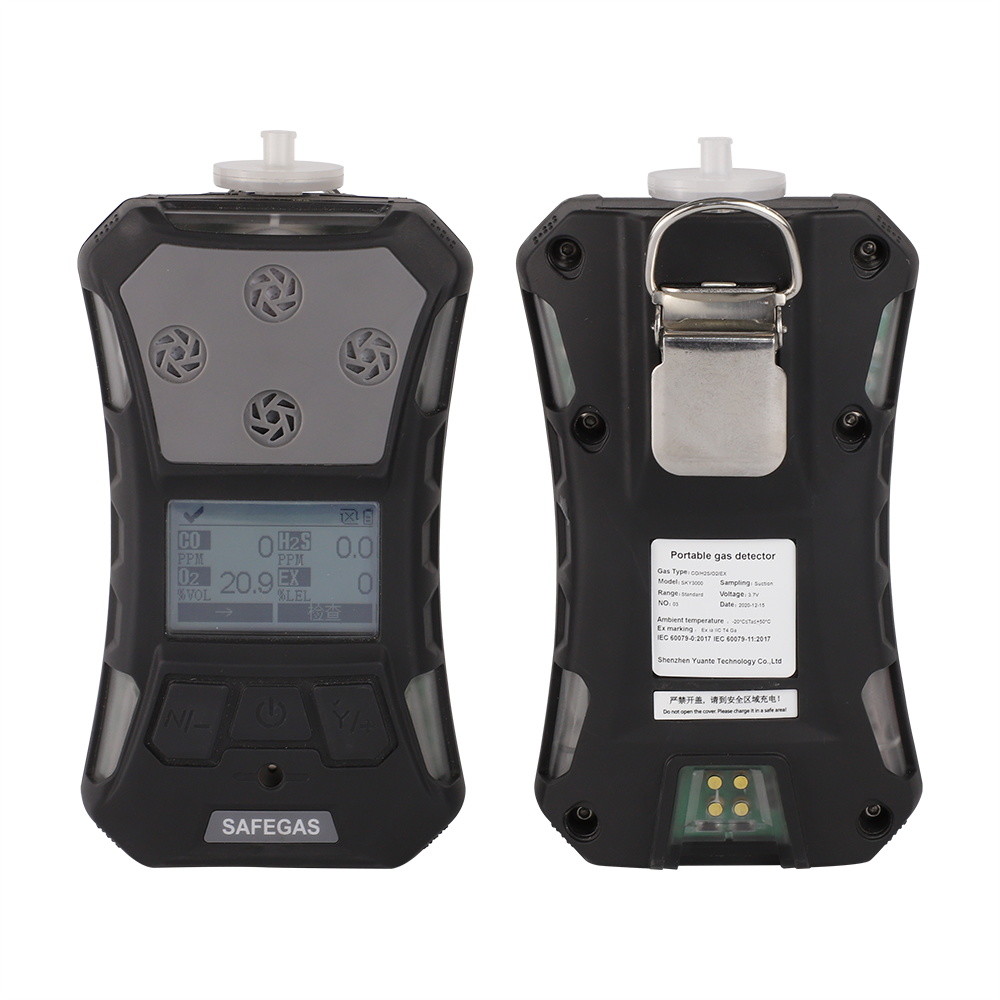

Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station



The explosion-proof Grade of the SKY3000 series is Ex ia IIC T4 Ga, which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA , ⅡB , and ⅡC and temperature group T1~T4.

SKY3000 can test odor NH3 H2S at the same time. It is widely used in petroleum, chemical, environmental, metallurgy, refining, gas transmission and distribution, biochemical medicine, agricultural and other industries.



Odor NH3 H2S Gas Tester Standard Accessories:



Odor NH3 H2S Gas detector 1 piece
12V/1A DC power adapter 1 piece USB cable 1 piece
User manual 1 piece
warranty card 1 piece
Filter+1m tube 1 piece
Aluminum suitcase 1 piece



Odor NH3 H2S Gas Tester Advantages:



Long-life



1. The device can effectively resist a three-meter drop
2. The protection level of the instrument reaches IP67
3. The device has passed the EMC anti-static interference test and can work normally in the walkie-talkie environment



Explosion-proof



The device have IECEX, ATEX, explosion-proof certificates and the explosion-proof level reaches Exia IICT4 Ga



Security protection



1. The man down alarm function has upgraded the safety of underground operators
2. Password protection function prevents non-operators from modifying menu parameters
3. With safety reminder function, sound and light vibration alarm function, let operators work without worries
4. The high and low alarm latched function allows the operator to better capture the sudden change of the gas concentratio value



Simultaneous measure multi gases, multiple numerical display



1. The device can detect 1-5 gases at the same time
2. Real-time value, TWA, STEL, MAX, MIN multiple numerical display



Display, flexible detection, multiple filtering devices



1. The screen can be automatically turned 180 degrees, which is convenient for viewing in specia operating environments
2. Built-in powerful sampling pump, fast detection speed

3. Can be connected 20m sampling tube externally, which is convenient for long-distance or confined space detection
4. Pump suction and diffusion dual use, to provide operators with more reliable protection
5. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields



User-friendly operation design



1. Beautiful and friendly user interface, reasonable and easy-to-use interactive mode

2. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real tim Standard storage function, one-click data export, convenient for users to analyze

3. Unique modifiable ID identification function, convenient for users to allocate and manage the instrument
4. A full range of automatic detection functions, automatic prompts for voltage, pump failure alarms, etc., more comfortable to use

5. One-key security detection
6. one-key open storage, automatic image flip
7. Support PPM and mg/m3 gas unit switch, the concentration value is automatically converted by the system Support each channel sensor to restore the factory setting separately
8. Support multi-language including English.Chinese and etc. (Other languages can be customized)



Odor NH3 H2S Gas Tester Specificiation

Sampling method pump suction & diffusion dual-use type
Gas type Odor, NH3(Ammonia), H2S(Hydrogen Sulfide). Other gases can be customized.
Measure range Odor: 0-999, NH3(Ammonia): 0-20ppm, H2S(Hydrogen Sulfide): 0-20ppm. Other measure range can be customized.
Resolution Odor: 1, NH3(Ammonia): 0.01ppm, H2S(Hydrogen Sulfide): 0.01ppm. Other resolution can be customized.
Response time ≤30 seconds
Precsiion ≤±1%FS for high precision sensor, 2-3%FS for normal sensors
Language English(Other languages can be customized)
Automatically test and calibrate after power-on Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched
Disaply monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery 3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours More than 15 hours in continuous pumping mode
Charger Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga
Certification
(EU regulations)
2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX)
Protection grade IP67
Working temperature -20ºC~+50ºC
Humidity 0~90%RH(no condensation)
Environmental pressure 86~106Kpa
Size 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height)
Weight 365g (including battery, belt clip and filter)

Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station 0







Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station 1



Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station 2







Odor NH3 H2S Gas Tester Factory information



Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.

Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.

For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.

For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.

For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with IECEX ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.



Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station 3Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station 4

Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station 5

Ammonia Hydrogen Sulfide Multi Gas Detector Odor NH3 H2S Gas Tester for Garbage Station 6



FAQ
Q1:Are you a trading company or manufacturer ?
A1:We are a professional odor NH3 H2S gas test manufacturer with 16 years experiences.
Q2:What about the payment method?
A2:T/T and Credit card are available.
Q3:Does your company accept customization?
A3:We do customizing service for customers.
Q4:What about the Shipment?
A4:We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment by air express such as DHL,FEDEX,TNT or UPS.
Q5:What about after-sale service?
A5:12 months warranty for all kinds of products, included odor NH3 H2S gas detector.


Product Application


The detector is suitable for explosion-proof, toxic gas leakage and rescue, underground pipelines, mines, metallurgy, power plants, chemicals, tunnels, etc., effectively avoiding the occurrence of poisoning accidents, ensuring the safety of workers and avoiding losses of production equipment.

Detection gases(Optional)
No
Detecting Gas
Gas
Measure Range
Resolution
Alarm Point
(High / Low)
1
Combustible Gas
EX
0-100%LEL /0-100%VOL
1%LEL/1%VOL
20 / 50% LEL
2
Oxygen
O2
0-25% /30%VOL
0.1%VOL
19.5% / 23.5%VOL
3
Hydrogen Sulfide
H2S
0-50/100/200/1000 ppm
0.1 ppm
10 / 20 ppm
4
Carbon Monoxide
CO
0-500/1000/2000/5000 ppm
1 ppm
50 / 150 ppm
5
Nitrogen Dioxide
NO2
0-20/50/1000 ppm
0.1 ppm
5 / 10 ppm
6
Nitric Oxide
NO
0-250/500/1000 ppm
1 ppm
50 / 150 ppm
7
Carbon Dioxide
CO2
0-5000 ppm /0-1%/5%/10%VOL
1 ppm/0.1%VOL
1000 /2000 ppm
8
Sulfur Dioxide
SO2
0-20/50/100/200/1000 ppm
0.1 /1 ppm
5 / 10 ppm
9
Chlorine
CL2
0-20/100/1000 ppm
0.1 ppm
5 / 10 ppm
10
Ammonia
NH3
0-50/100/500/1000 ppm
0.1 ppm
20 / 50 ppm
11
Hydrogen
H2
0-1000/5000 ppm
1 ppm
50 /150 ppm
12
Phosphine
PH3
0-5/20/50/100/500/1000 ppm
0.1 ppm
5 / 10 ppm
13
Hydrogen Chloride
HCL
0-20/500/1000 ppm
0.01/0.1 ppm
5 / 10 ppm
14
Chlorine Dioxide
CLO2
0-10/50/100 ppm
0.1 ppm
5 / 10 ppm
15
Hydrogen Cyanide
HCN
0-50/100 ppm
0.01/0.1 ppm
10 / 20 ppm
16
Ethylene Oxide
C2H4O
0-10/20/50/100/200/500 ppm
0.1 /1 ppm
20 / 50 ppm
17
Ozone
O3
0-10/20/100 ppm
0.1 ppm
2 / 5 ppm
18
Formaldehyde
CH2O
0-20/50/100 ppm
0.1 /1 ppm
5 / 10 ppm
19
Hydrogen Fluoride
HF
0-1/10/50/100 ppm
0.01 /0.1 ppm
2 / 5 ppm
20
Methylbenzene

0-1/10/20/50/100 ppm
0.01 /0.1 ppm
5 / 10 ppm

Note: Other gas and measure range not listed are all support customize, please contact us for more details.
