4 - 20mA Output H2 Hydrogen Gas Leak Detector Fixed Real Time Monitoring With Internal Pump

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CE CNEX ISO9001-2015
Model Number: YT-95H-B-H2
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 2-3 days
Payment Terms: T/T, Western Union
Supply Ability: 1000pieces/week
Detail Information
Detected Gas: H2 Hydrogen Measure Range: 0-500ppm、0-1000ppm、0-2000ppm,0-5000、0-10000、0-20000ppm、40000ppm
Color: Grey Packing: Paper Box
Install Method: Wall-mounted, Piping-type, Flow-type Power: 12-36Vdc
High Light:

poisonous gas detector

,

air quality analyzer


Product Description

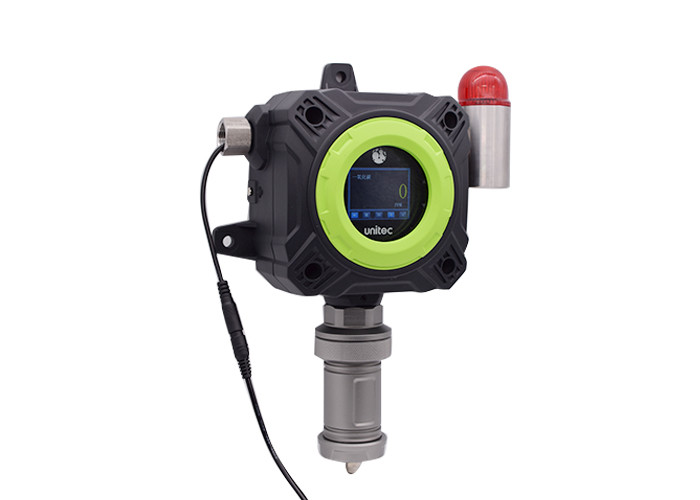

Fixed Real Time Monitoring 4-20ma Output H2 Hydrogen Gas Leak Detector With Internal Pump



Fucntions



1.Adopt 2.4-inch high-definition color screen, 120 degree angle of view

2.Built-in micro-sampling pump, pump flow is stable at 800mL/min

3.4-20mA current signal, RS485 digital signal, 1 set of relay signal output

4.Infrared remote control function and button function

5.Large capacity and fast storage, storage space can be customized

6.Support multiple gas display units to switch freely, the concentration value is automatically converted by the system



7.GPRS wireless transmission function, SMS reminder service (optional)

8.Can be equipped with 1 set of relay signals (optional)

9.Built-in module to upload data to EPA platform or other public platform, transmitting signals without distance limitation (optional)

10.Pretreatment system to achieve harsh environment detection such as high temperature, high humidity and high dust (optional)



Specification

Size (H x W x D)320*230*110mm
Weight 3000g
Detected principle Electrochemistry
Measure range 0-500ppm,0-1000ppm,0-2000ppm,0-5000,0-10000,0-20000ppm,40000ppm
Resolution 0.01PPM,0.1PPM,1ppm
Precision ≤±2%F.S (Higher measure range can be customized)
Pump flow rate Flow rate range:0-800 mL/Min
Display Screen 2.4-inch color display, resolution 320*240 resolution
Display contents Gas molecular formula, concentration, unit, pump status, etc.
Alarm buzzer, alarm status prompt on the display
Data logging Independent SD memory card, automatic measurement of measurement data, customizable recording interval
Communication and data download It can be directly connected to the computer via USB to quickly download the TXT file for storing data; with the PC software to download, store, analyze and print the data.
Power supply 12-36V DC
Wireless network Built-in module to upload data to the network platform, regardless of distance (optional)
Network frequency 2.4G high frequency
Installation method Wall-mounted, pipe-flow type (optional)
Language Chinese / English
Humidity 0~95%RH (no condensation) (optional filtration device can be equipped if in hyperhumidic ares )
Temperature -20℃~+50℃ (optional filter can be equipped if over temperature)
Explosion-proof Ex d IIC T6 Gb
Protection degree IP65
Certificate measuring instrument license, explosion-proof certificate, CE,ISO9001



Attachment configuration list

1. Standard accessories:

(1) One YT-95H suction gas detector

(2) One Infrared remote controller

(3) One manual

(4) Certificate, warranty card

(5) Instrument case



2. Optional accessories:

(1) Power adapter

(2) Switching power supply

(3) Controller

(4) High temperature probe

(5) Pretreatment system
