Data Storage USB Port 0.01ppm Ozone O3 Gas Sensor

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX, ISO9001, CE, CNEX
Model Number: YT-1200H-S-WH
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Color box. 30*25*13cm
Delivery Time: 1 working days
Payment Terms: Credit Card, Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: O3 Ozone Measure Range: 0-20ppm, 0-50ppm, 0-100ppm
Sampling Method: Diffusion Alarm Type: Sound, Light
Resolution: 0.01ppm Packing: Color Box
Material: PC + ABS USB Port: Mini USB Port
Warranty: 12 Months Calibration Certification: Yes
High Light:

Ozone O3 Gas Detector

,

0.01ppm Ozone O3 Analyzer


Product Description

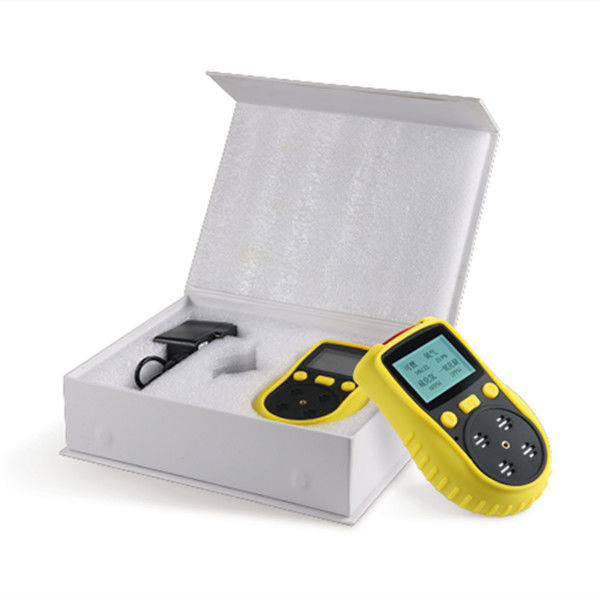

Ozone Detector O3 Gas Sensor Analyzer Ozone Meter Portable With Data Storage





Specifications



Gas Detected O3 Ozone
Detection principle Electrochemistry
Sampling Method Diffusion
Measure Range 0-20ppm, 0-50ppm, 0-100ppm
Resolution 0.01ppm
Precision ≤± 5% F.S
Signal Output High-speed data transmission by USB, available for data downloading and
printing (optional function)
Charging Time

4~6h

Working Time 14h

Battery

3.7V

Capacity

2300mAh

Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof II 2G Ex ia IIC T4 Ga IP66 Degree of protection IP66
Alarm mode Sound, light, vibration

Housing Material

ABS+ leather case
Dimensions 131*83*35mm Weight

240g





Characteristics



1. Employing original imported first-class brand sensor.
2. (optional) High speed data transmission by USB, which can download and print data.
3. LCD dot matrix display, the gas type, unit, concentration,
4. Local time can be showed on the screen.
5. Support Chinese and English operation, easy to shift.
6. The gas concentration unit PPM and mg/m3 can be shifted quickly. Built-in micro sampling pump, 10 grades of suction are available.

7. Explosion-proof certification, explosion-proof grade: II 2G Ex ia IIC T4 Ga IP66.

8. Monitor the specified gas concentration in environment and enclosed space and alarm.
9. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
10. One press to restore factory setting, free from the bother of mis-operation With temperature and pressure compensation, this is able to realize gas concentration compensation under conditions of different temperatures or pressures.
11. Two-stage alarm with sound and light, alarm point is settable.
12. Rechargeable lithium polymer battery of large capacity.
13. Special engineering plastics housing of high intensity, anti-skipping,
14. Water-proof, dust-proof, explosion-proof.



Data Storage USB Port 0.01ppm Ozone O3 Gas Sensor 0



Data Storage USB Port 0.01ppm Ozone O3 Gas Sensor 1







Factory information



Established in 2010, SHENZHEN YUANTE TECHNOLOGY CO.,LTD, is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector” as the core product, we have completed production line and solutions according to different industries, such as: Oil, Chemical, Medicine, Energy, Environment protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Safegas becomes the influential supplier for gas detection equipment and system in the domestic and overseas market.

Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.

For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.

For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.

For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.



Data Storage USB Port 0.01ppm Ozone O3 Gas Sensor 2Data Storage USB Port 0.01ppm Ozone O3 Gas Sensor 3

Data Storage USB Port 0.01ppm Ozone O3 Gas Sensor 4



FAQ

Q1: Are you factory or trade company?
A1: We are factory.


Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available


Q3: Does your company accept customization?
A3: We do customizing service for customers.


Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.


Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.



Q6: How about the Calibration?

A6: Before send out, we will calibrate each pieces well with standard gas.



Q7: What certifications do you have?

A7: ATEX CE ISO9001-2015.
