| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | IECEX/ATEX/CE |
| Model Number: | YT-98H-A |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-98H-A | Detected Gas: | CO |
|---|---|---|---|
| Sensor Principle: | Electrochemistry | Measure Range: | 0-500,1000, 2000, 5000, 10000ppm |
| Resolution: | 0.1ppm, 1PPM | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 5 KG |
| Product Size: | 286*202*96mm | Warranty: | 12 Month |
| High Light: | ATEX Gas Leak Monitor,CO Carbon Monoxide Gas Leak Detector,Wall Mounted Pipeline Gas Leak Monitor |
||

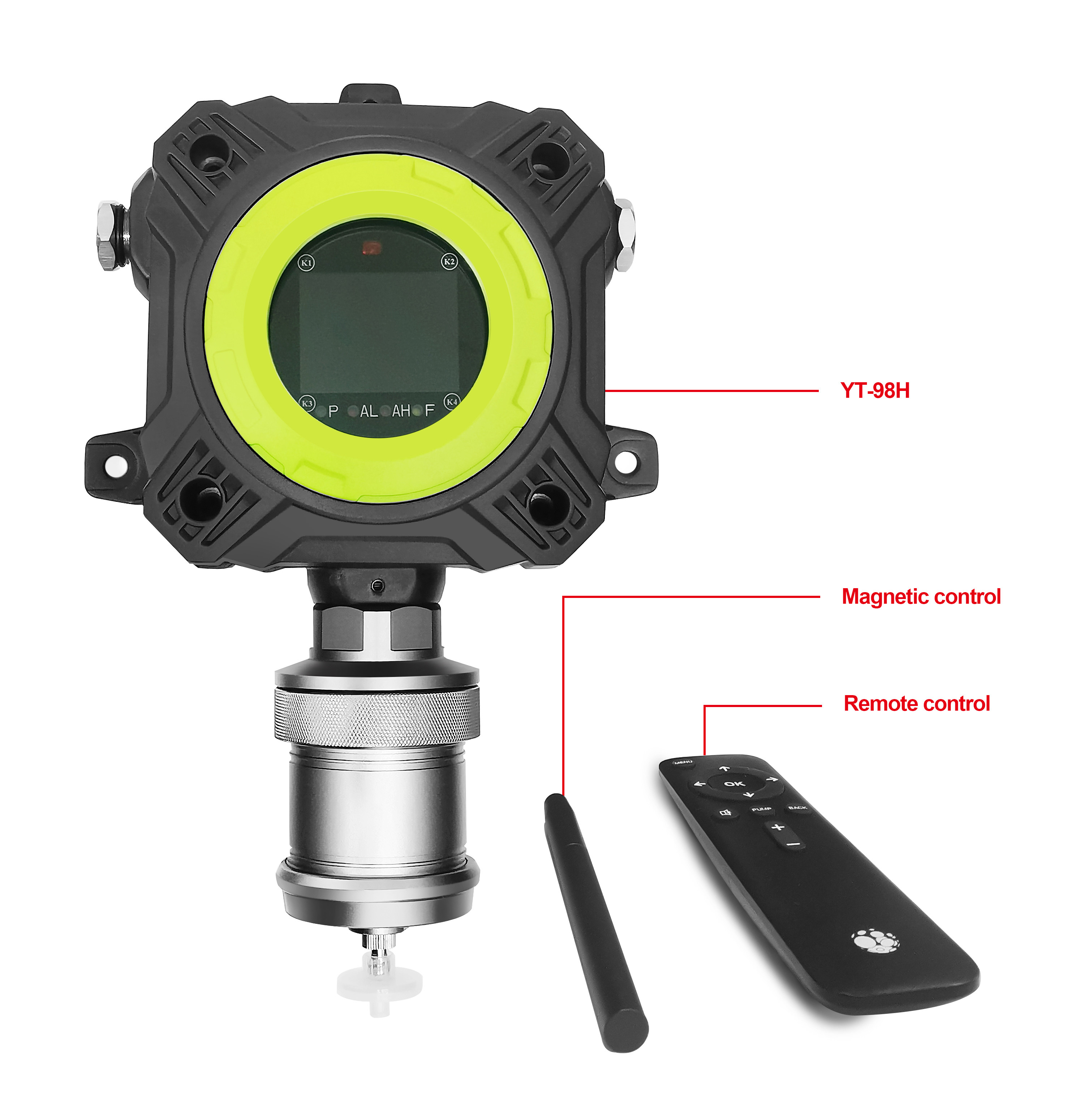

Wall Mounted CO Carbon monoxide gas leak monitor for pipeline IECEX ATEX Certified
Company profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Pro- tection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.
Product Overview
The YT-98H series is a built-in pump suction multi gas detector that can simultaneously detect 1-6 types of gases and continuously monitor various gas concentrations online for 24 hours. Using a 2.4-inch high-definition color screen to display on-site concentration in real-time, and outputting 4-20mA, RS485 standard signal for remote data transmission. The YT-95H-B series has advanced circuit design, mature kernel algorithm processing, and has obtained multiple software work patents and appearance patents. YT-95H-B series can detect the concentration of gas in pipelines, confined space, and atmospheric environments, as well as gas leakage. The instrument is equipped with a constant flow rate and a large suction pump, ensuring accurate detection and faster and more sensitive response than diffusion models. When the target detection gas is lighter than air, it does not need to be installed at a height and can quickly and safely obtain detection results.
Specification
| Gas detected | CO | ||
| Detection principle | Electrochemistry | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-500,1000,2000,5000,10000ppm | ||
| Resolution | 0.1ppm, 1ppm | ||
| Precision | ± 3% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex db ⅡC T6 Gb | Degree of protection | IP66 |
| Alarm | Sound, light |
Language:
|
Chinese / English
|
| Dimensions |
(H x W x D) 320*210*110mm
|
Weight | 3.4kg |
The internal structure of YT-98H
Other normal gas types (Gases are not listed can be customized):
Flammable gas(EX)
Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)
Ammonia(NH3)
Chlorine(CL2)
Hydrogen Chloride (HCL)
Nitric oxide(NO)
Nitrogen dioxide(NO2)
formaldehyde(CH2O)
Ozone(O3)
Carbon dioxide(CO2)
