| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | IECEX/ATEX/CE |
| Model Number: | YT-98H-A |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-98H-A | Detected Gas: | O2 CO2 |
|---|---|---|---|
| Sensor Principle: | Infrared，Electrochemistry | Measure Range: | 0-5%, 25%, 30%vol |
| Resolution: | 0.01%vol | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 5 KG |
| Product Size: | 286*202*96mm | Warranty: | 12 Month |
| High Light: | O2 Infrared Gas Detector,Co2 Infrared Gas Detector,IECEX IR Gas Detector |
||

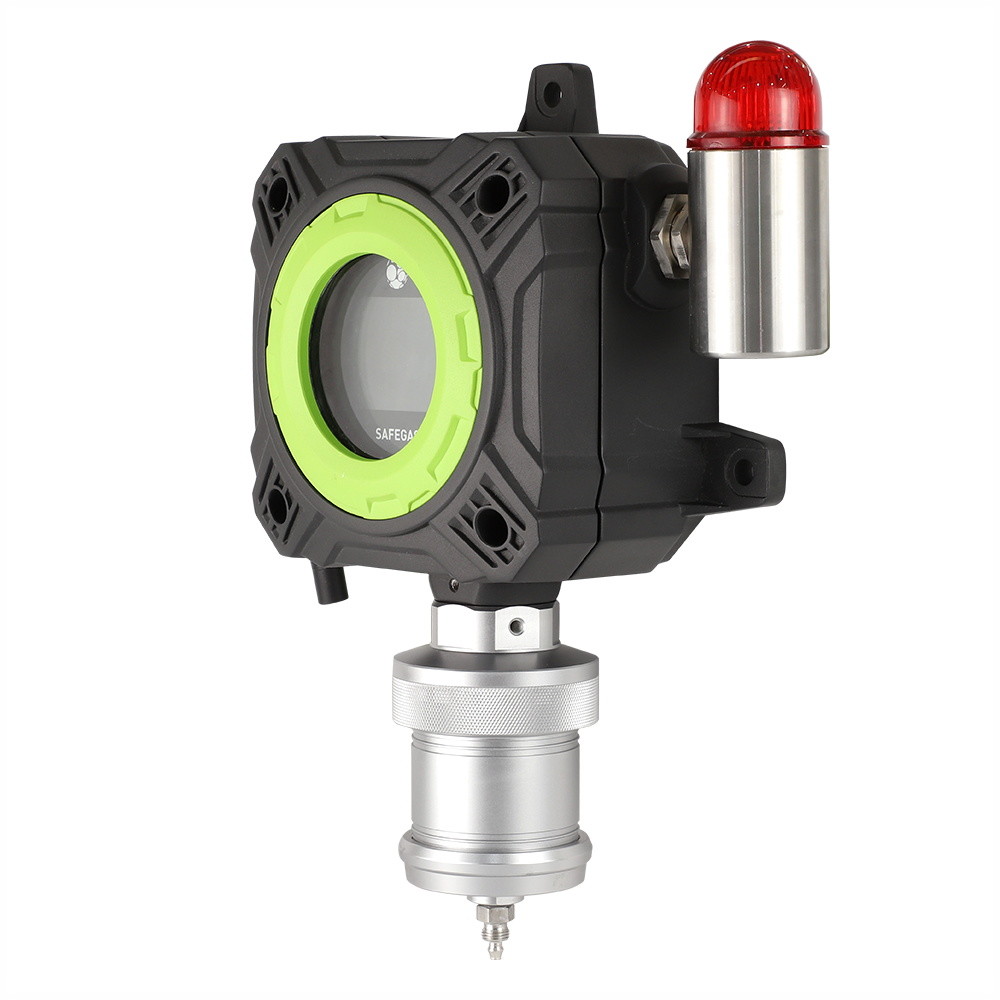

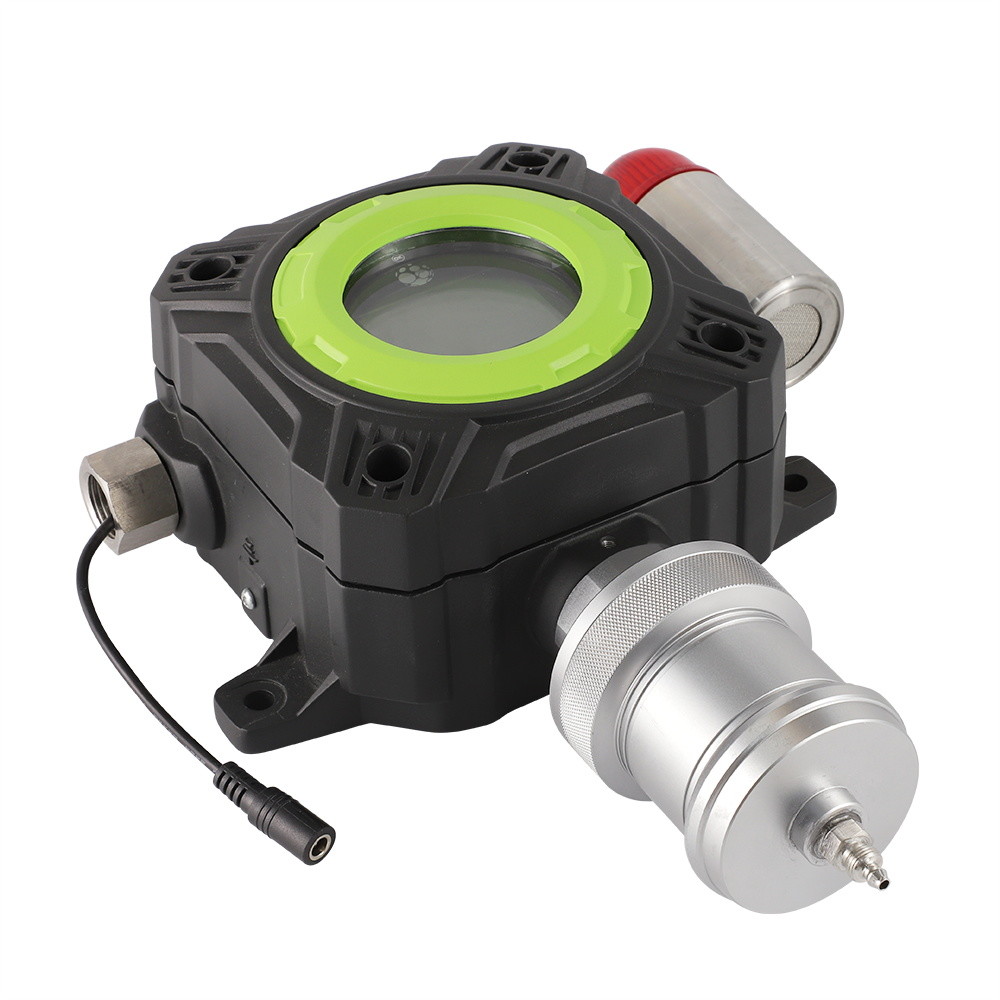

Wall-Mounted O2 Co2 Infrared Sensor Gas Detector Iecex TUV Certificate
Company profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 13 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
What is our advantage
1.As a professional manufacturer of gas detectors, we controls the whole process from design-development-production-sales, ensuring the consistency of product quality. We have more than 100 patents of independent intellectual property rights in design and development; In production, we have skilled technical workers and a complete industrial line, can grasp the production and quality of products throughout the process; In addition, our company has rich sales experience in overseas, the professional sales team can provide customers with 7*24h service.
2.We have a professional R&D team, who have been engaged in the gas detection industry for about 25 years, with absolute professional technical knowledge and a lot of experience in dealing with technical problems, to provide after-sales service for customers.
3.We implement a strict quality management system and produce gas detectors based on the principle of quality first, so we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Product Overview

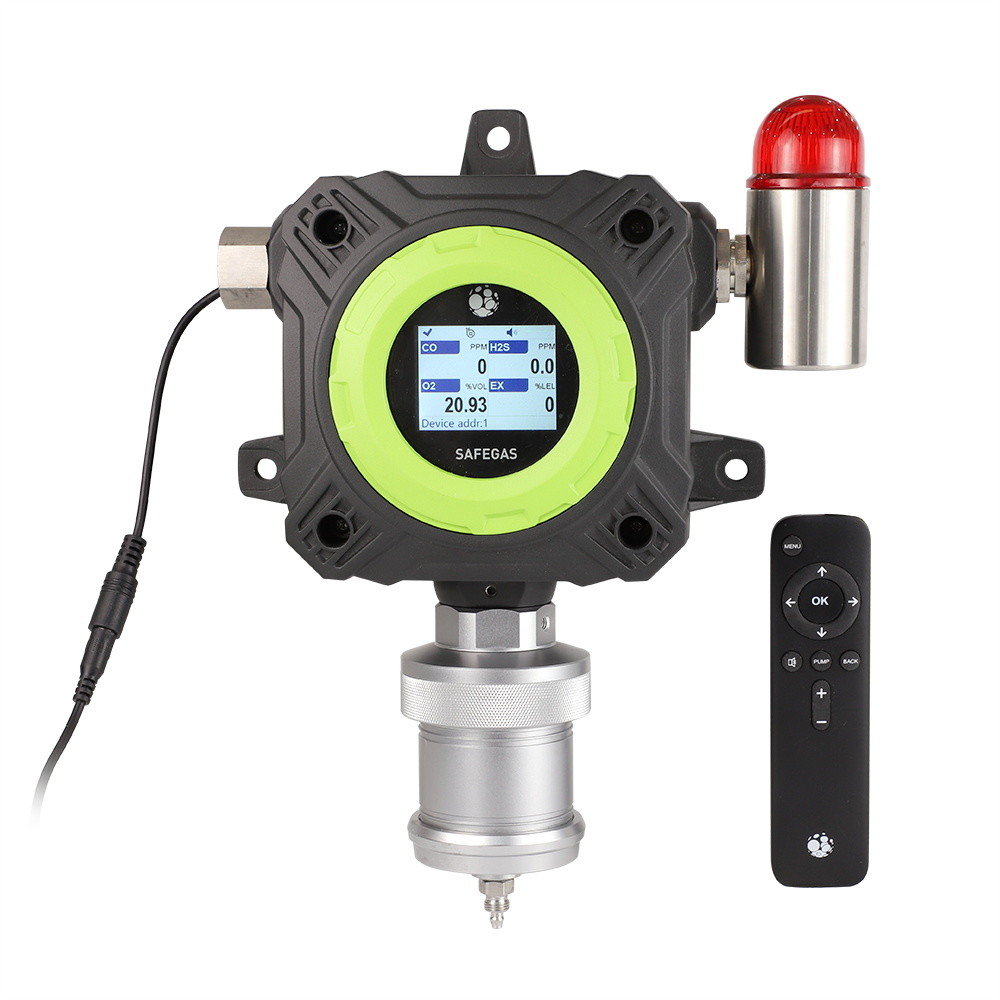

The YT-98H series is a an IECEX/ATEX/EMC certified fixed multi gas detector which can simultaneously detect 1-6 types of gases 24h continuously monitoring. It is with built-in pump and the sensors inside detector are imported from world top brands, ensuring fast response and high accuracy. Using a 2.4-inch high-definition color screen to display on-site concentration in real-time. YT-98H-A has standard 4-20mA current signal, RS485 modbus signal and relay signal output for remote data transmission.
Specification
| Gas detected | CO2 O2 | ||
| Detection principle | Infrared, Electrochemistry | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-5%, 25%, 30%vol | ||
| Resolution | 0.01%vol | ||
| Precision | ± 3% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex db ⅡC T6 Gb | Degree of protection | IP66 |
| Alarm | Sound, light |
Language:
|
Chinese / English
|
| Dimensions |
(H x W x D) 320*210*110mm
|
Weight | 3.4kg |
The internal structure of YT-98H
