| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | IECEX/ATEX/CE |
| Model Number: | YT-98H-A |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-98H-A | Detected Gas: | CO2 |
|---|---|---|---|
| Sensor Principle: | Infrared | Measure Range: | 0-100%vol |
| Resolution: | 0.01%vol | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 5 KG |
| Product Size: | 286*202*96mm | Warranty: | 12 Month |
| High Light: | Infrared CO2 Gas Detector,CO2 Fixed Gas Detector,100% Vol CO2 Gas Detector |
||

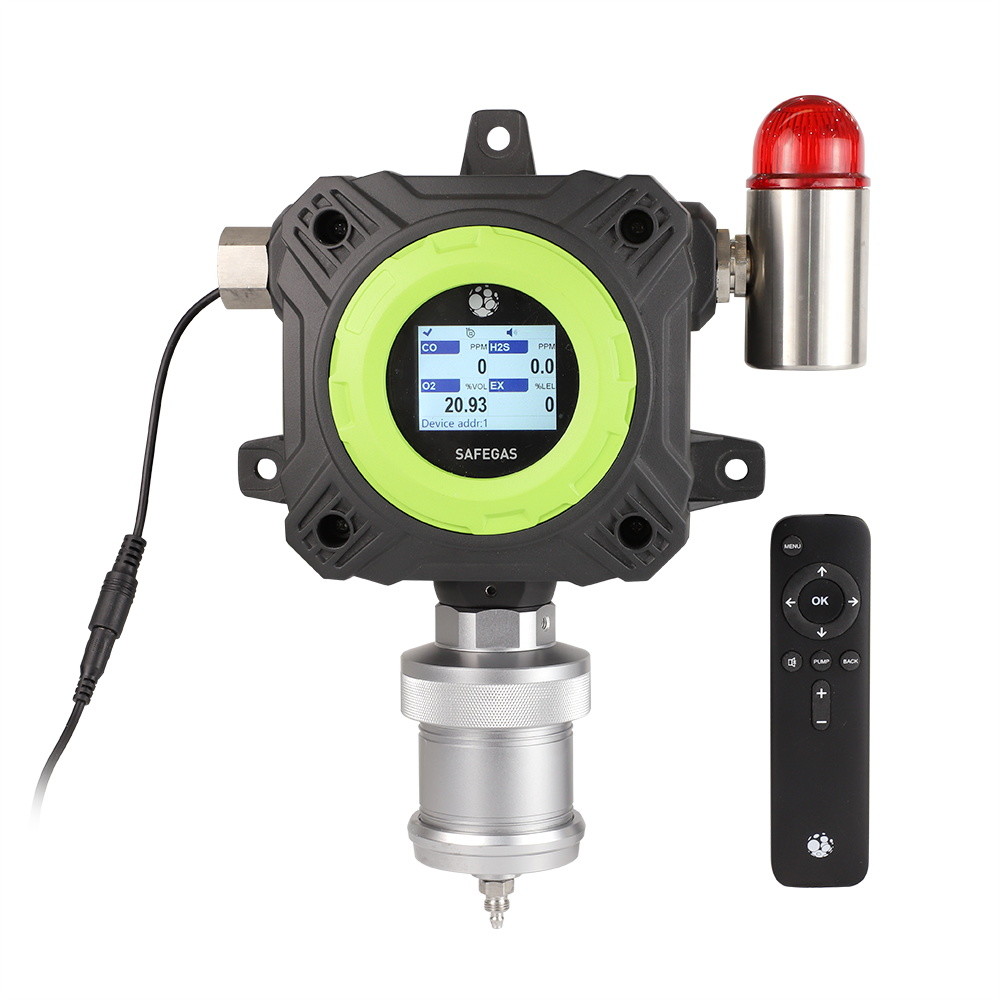

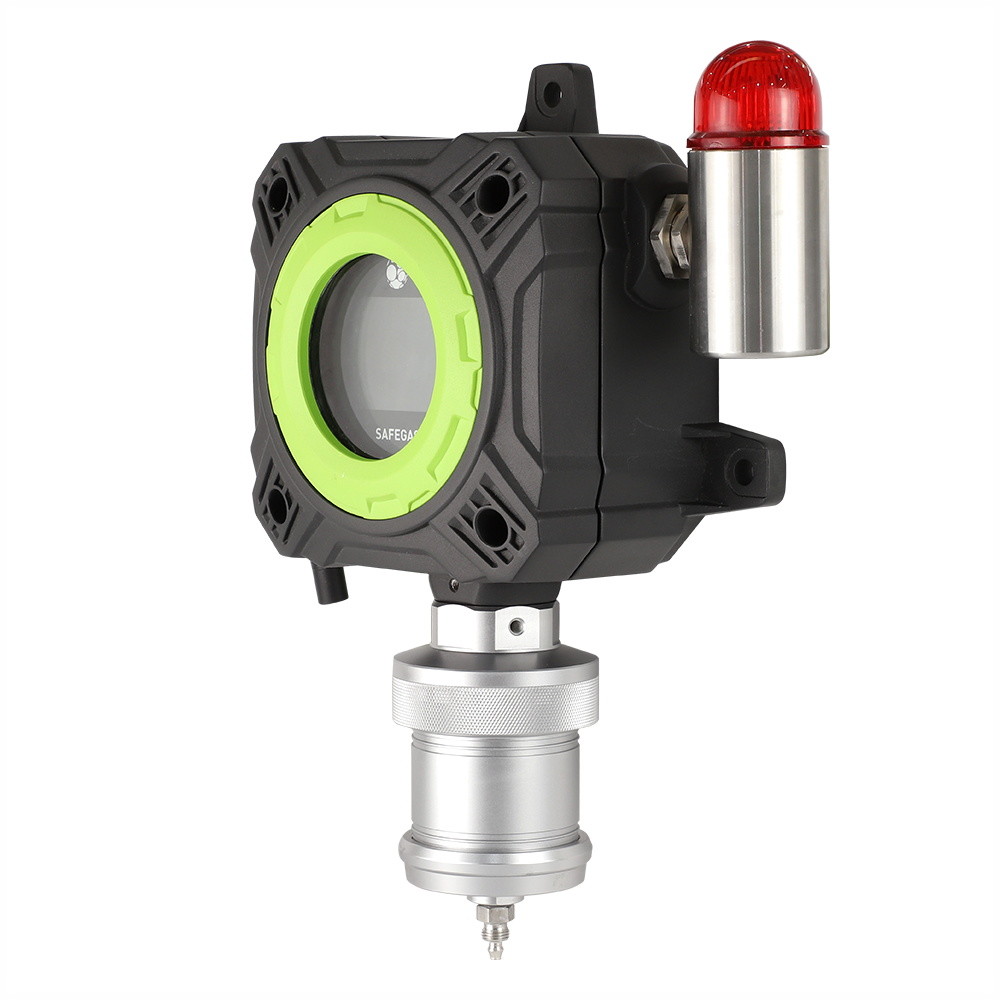

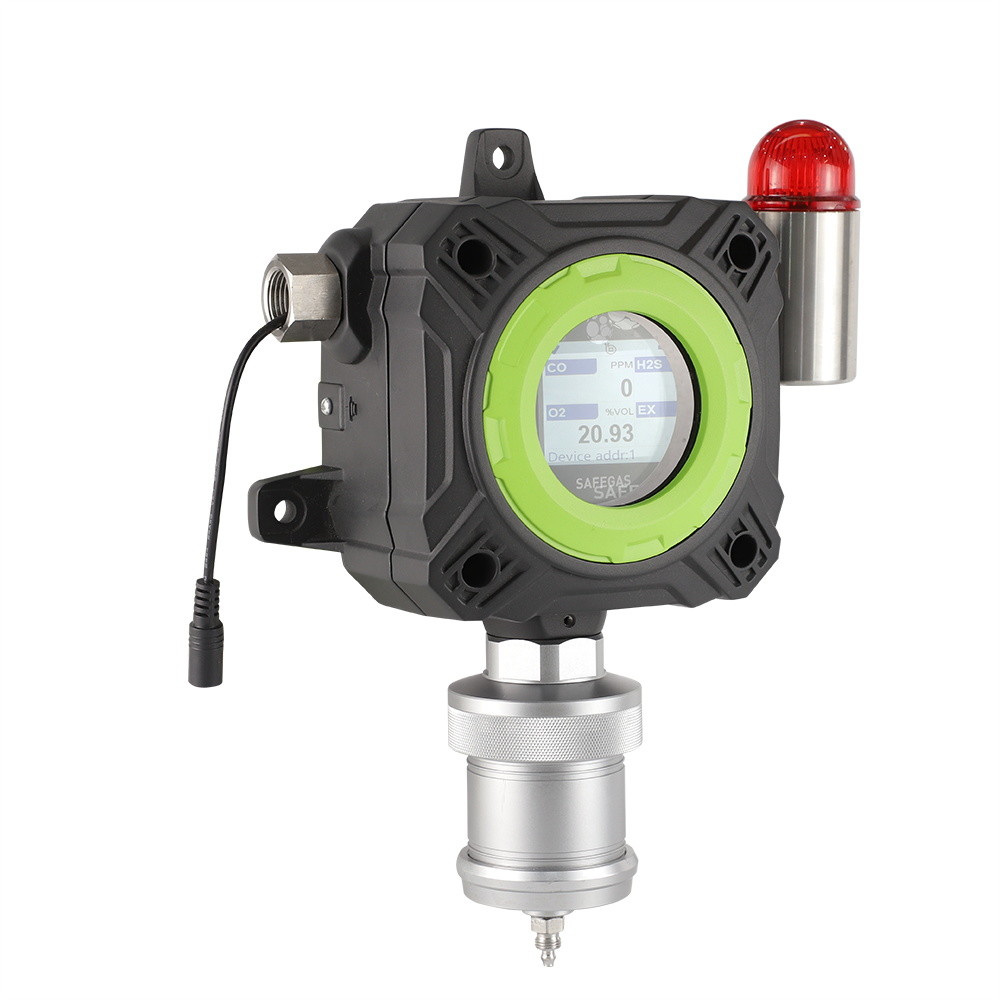

100%Vol CO2 Infrared Sensor Fixed Gas Detector with Alarm Light
Company profile
We mainly focus on the design, production, and sales of high-end gas detection equipment and system. There are portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.
What is our advantage
1.Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants, etc. We are the first and only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited to be used in hazardous areas.
2.As our core components, IC or sensors are used imported brands such as Honeywell, CITY and Alpha, etc., which make our products with high precision and stabilize the life of the products. It ensures the accuracy of detection and escorts the life safety of customers.
3. Our complete product line and stable inventory provide customers with fast delivery time. We can ship it out within 3 days for the quantity of less than 10 pieces. Even for the mass production of 100 pieces, we can complete within half a month.
Product Overview
The YT-98H series is a an IECEX/ATEX/EMC certified fixed multi gas detector which can simultaneously detect 1-6 types of gases 24h continuously monitoring. It is with built-in pump and the sensors inside detector are imported from world top brands, ensuring fast response and high accuracy. Using a 2.4-inch high-definition color screen to display on-site concentration in real-time. YT-98H-A has standard 4-20mA current signal, RS485 modbus signal and relay signal output for remote data transmission.
Specification
| Gas detected | CO2 | ||
| Detection principle | Infrared | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-100%vol | ||
| Resolution | 0.01%vol | ||
| Precision | ± 3% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display |
2.4 inch color display, resolution 320*240
|
|
Wireless output (optional):
|
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
|
Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex db ⅡC T6 Gb | Degree of protection | IP66 |
| Alarm | Sound, light |
Language:
|
Chinese / English
|
| Dimensions |
(H x W x D) 320*210*110mm
|
Weight | 3.4kg |
The internal structure of YT-98H
