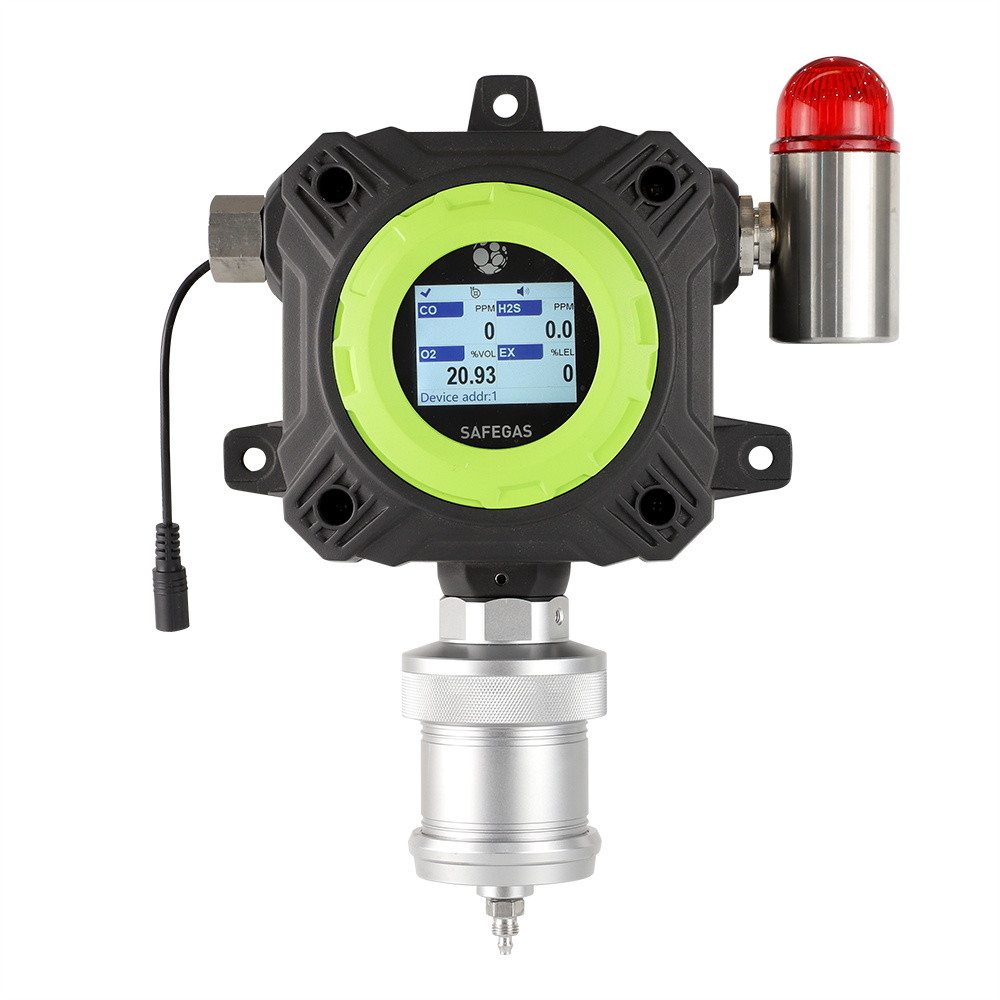

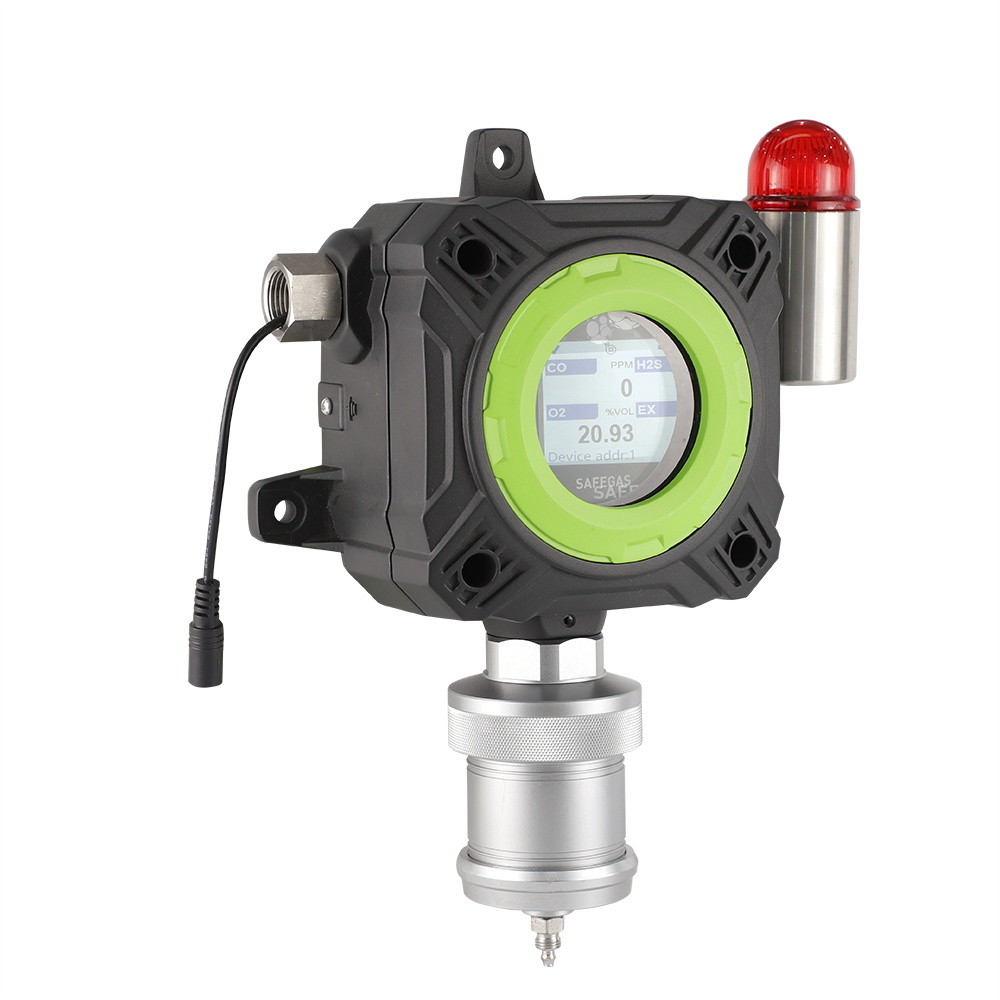

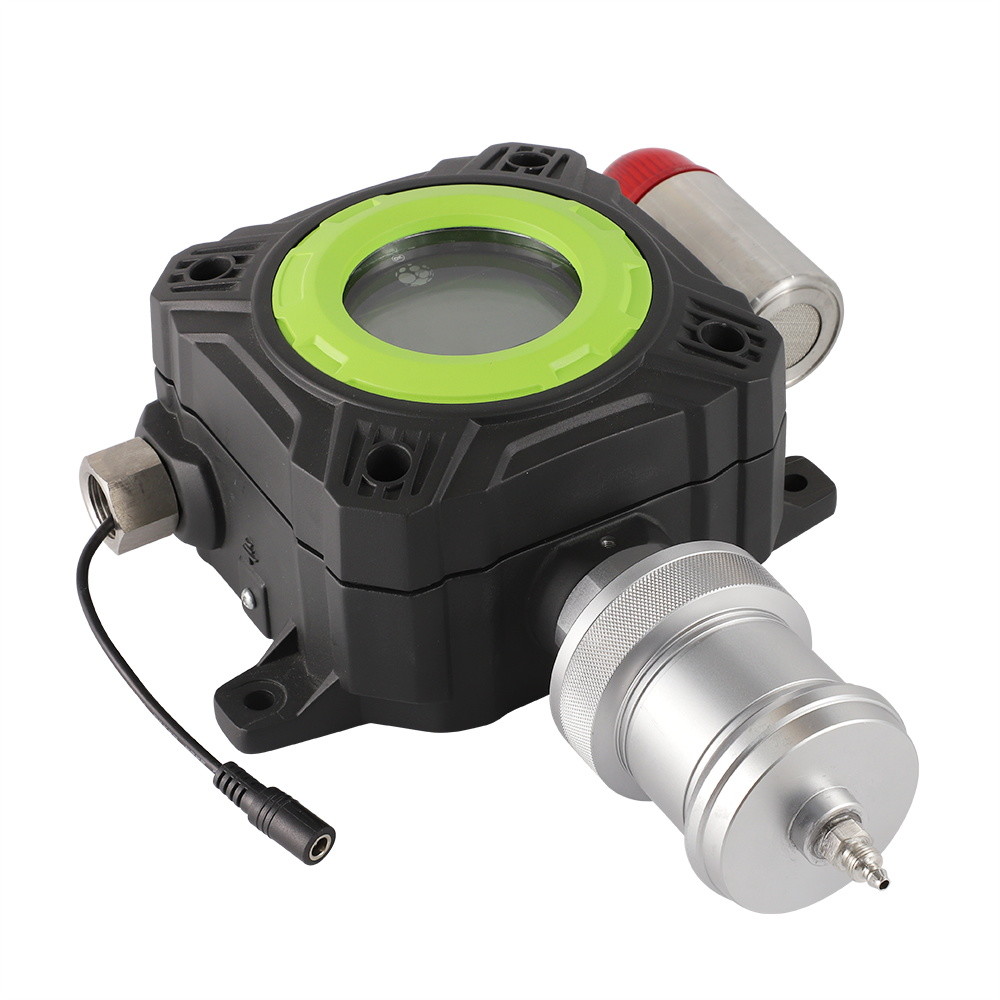

Stationary 4 In 1 Multi Gas Detector Pump Suction With Alarm Light For Human Protection

Basic Information
Place of Origin: China
Brand Name: SZYUANTE
Certification: IECEX/ATEX/CE
Model Number: YT-98H-A
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, Credit Card
Supply Ability: 100 pieces/week
Detail Information
Model Number: YT-98H-A Detected Gas: Customized
Sensor Principle: Customized Measure Range: Customized
Resolution: Customized Install Method: Wall-mounted, Piping Type, Flow-type
Power Supply: 24V DC Gross Weight: 5 KG
Product Size: 286*202*96mm Warranty: 12 Month
Highlight:

4In1 Multi Gas Detector

,

Stationary Multi Gas Detector


Product Description

Stationary 4 in 1 multi gas detector gas meter pump suction with alarm light




Company profile

Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.



What is our advantage

1.Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants, etc. We are the first and only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited to be used in hazardous areas.


2.As our core components, IC or sensors are used imported brands such as Honeywell, CITY and Alpha, etc., which make our products with high precision and stabilize the life of the products. It ensures the accuracy of detection and escorts the life safety of customers.



3. Our complete product line and stable inventory provide customers with fast delivery time. We can ship it out within 3 days for the quantity of less than 10 pieces. Even for the mass production of 100 pieces, we can complete within half a month.



Product Overview



YT-98H/YT-98H-A series is a built-in pump-suction single & multi gas detector, which can detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas,
Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART, Modbus protocols, making it compatible with most control systems. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.




Product advantages

  1. With internal suction pump, fast response
  2. Up to 6 kinds of gases can be detected at the same time. In complex and multi-gas environments, multiple installations can be reduced, saving time and effort.
  3. 2.4-inch industrial-grade high-definition color screen with a resolution of 320*240 and a wide viewing angle of 120 degrees.
  4. With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other
  5. Platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers. (optional)
  6. With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable.
  7. Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output
  8. Standard infrared remote control, which can remotely control the detector and modify the detector settings.
  9. With sound and light alarm function, there is sound and light alarm when reaching the alarm point. (optional)

Stationary 4 In 1 Multi Gas Detector Pump Suction With Alarm Light For Human Protection 0



Specification

Gas detected Customrized
Detection principle Customrized
Install method Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range Customrized
Resolution Customrized
Precision ± 3% FS
Signal output 4-20mA, 0-5V, RS485, relay(optional)
Response time ≤10S Recovery time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(FS/year) Display
2.4 inch color display, resolution 320*240
Wireless output (optional):
Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)
Unit ppm, mg/m³, %vol
Temperature -20 to 50°C Humidity 0-95%RH
Explosion-proof Ex db ⅡC T6 Gb Degree of protection IP66
Alarm Sound, light
Language:
Chinese / English
Dimensions
(H x W x D) 320*210*110mm
Weight 3.4kg









The internal structure of YT-98H







Stationary 4 In 1 Multi Gas Detector Pump Suction With Alarm Light For Human Protection 1

Stationary 4 In 1 Multi Gas Detector Pump Suction With Alarm Light For Human Protection 2





More Application:



  • Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,
  • Health Care, Foodstuff, Antiseptic.
  • Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
  • Livestock Farm, Refuse Processing Plant, Perm Place.
  • Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,
  • Brewing And Fermentation, Agricultural Production.
