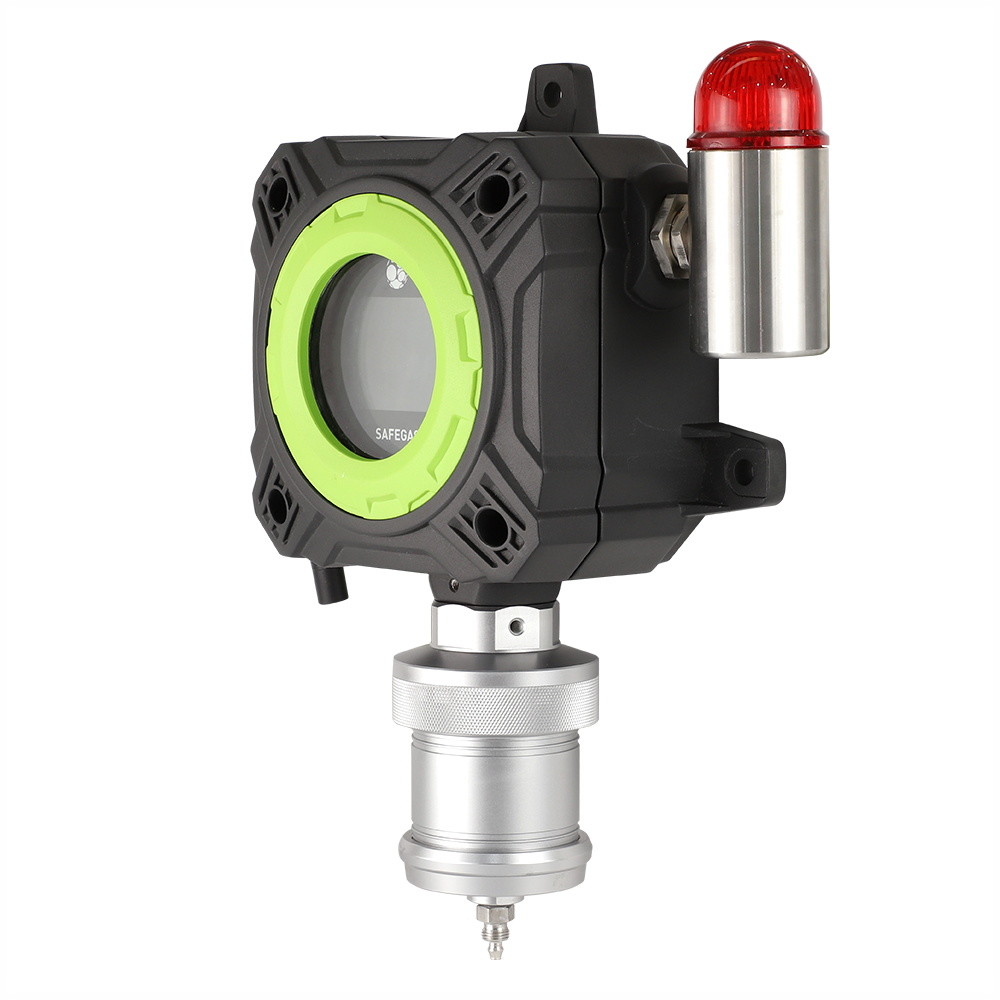

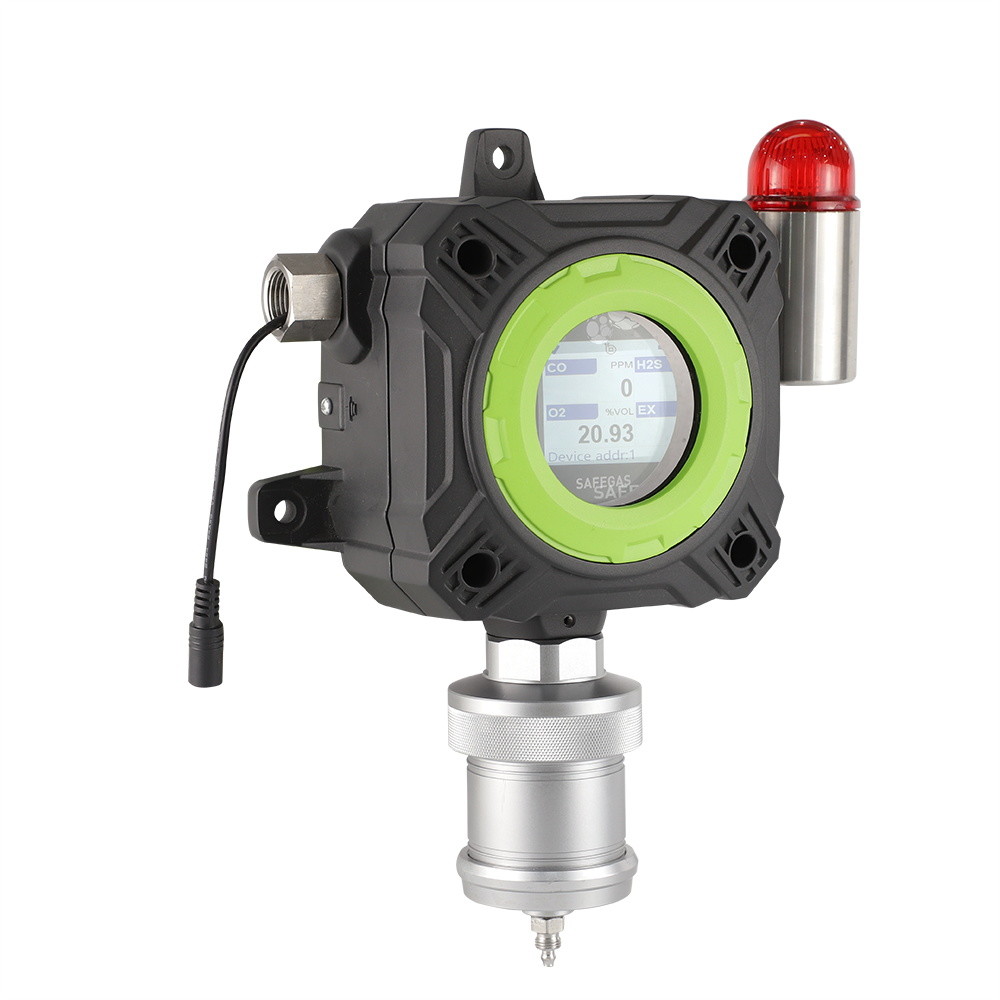

Name: 24h Continuous Gas Leak Detecor Wall Mounted With Alarm Light Support 4-20mA RS485
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-98H-A
Price: 2,137.00 USD
Availability: InStock

Detail Information

Model Number:	YT-98H-A	Detected Gas:	Customized
Sensor Principle:	Infrared	Measure Range:	Customized
Resolution:	Customized	Install Method:	Wall-mounted, Piping Type, Flow-type
Power Supply:	24V DC	Gross Weight:	5 KG
Product Size:	28620296mm	Warranty:	12 Month
Highlight:	24h Continuous Gas Leak Detecor , Gas Leak Detecor Wall Mounted , Gas Leak Detecor With Alarm Light

Product Description

24h Continuous Gas Detecor Wall-Mounted Type with Alarm Light Support 4-20mA RS485

Company profile

Our company Safegas is the leading manufacture of gas detector in China. We focuses on the design, production and sales of gas detection equipment and system for 13 years.

The best advantages of our products is that we have obtained IECEX/ATEX/EMC international explosion-proof certifications, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.

All sensor(main parts of detector) we use are imported from international brands, like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.

Product Overview

YT-98H/YT-98H-A series is a built-in pump-suction single & multi gas detector, which can detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas,

Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays.

24h Continuous Gas Leak Detecor Wall Mounted With Alarm Light Support 4-20mA RS485 0

Specification

Gas detected	Customizable
Detection principle	Electrochemistry, Infrared, catalytic combustion
Install method	Wall-mounted, piping type, flow-type (according to the detected environment)
Measure range	Customrized
Resolution	Customrized
Precision	± 3% FS
Signal output	4-20mA, 0-5V, RS485, relay(optional)
Response time	≤10S	Recovery time	≤10S
Repeatability	≤±1%	Linearity error	≤±1%
Zero shift	≤±1%(FS/year)	Display	2.4 inch color display, resolution 320*240
Wireless output (optional):	Wireless transmission function, provide SMS Alert, can upload data to the platforms, and transmit signals without distance limitation(optional)	Unit	ppm, mg/m³, %vol
Temperature	-20 to 50°C	Humidity	0-95%RH
Explosion-proof	Ex db ⅡC T6 Gb	Degree of protection	IP66
Alarm	Sound, light	Language:	Chinese / English
Dimensions	(H x W x D) 320210110mm	Weight	3.4kg

YT-98H-A Product advantages

With internal suction pump, fast response
In complex and multi-gas environments, multiple installations can be reduced, saving time and effort
2.4-inch industrial-grade high-definition color screen with a resolution of 320*240 and a wide viewing angle of 120 degrees
Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output

The internal structure of YT-98H

24h Continuous Gas Leak Detecor Wall Mounted With Alarm Light Support 4-20mA RS485 1

24h Continuous Gas Leak Detecor Wall Mounted With Alarm Light Support 4-20mA RS485 2

More Application:

Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,
Health Care, Foodstuff, Antiseptic.
Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
Livestock Farm, Refuse Processing Plant, Perm Place.
Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,
Brewing And Fermentation, Agricultural Production.

Tag:

Place of Origin:	China
Brand Name:	SZYUANTE
Certification:	IECEX/ATEX/CE
Model Number:	YT-98H-A

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	3-5 working days
Payment Terms:	T/T, Western Union, Credit Card
Supply Ability:	100 pieces/week
